Dell Precision 3430 Small Form Factor User Manual

Installing the hard drive assembly

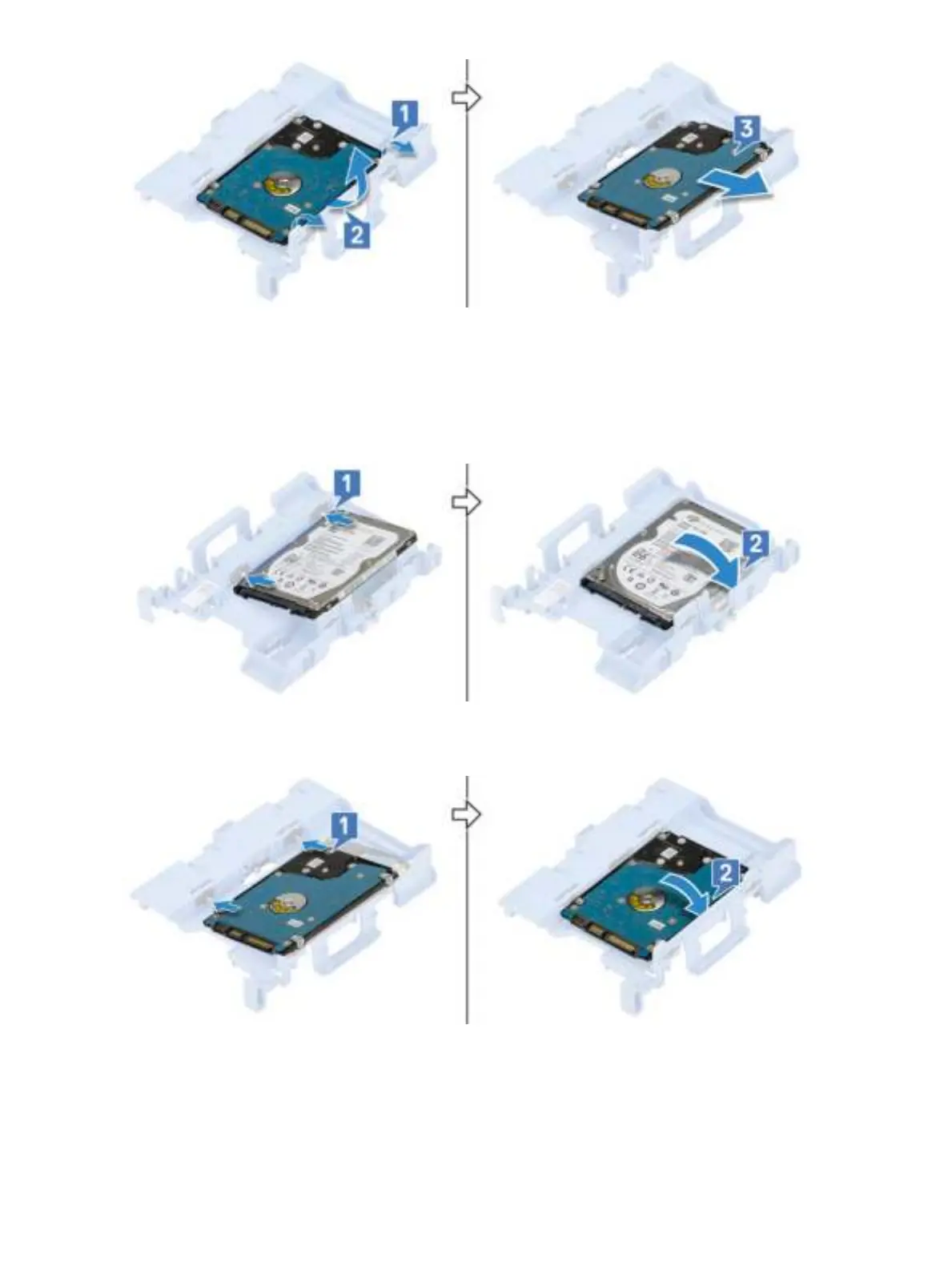

1 To replace the 2.5 inch hard drive from the assembly bracket:
a Align the tabs on the hard drive with the slots on the hard drive assembly at a 30 degree angle [1].
b Press the hard drive so that it gets secured to the hard drive assembly bracket [2].
2 To replace the 3.5 inch hard drive from the assembly bracket:
a Align the tabs on the hard drive with the slots on the hard drive assembly at a 30 degree angle [1].
b Press the hard drive so that it gets secured to the hard drive assembly bracket [2].
3 To replace the hard drive assembly:
a Insert the hard drive assembly into the slot on the system [1,2].
b Connect the power cable and hard drive cable to the connectors on the hard drive [3,4].
Removing and Installing components 25
