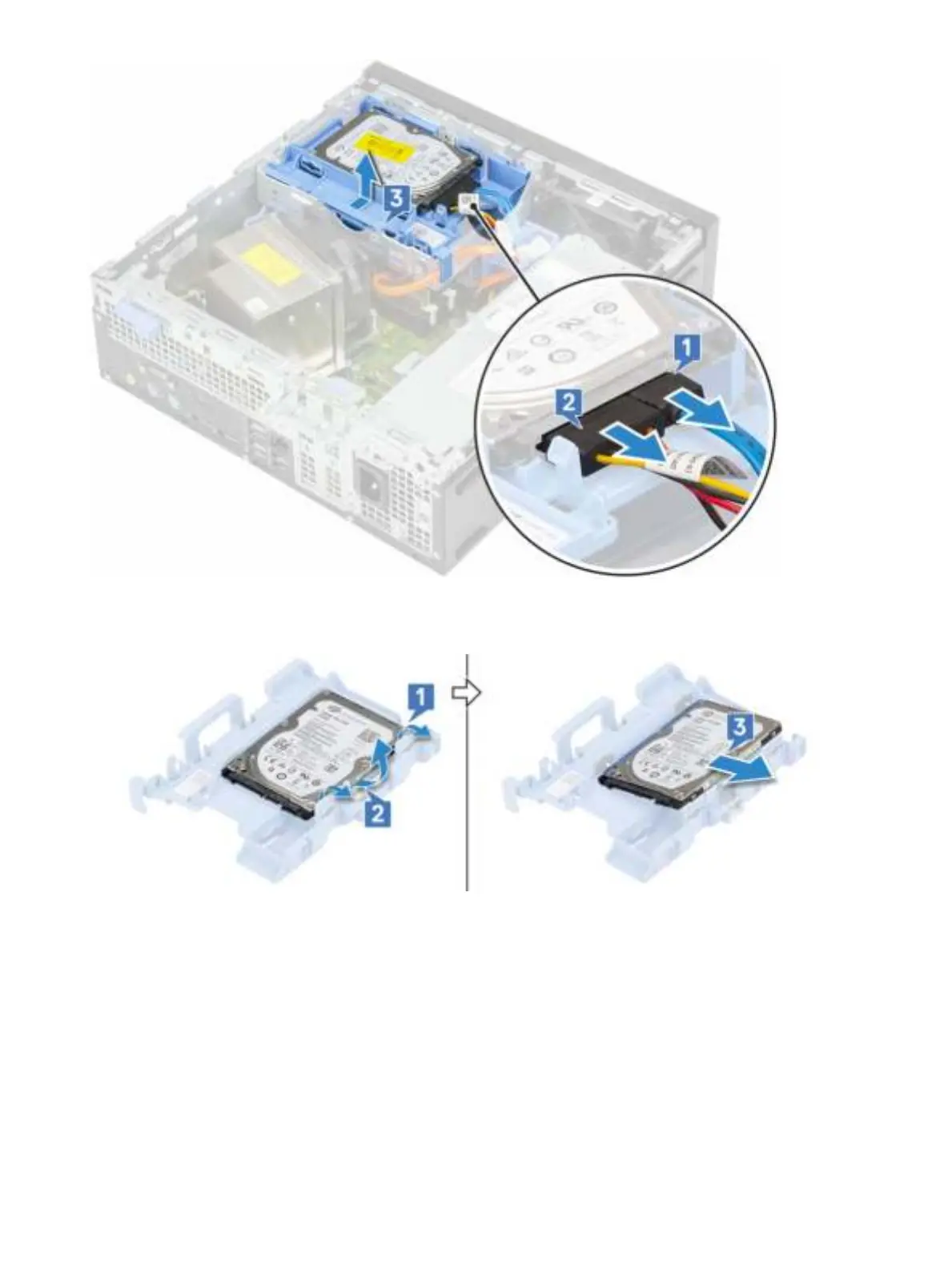

4 To remove the 2.5 inch hard drive from the assembly bracket:
a Pull one side of the hard drive bracket to disengage the pins on the bracket from the slots on the hard drive [1,2].
b Lift the hard drive out of the hard drive bracket [3].
5 To remove the 3.5 inch hard drive from the assembly bracket:
a Pull one side of the hard drive bracket to disengage the pins on the bracket from the slots on the hard drive [1,2].
b Lift the hard drive out of the hard drive bracket [3].
24 Removing and Installing components
