Dell Precision 3430 Small Form Factor User Manual

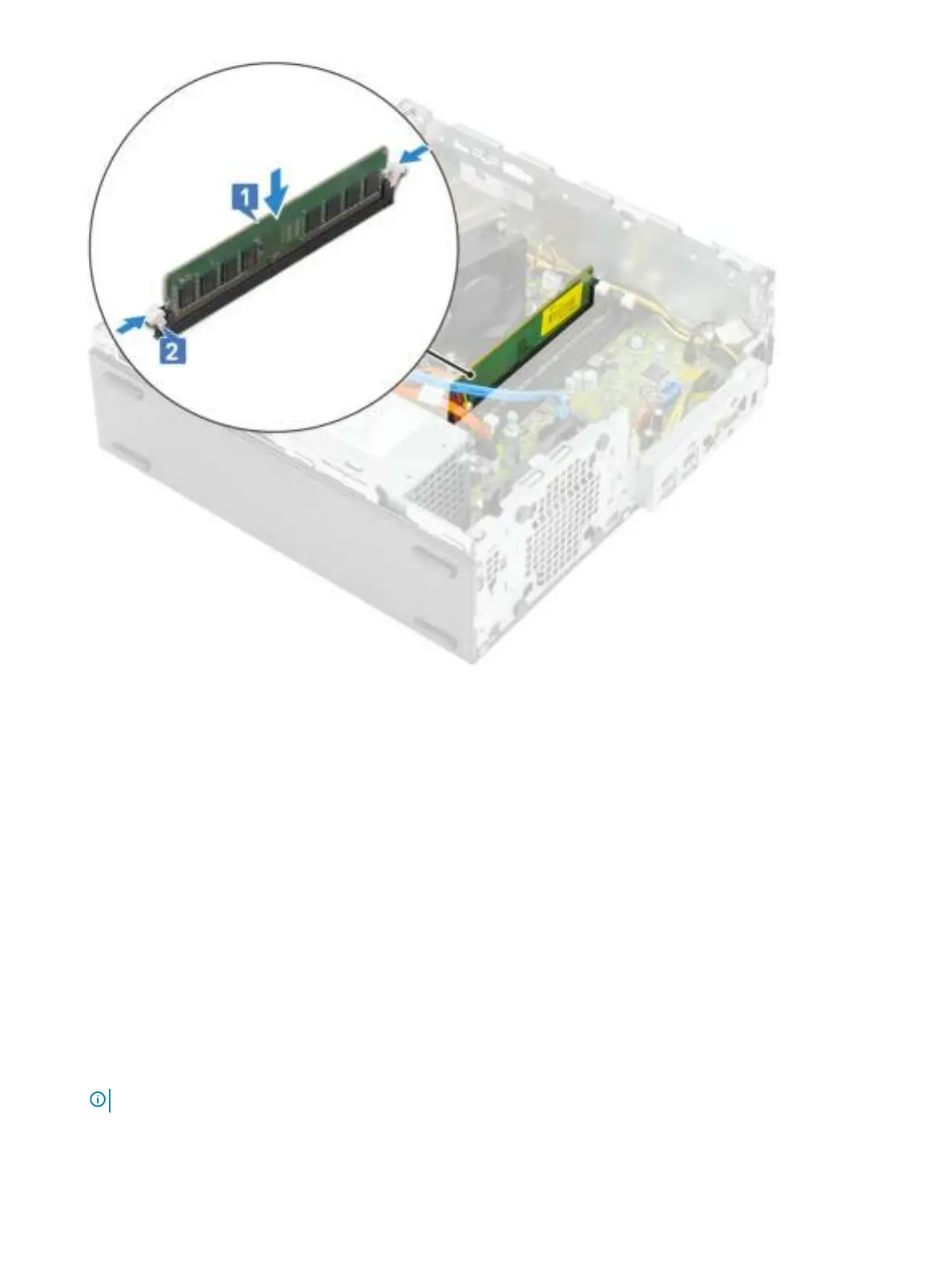

4 Install the:
a
Hard drive and optical drive module
b Front bezel
c Side cover
5 Follow the procedure in After working inside your computer.
Heat sink and fan
Removing heat sink and heat sink fan
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a
Side cover
b Front bezel
c Hard drive and optical drive module
3 To remove the heat sink with fan:
a Disconnect the heat sink fan cable from the system board [1].
b Loosen the 4 captive screws that secure the heat sink [2] and lift it away from the system [3].
NOTE: Loosen the screws in a sequential order (1,2,3,4) as mentioned on the system board.
Removing and Installing components 41
