Installing the M.2 2230 WLAN card

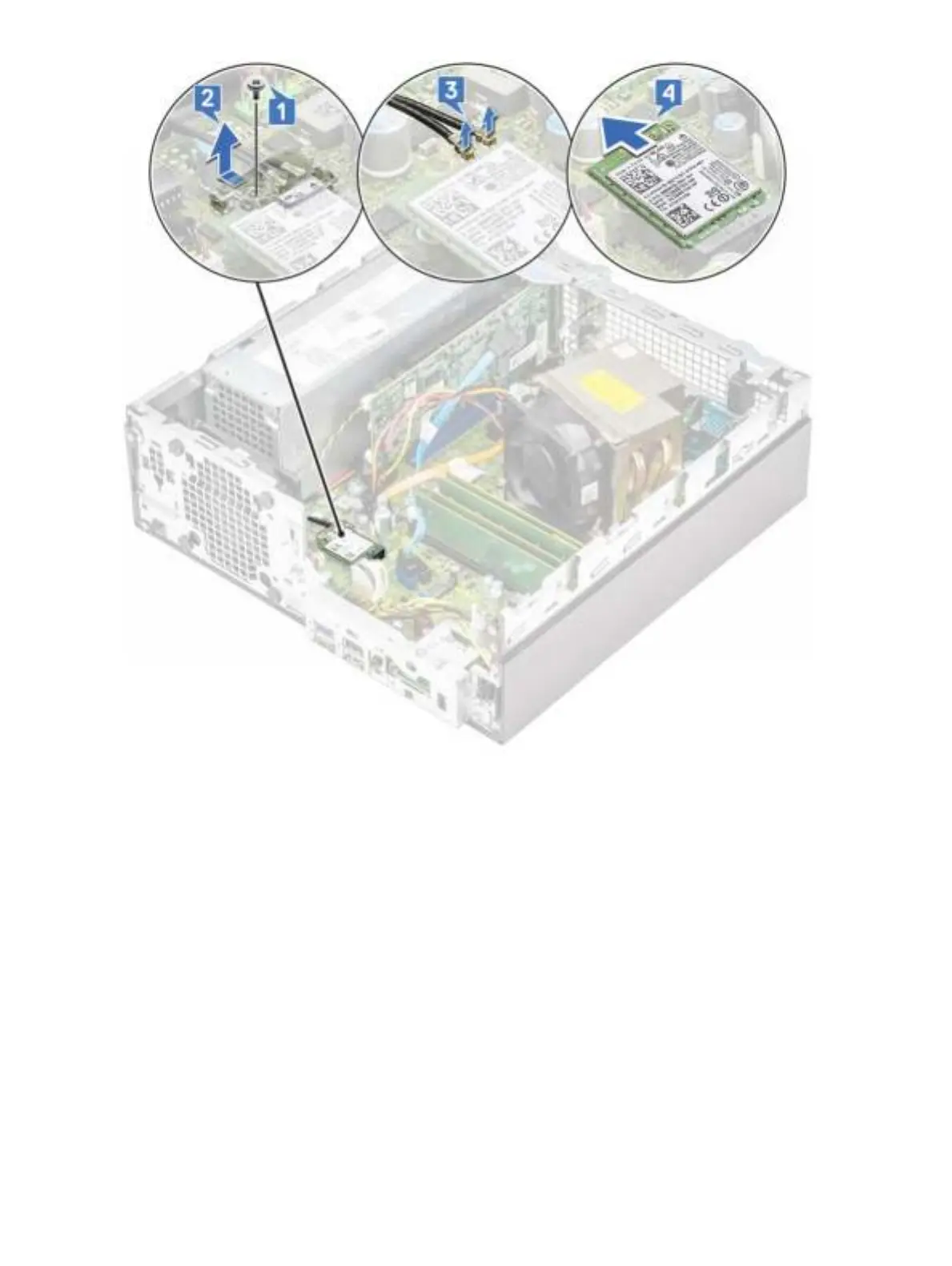

1 To install the M.2 2230 WLAN card:
a Align and replace the WLAN card into the WLAN card slot [1].
b Connect the antenna cables to the WLAN card [2].
c Replace the WLAN card bracket on the WLAN card [3].
d Replace the screw (M2) that secures the WLAN card bracket and the WLAN to the system board [4].
