Installing the hard drive and optical drive module

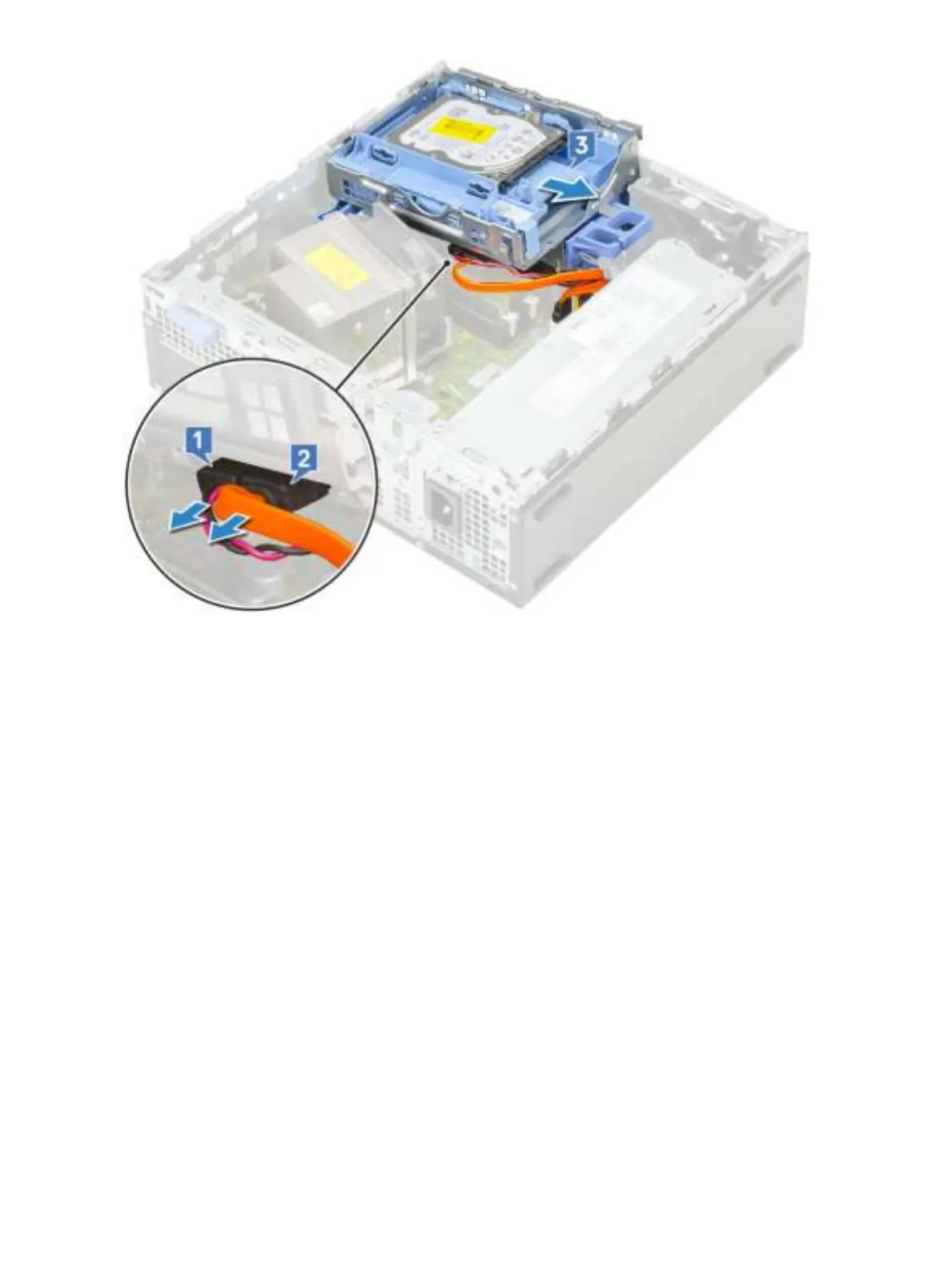

1 Insert the tabs on the hard drive and optical drive module into the slot on the system at a 30 degree angle [1].
2 Connect the optical drive data cable and power cable to the connectors on the optical drive [2, 3].
3 Lower the hard drive and optical drive module so that it is placed in its slot [4].
30 Removing and Installing components
