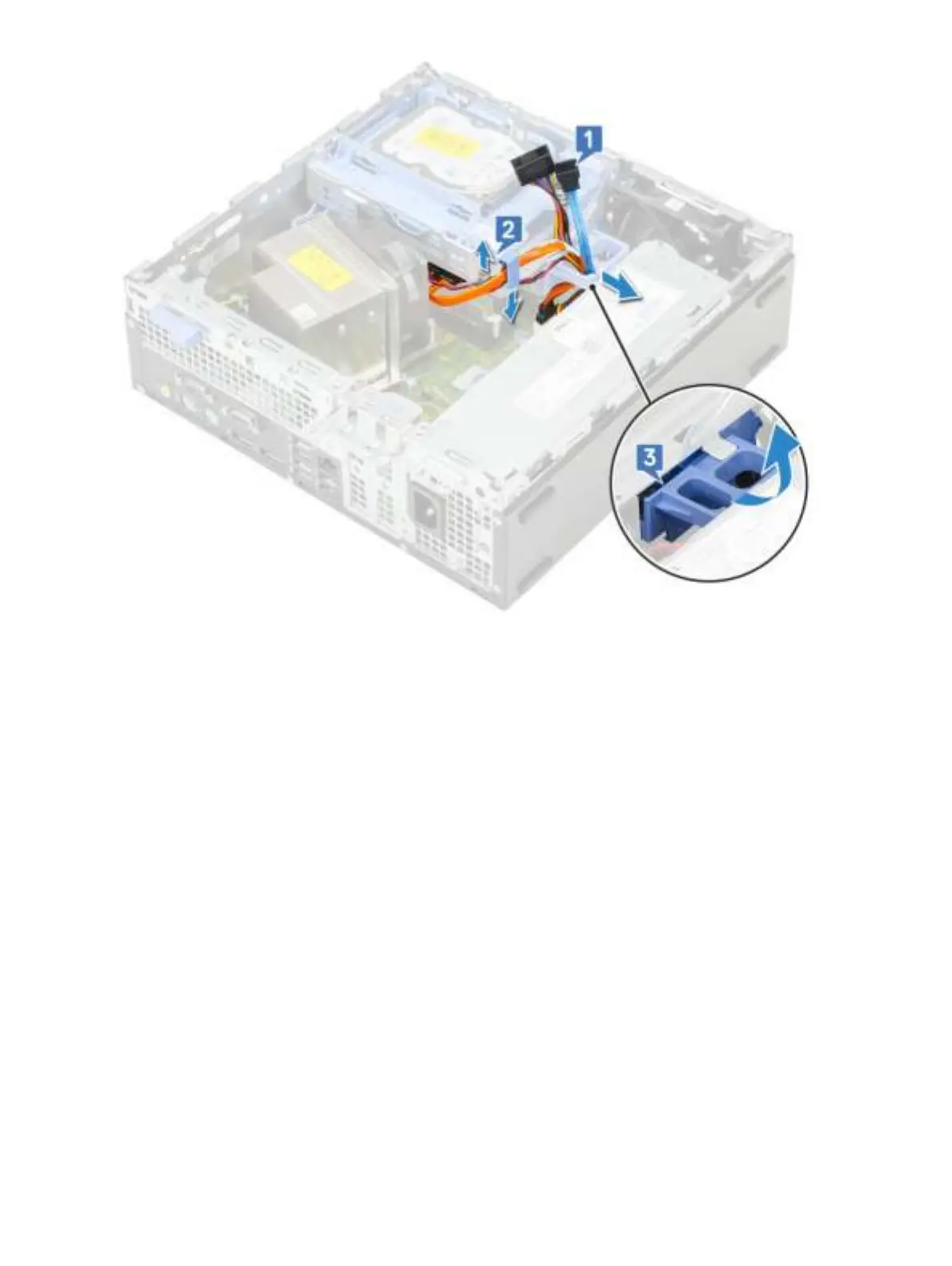

4 To remove the hard drive and optical drive module:
a Disconnect the optical drive data cable and optical drive power cable from the connectors on the optical drive [1, 2].
b Slide and lift the hard drive and optical drive module from the system [3].
Removing and Installing components 29
