4 Install the:
a
Hard drive and optical drive module
b Front bezel
c Side cover
5 Follow the procedure in After working inside your computer.
Intel Optane card
Removing the Intel Optane card
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a
Side cover
b Front bezel
c Hard drive and optical drive module

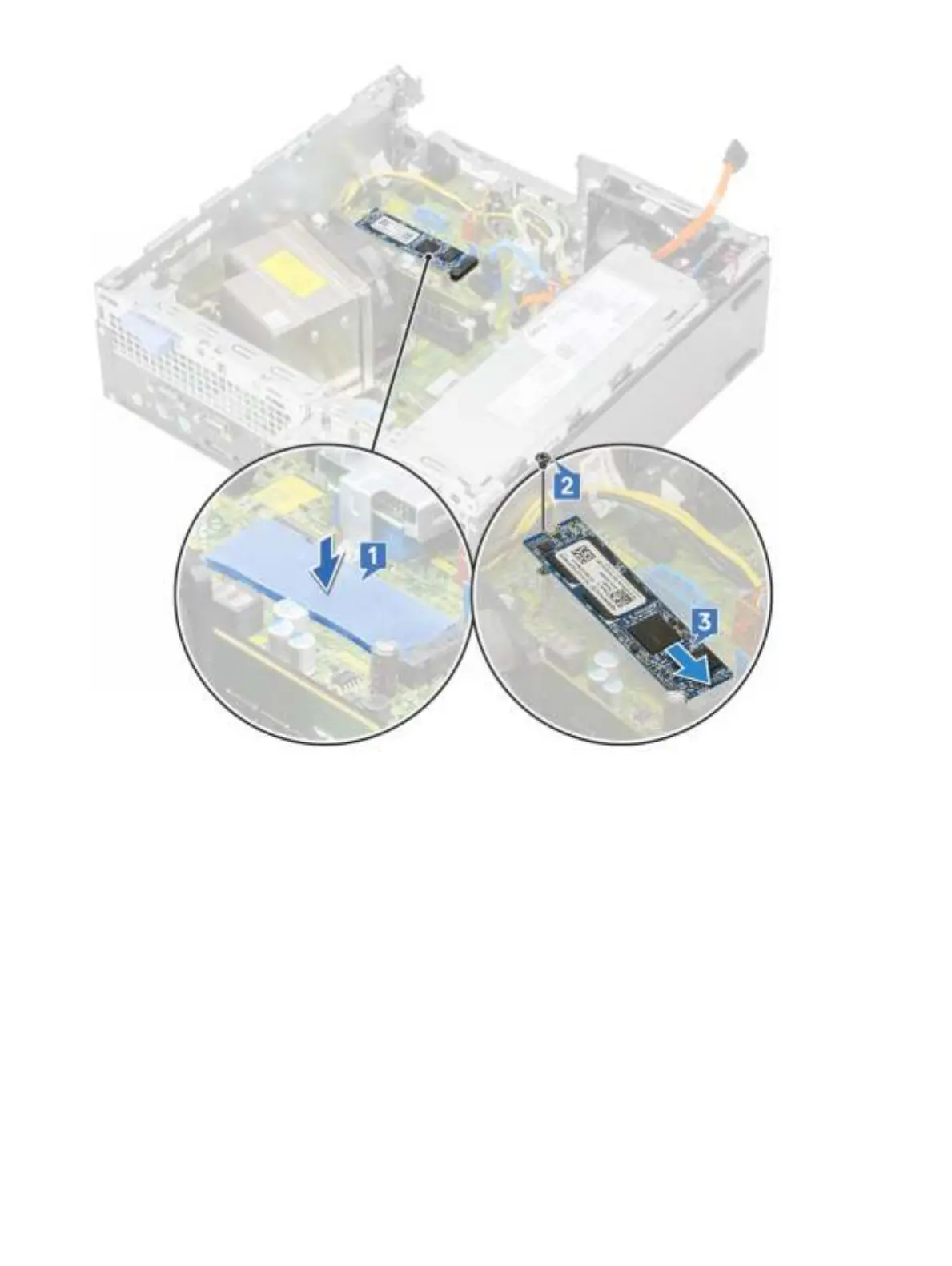

3 To remove the Intel Optane card:
a Remove the single (M2 x 3.5) screw that secures the Intel Optane card to the system board [1].
Removing and Installing components 51
