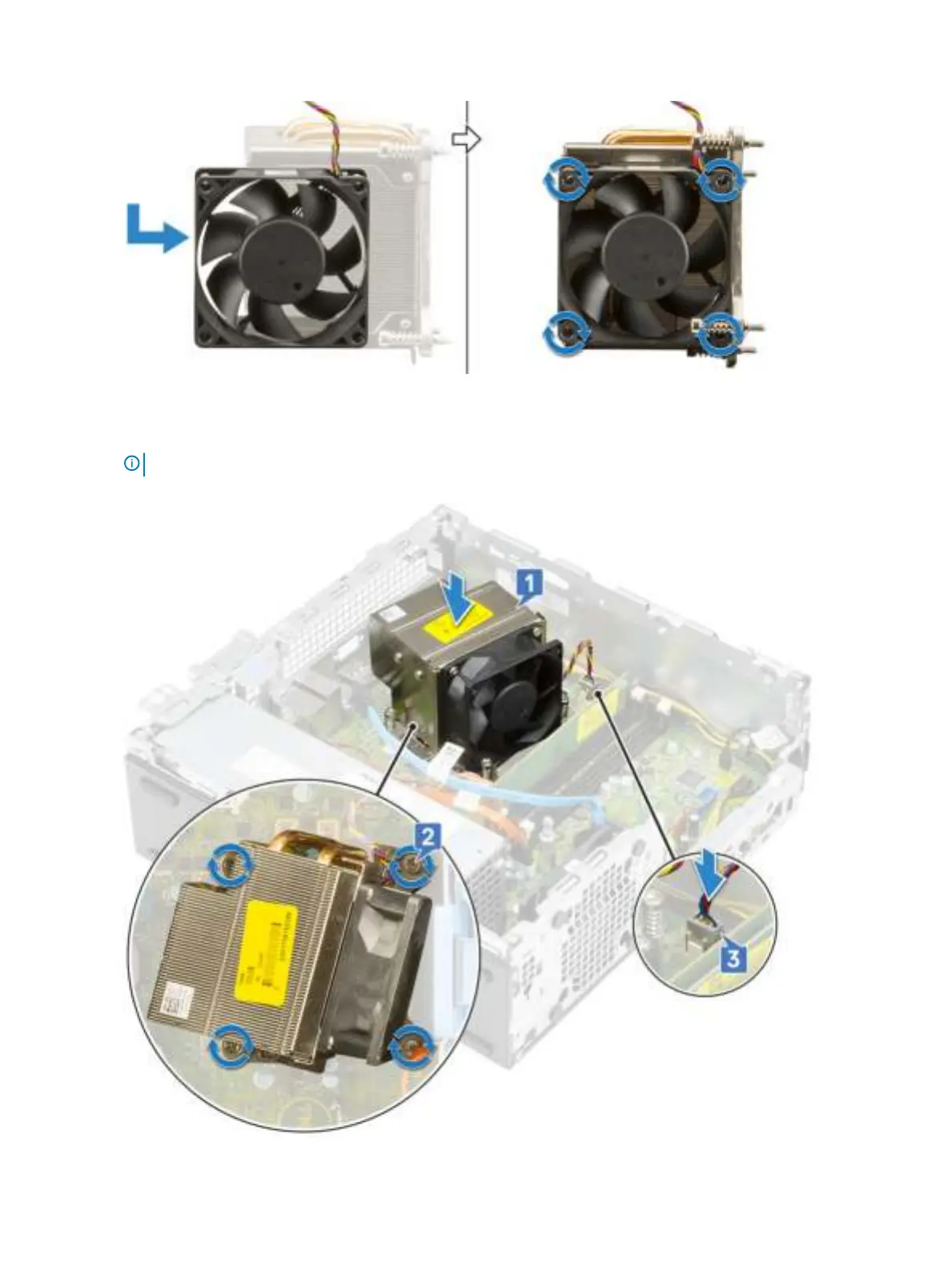

a Align and place the slots on the fan to the slots on the heat sink module.
b Replace the four screws to secure the heat sink fan to the heat sink.
2 To replace the heat sink:
a Align the heat sink onto the processor [1].
b Tighten the 4 captive screws to secure the heat sink assembly to the system board [2].
NOTE: Tighten the screws in a sequential order (1,2,3,4) as mentioned on the system board.
c Connect the heat sink fan cable to the slot on the system board [3].
Removing and Installing components 43
