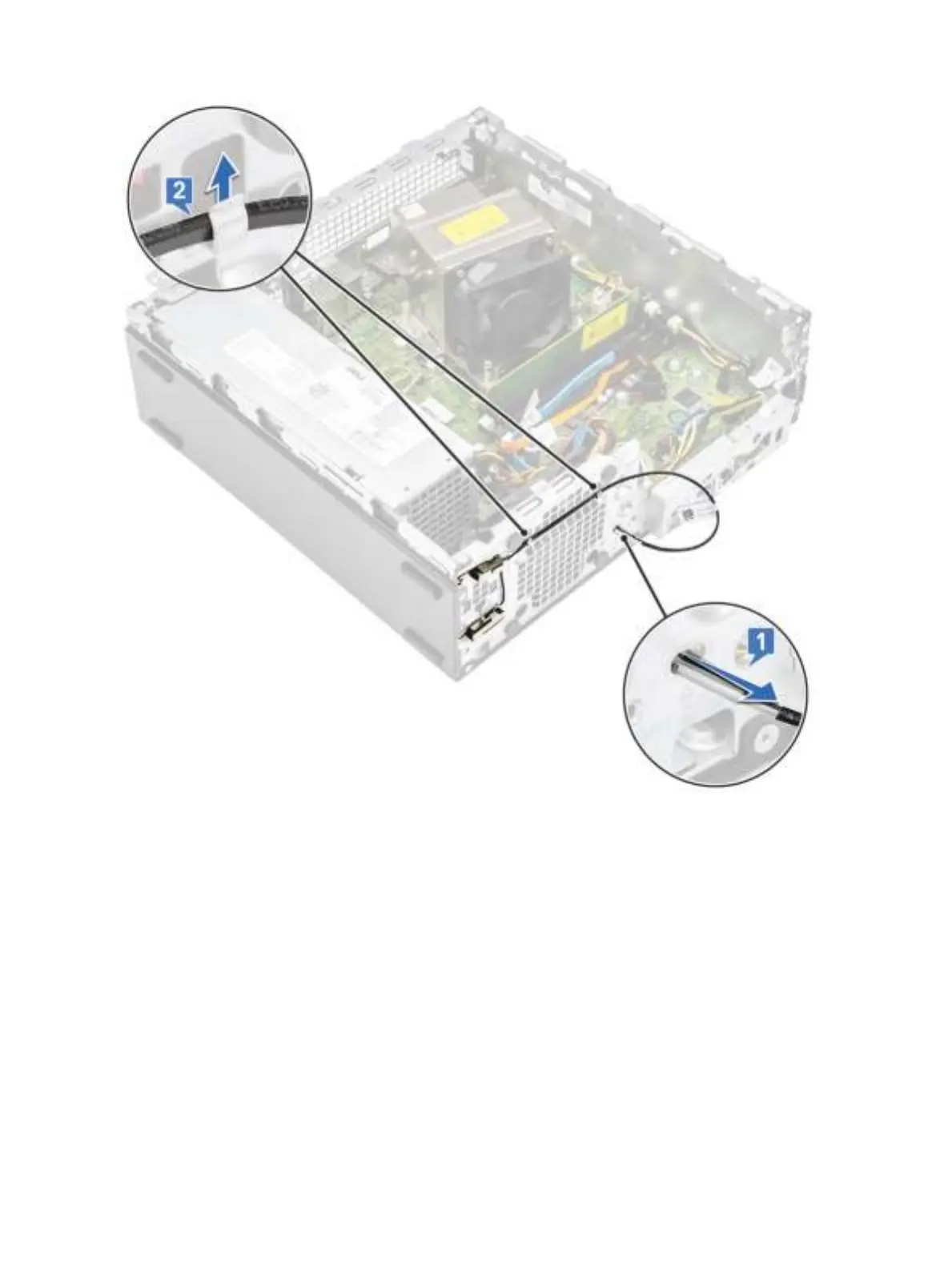

a Unroute the antenna cable from the cable hole on the chassis [1].
b Unroute the antenna cable from the two hooks on the chassis [2].
c Remove the single screw that secures the antenna to the chassis [1].
d Remove the black antenna cable from the ANT-B slot on the chassis [2,3].
56 Removing and Installing components
