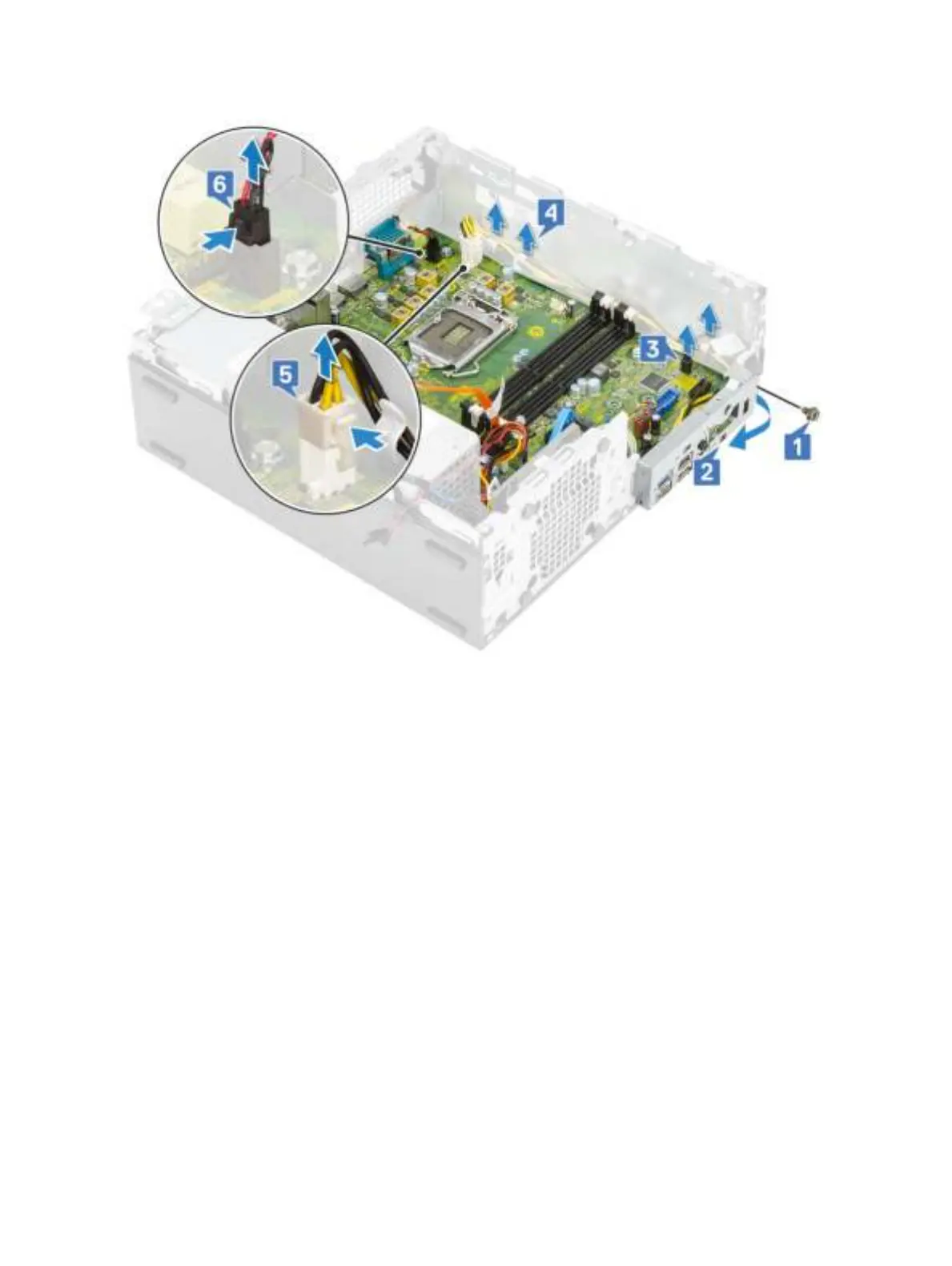

b Rotate the I/O panel and remove it from the system [2].
c Disconnect the power switch cable [3], unroute the power cable from the retention clips on the chassis [4], psu cable [5] and,
intrusion switch cable [6] from the connectors on the system board.
4 Disconnect the intrusion switch cable [1], PSU power cable [2], data cable [3], system fan cable [4], SATA cable [5], SATA power cable
[6]
