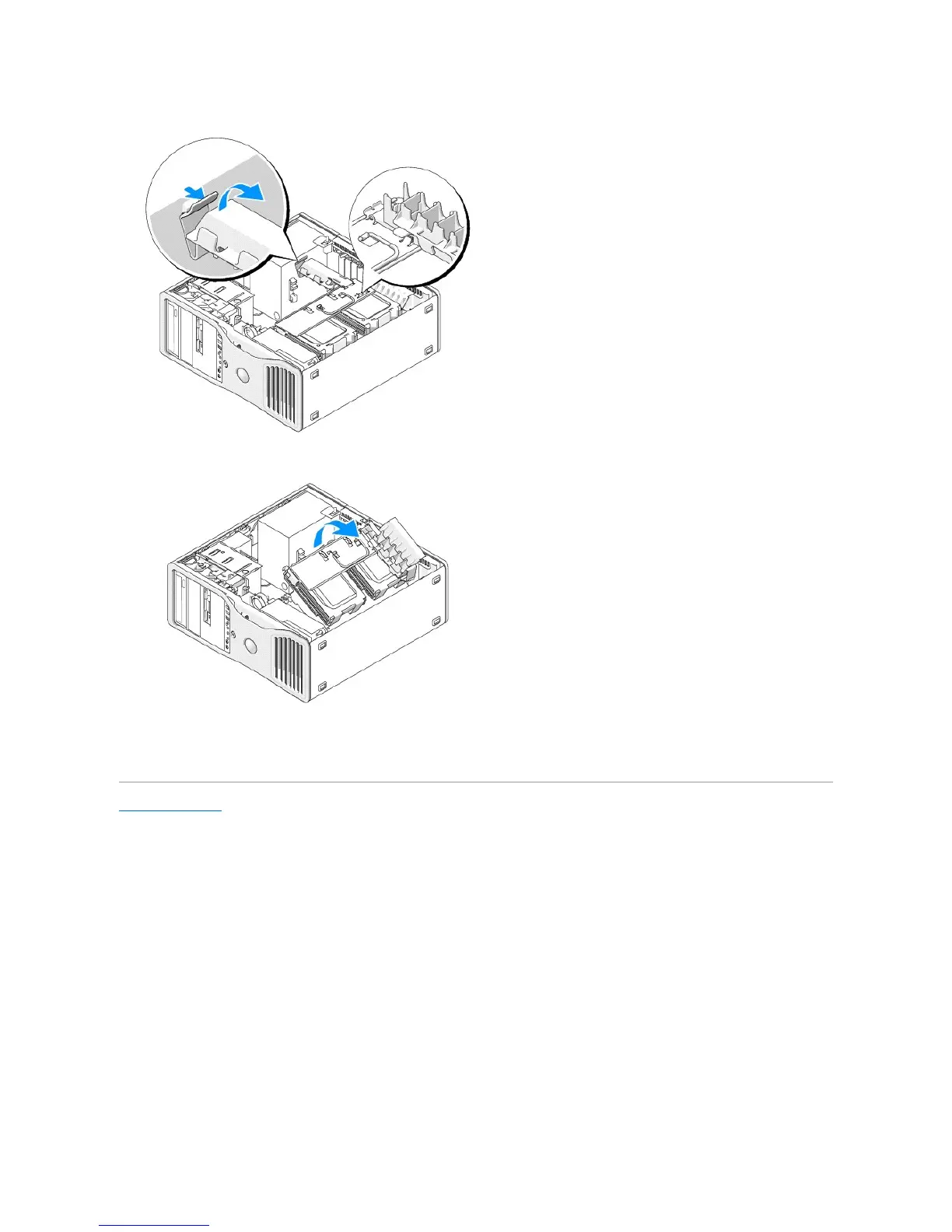

2. Press the card retention mechanism release-tab and rotate the card retention mechanism so that it rests against the rotatable hard-drive carrier.
3. Press down against the card retention mechanism until it clicks into place, locked against the hard-drive carrier.
4. Grasp the handle on the hard-drive carrier and rotate the carrier out of the chassis so that it is at an angle of less than 180 degrees from its original
position.
