Dell Precision 490 Desktop - Page 55



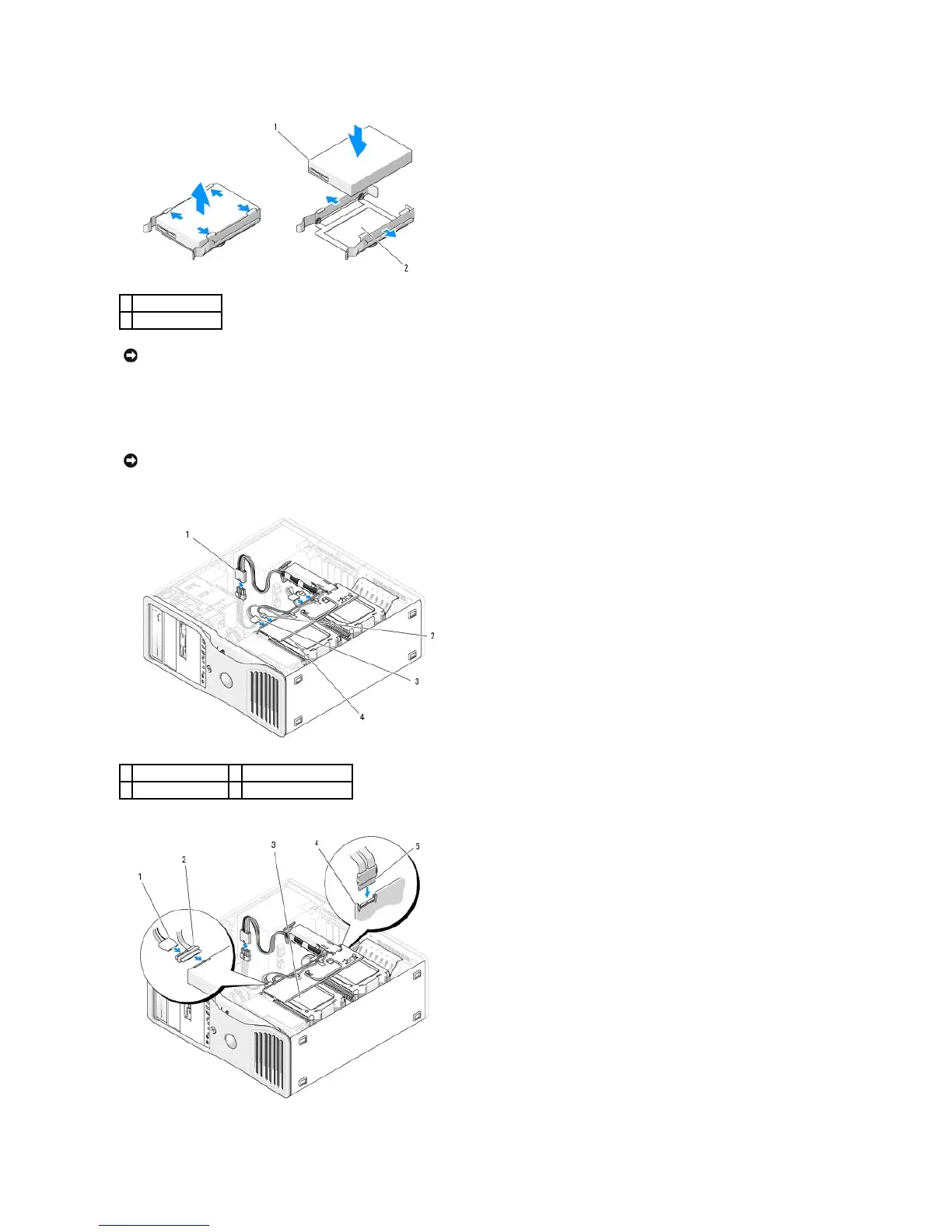

9. Slide the hard drive into the hard-drive bay until it clicks securely into place.

10. Connect a power cable to the hard drive.

11. If you are installing a SATA hard drive, connect the data cable to the hard drive.
If you are installing a SAS hard drive, connect the data cable on the SAS controller card to the hard drive.
1
drive
2
hard-drive bracket
NOTICE: SAS drives and SATA drives cannot be mixed in the rotatable hard-drive carrier. The drives in the hard-drive carrier must both be either SATA or
SAS hard drives.
NOTICE: The only SATA connectors on the board that support hard drives are those labeled SATA0, SATA1, and SATA2.
1
P3 power connector
3
hard-drive power cable
2
SATA data cable
4
hard-drive
