Starting the Application
NOTE: Before starting the application the IP address must be defined. For more
information, see
Initial Setup
.
1
Open a web browser.
2
Enter the device’s IP address in the address bar and press
<Enter>
. The
default IP address for the device is 192.168.2.1.
3 When the Log In window displays, enter a user name and password.
The default user name and password is admin/admin.
NOTE: Passwords are both case sensitive and alpha-numeric.
4
Click
OK
.
The dashboard displays. This takes about 15 seconds.
NOTE: The session times out after 10 minutes without activity.

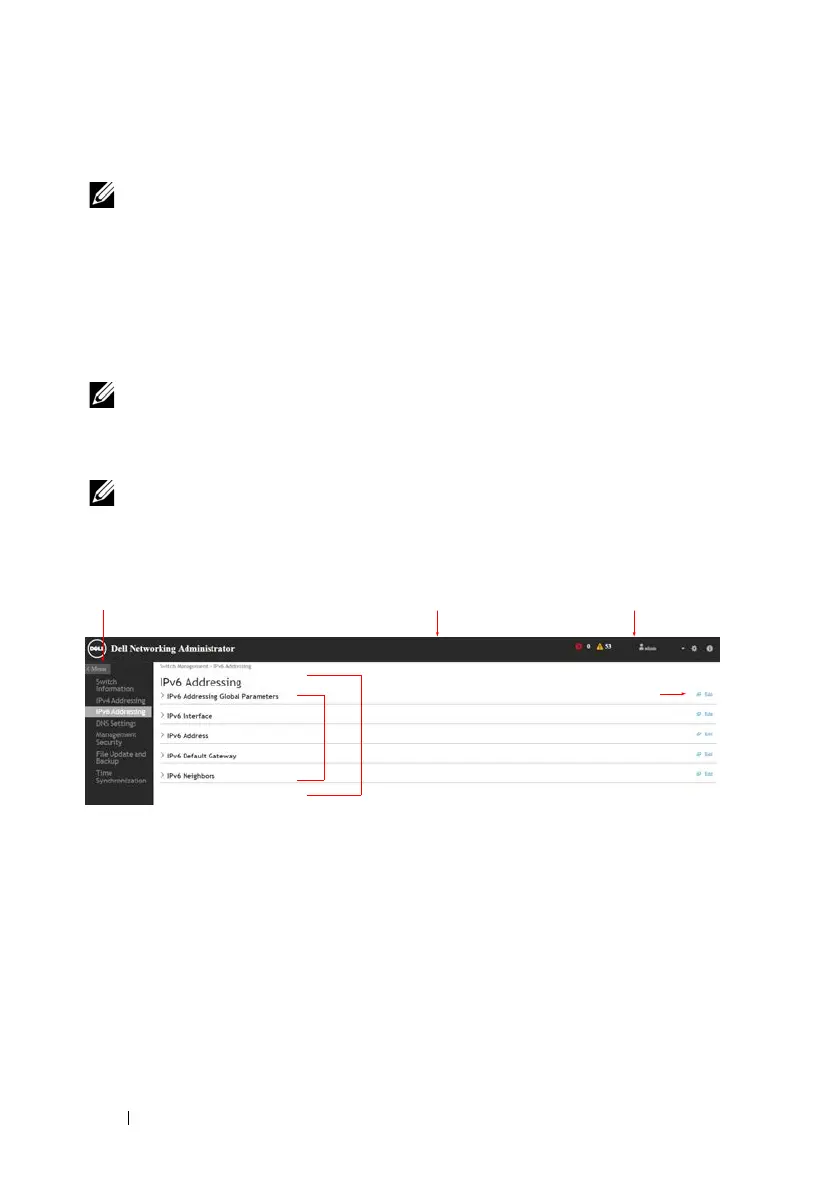

Understanding the Interface
The following describes the user workspace as seen after the user logs in:
•
Slide-in Menu
— Located on the left side of the user interface, the slide-
in menu displays the features. When clicked, the menu dynamically shows
sub-features and components associated with primary features. To view
the primary menu or to view other features, click
Menu
in the slide-in
menu.
•
Container
— Single GUI page enabling configuring of a feature or sub-
feature.
•
Page
— Collection of containers.
Slide-in
Menu
Page
Containers
Modal
Windows
Masthead
Information
Buttons
To Next Page
