Interfaces

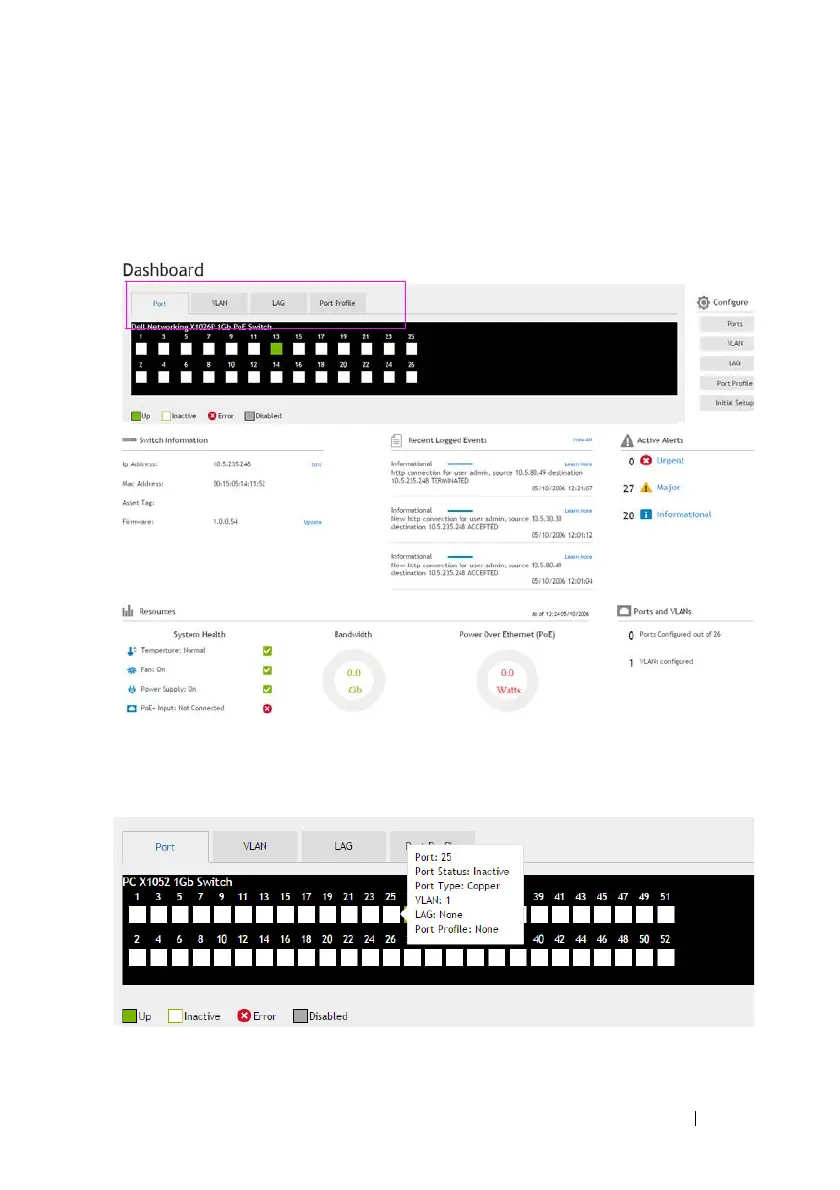

The interface buttons, as outlined in the graphic below, provides a graphic
display of the Port Status, Port Profile, VLANs and LAGs configured on the
device.
Port Tab
The ports on the device are displayed in a color that designates its status.
