Delta Electronics DUP-B Series User Manual

Chapter 4 Examples

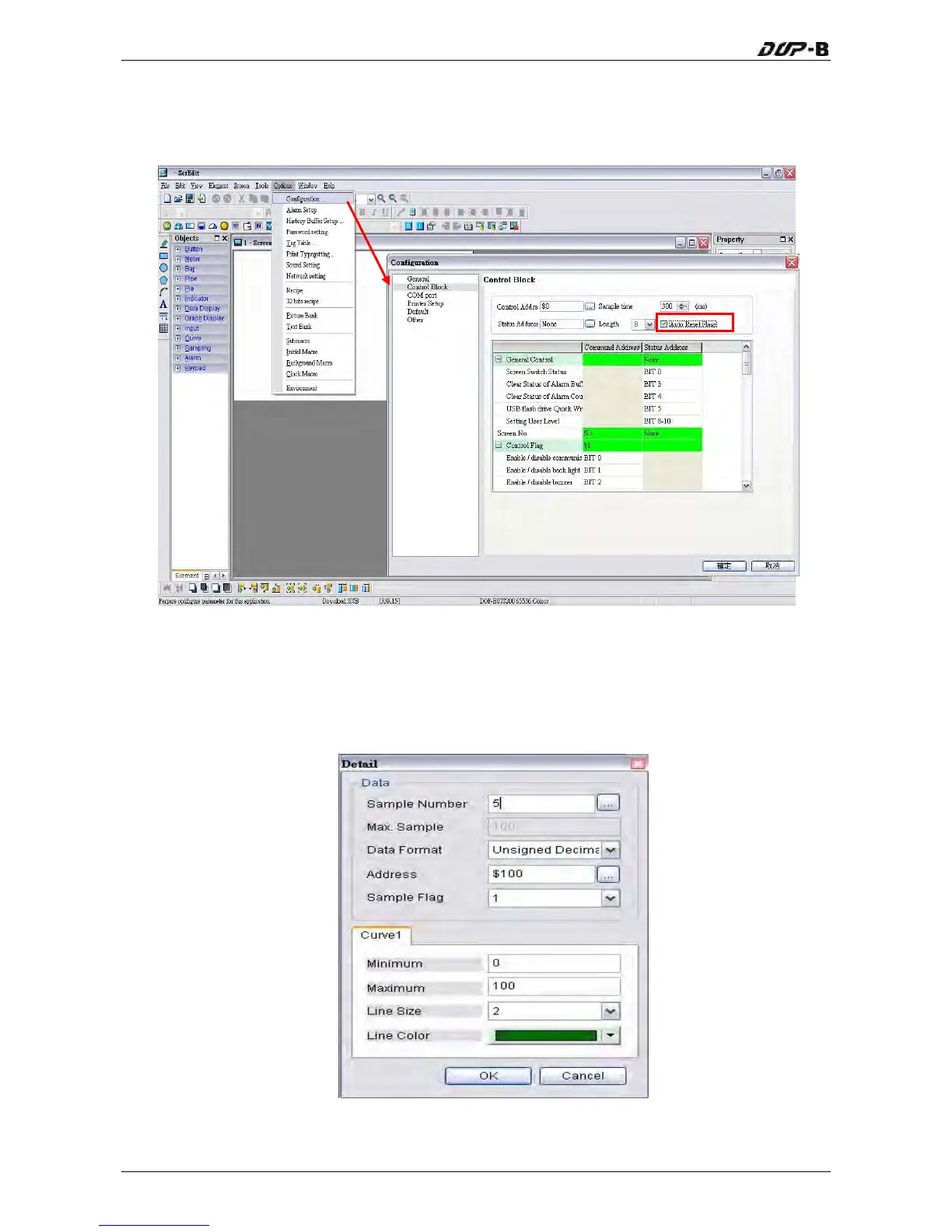

Click Options > Configuration, select Control Block tab and enable Auto reset flags function.
To control the element, in this example, Control Address is set to $0 and the Length is set to 8.
After complete the above settings, the user’s screen will look like the figure shown below.
En
sure to check the Auto reset flags box. If this box is unchecked, the user will be required to
reset the flags.
Create a trend graph element. Set the Sample Flag to 1, Sample Number to 5, and Read Address
to $100. The user’s screen will look like the figure shown below.
4-34 Revision May, 2010
