Chapter 4 Examples
As the read address is set to Internal Memory $100, the sampling point will be $100、$101、
$102、$103 and $104. When Sample Flag is set to 1, it indicates that the sampling is enabled by
the Control Block $2.0.

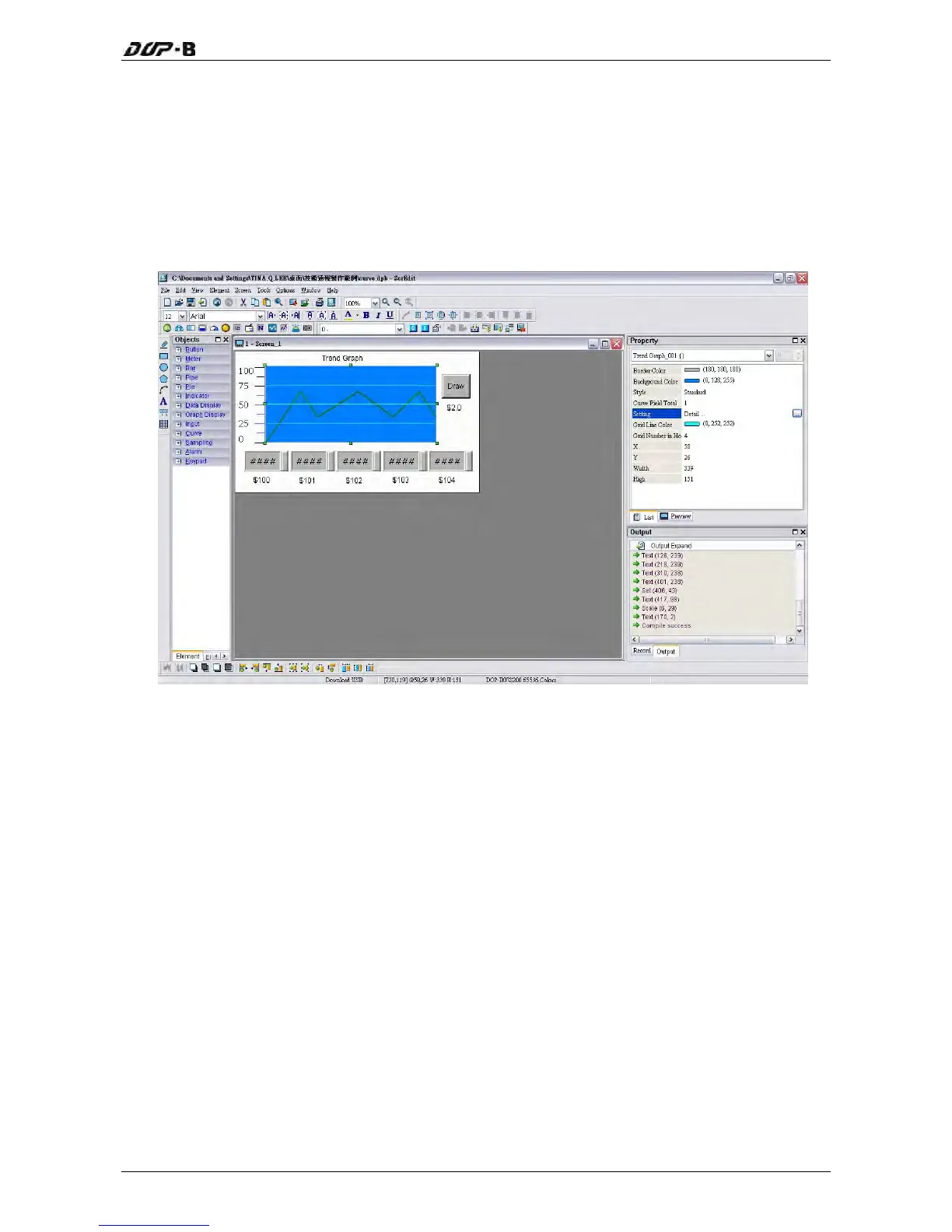

Next, create five numeric entry elements which are used to input the value into $100~$104.
Then, create a Set ON button element (Draw button) to trigger the sample flag of the trend
graph.
Click Tools > Compile command to perform Compile operation and download the screen data
into HMI.
Revision May, 2010 4-35
