Chapter 4 Examples

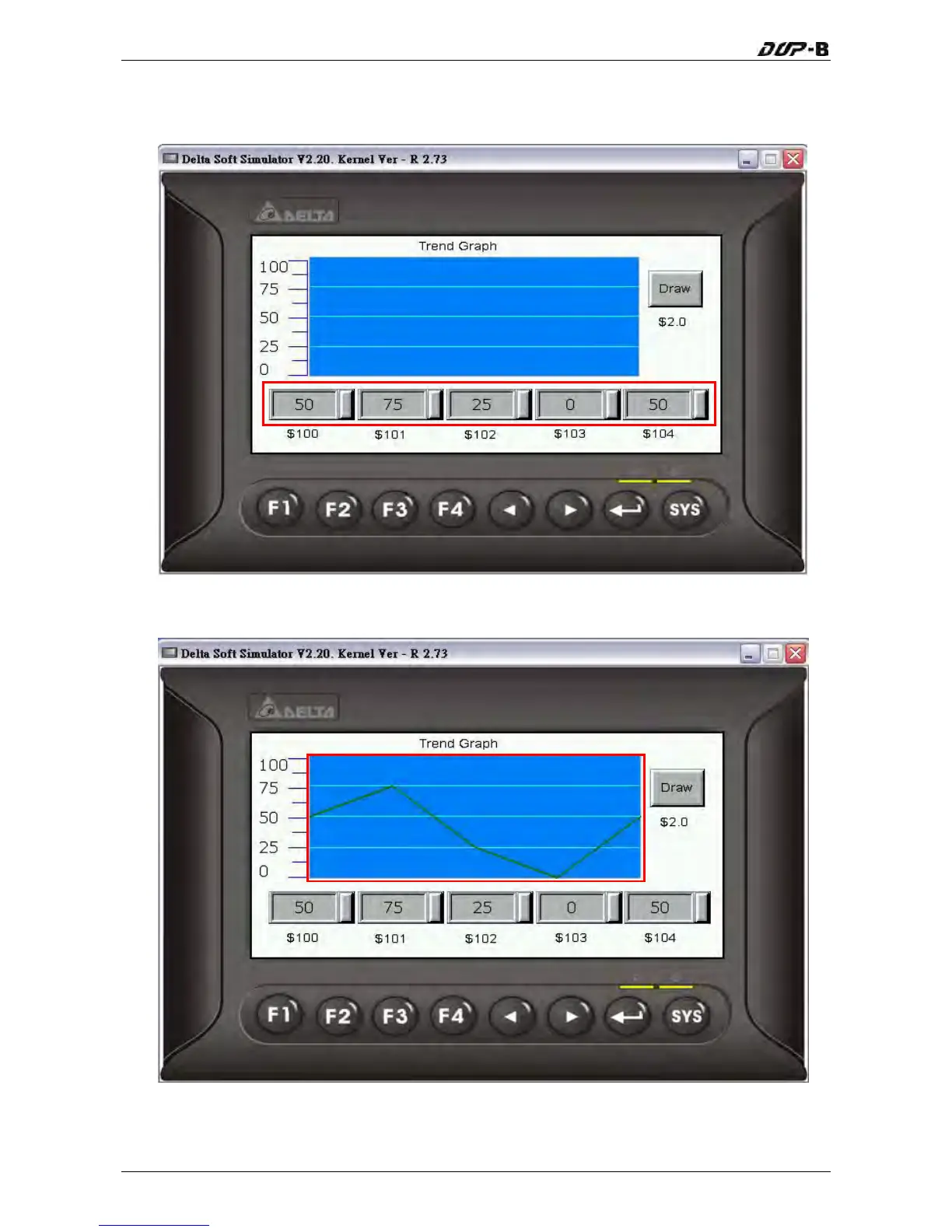

When sampling operation is performed, after the value is input into $100~$104, the HMI screen
will look like the figure below.
4-36 Revision May, 2010
Th
en, the user can press Draw button to get the Trend Graph shown in the following figure.
