Delta Electronics IFD9506 User Manual

Ethernet Communication Module IFD9506
DVP-PLC Operation Manual
55

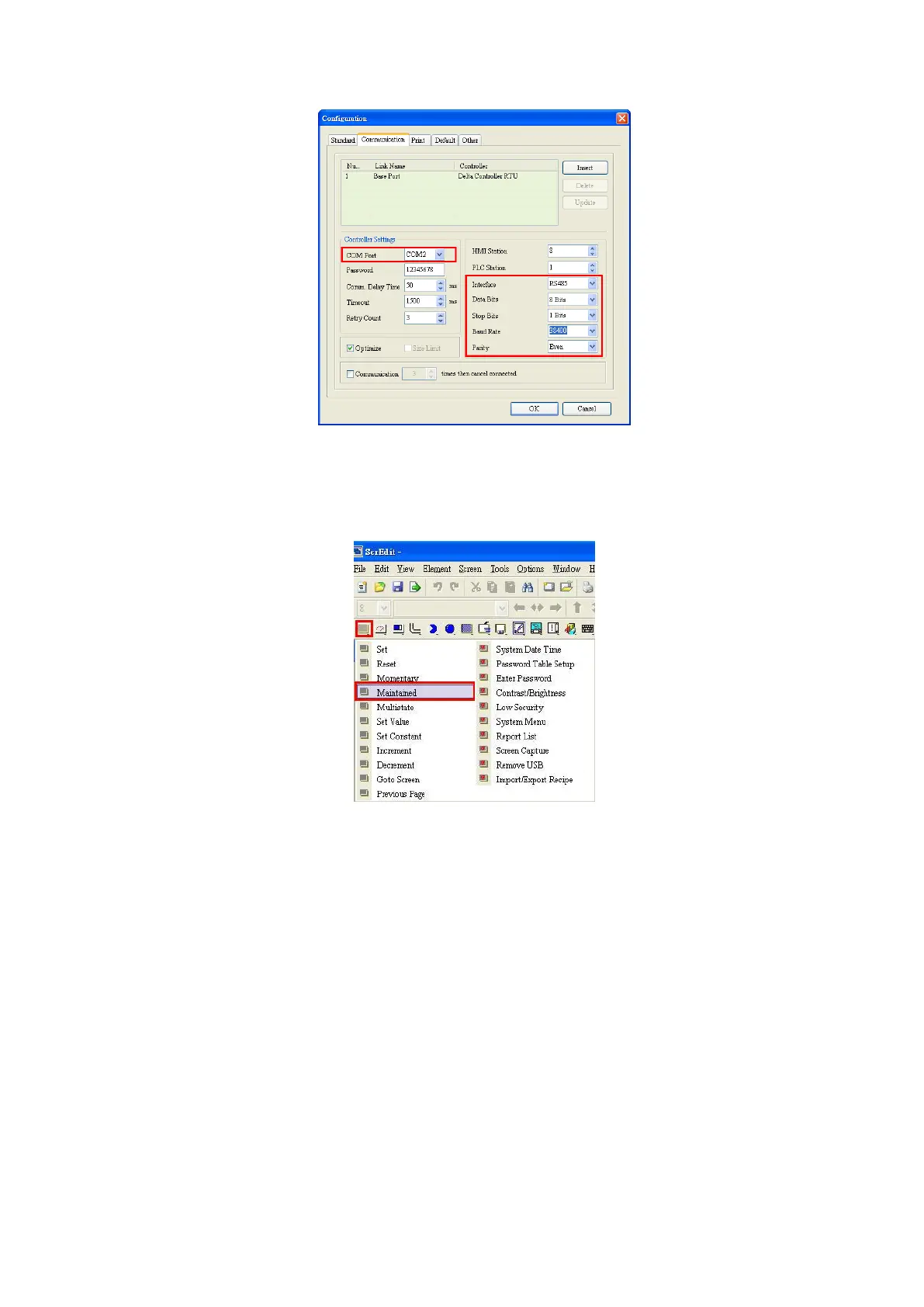

Step 3: If you want to control the On/Off of Y0 (Y0 address: 0500) of the PLC at station address 0x0001
and On/Off of Y0 (Y0 address: 0500) of the PLC at station address 0x0003, select “Maintained”
button and create the button on the screen.
Step 4: Create two “Maintained” buttons.
(a) Click the button on the left hand side first. You will see the information of the button in th
e
“
Property” window on the right hand side of the screen. Click “Write Address” to set up the
address of Y0 (0500) and the station address of the PLC (1). Select “Base Port” in “Link” field
and “RWB” in “Device Type” field.
(b) Next, set up the button on the right hand side in the same way as step (a) to modify the
station address of the PLC as “3”.

Delta Electronics IFD9506 Specifications

General

Brand	Delta Electronics
Model	IFD9506
Category	Control Unit
Language	English
