1.3.2 Installing a Removable Terminal Block

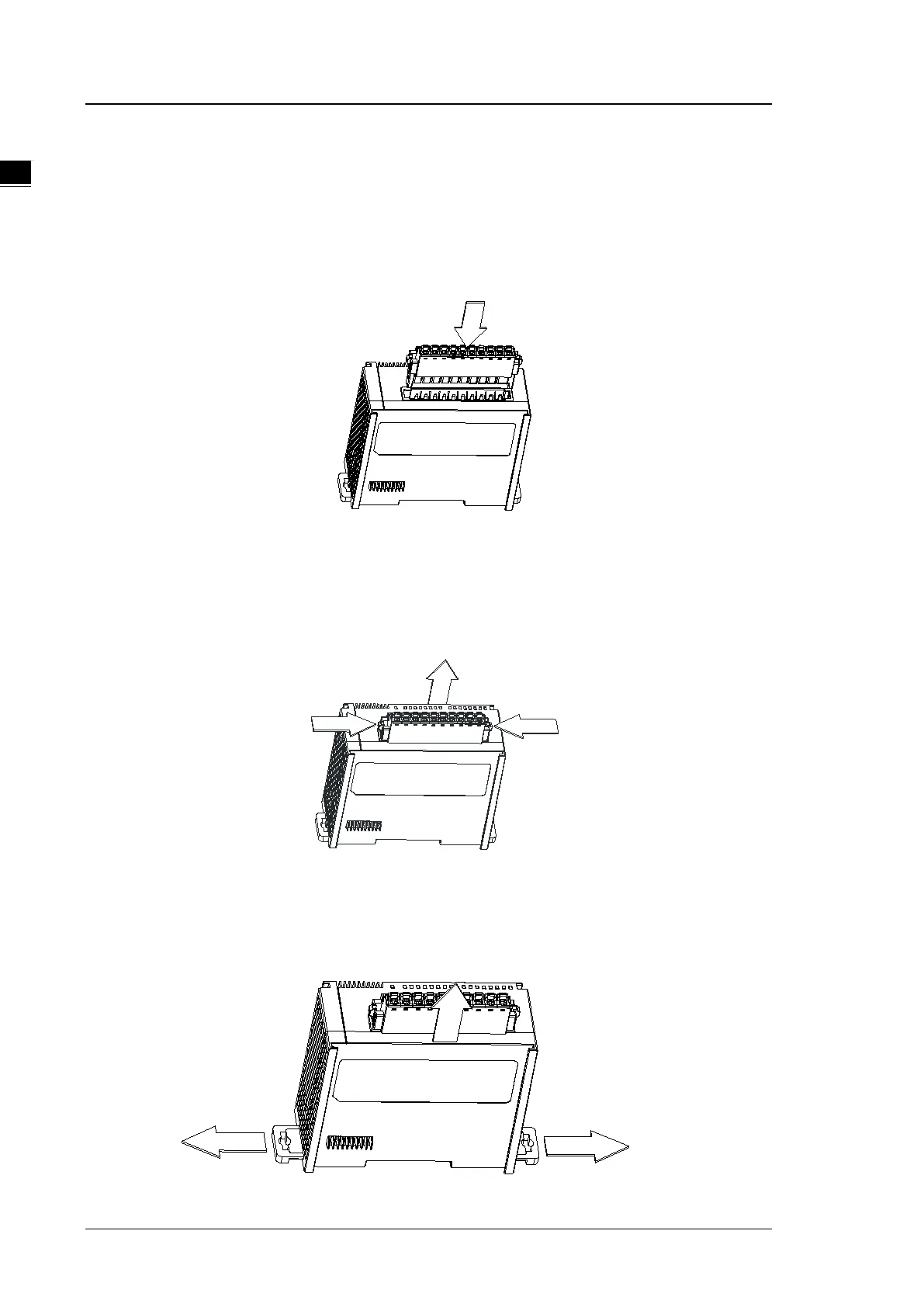

Install a removable terminal block on the module as illustrated below.

Installation
1. Level the terminal block at the printed circuit board, and press it into the module.

Removal
1. Pull down the clip
in the direction indicated by the arrow and then pull the terminal block up
as illustrated below.
1
1
2
1.3.3 Changing a Module
1. Take the removable terminal block out of the module, and then pull the clip out from the DIN rail as
shown below.
