Pulse Input Counting
To perform the pulse-input counting, first set the configuration of channels, which includes pulse type and counter type
selection in HWCONFIG. If the counter type is set to the linear counter, the maximum counting value and minimum counting
value need be set. After the configuration setting is completed, use the API instruction DHCCNT which is special for
AS02HC-A in a program to obtain the counting value, achieve the counter control as well as get the real time counter state.
1. Pulse Type
Specify the pulse input type which can be A/B phase (2x), A/B phase (4x), CW/CCW or pulse + direction.
Parameter
Setting
Unit
Default
Pulse Type
A/B phase (2x),
A/B phase (4x),
CW/CCW,
Pulse + direction
- A/B phase (2x)

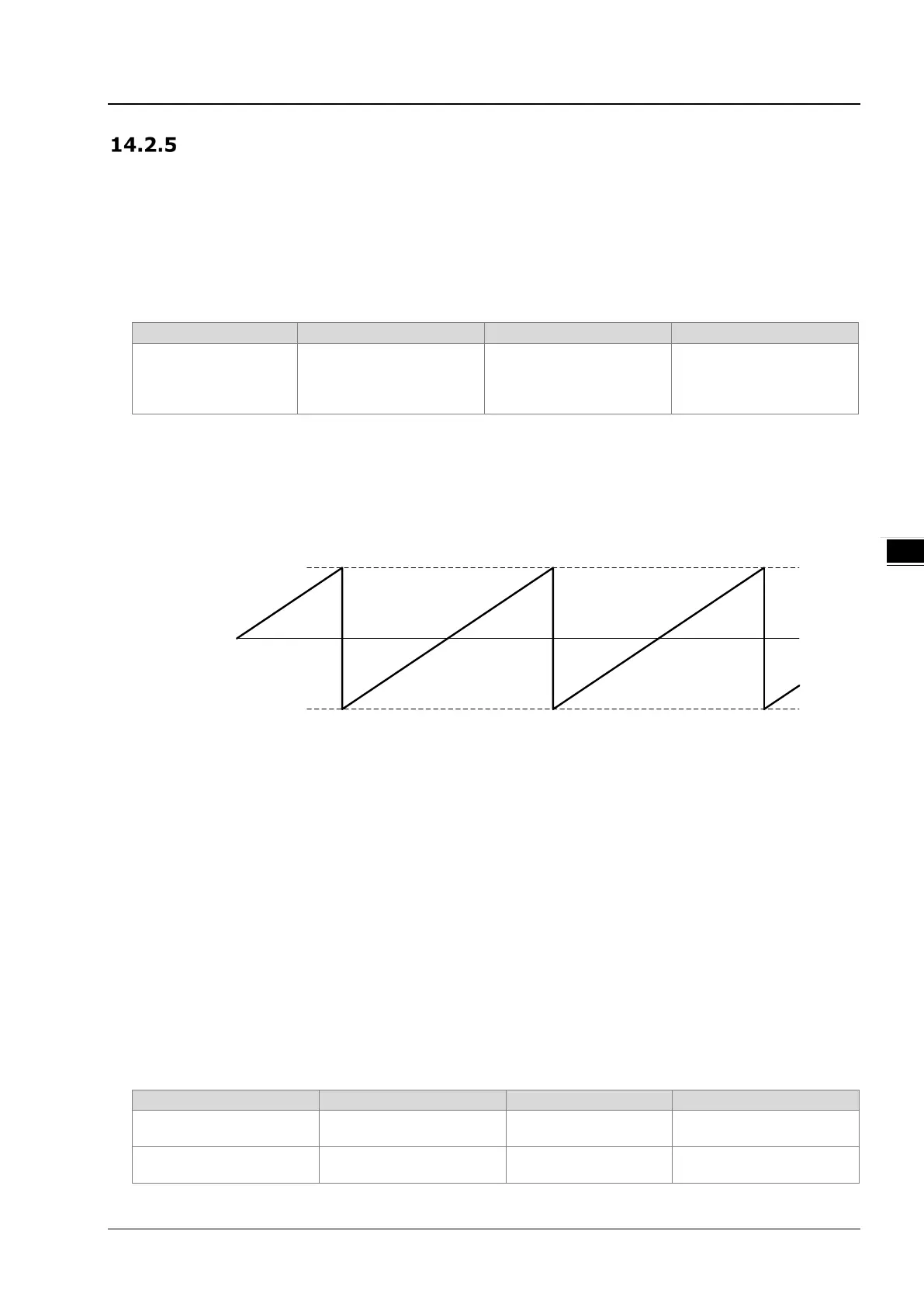

2. Using the ring counter
The ring counter value is cyclical in the range of -2,147,483,648 to 2,147,483,647. When it is greater than
2,147,483,647, the count value changes to -2,147,483,648 and then the counting continues. When it is less than -
2,147,483,648, the count value changes to 2,147,483,647 and then the counting continues.
0
2
,147,483,647
-2,147,483,648
3. Using the linear counter
The maximum and minimum counter values must be set up. The counter counts up and down between the two limit
counter value. When the count value exceeds the maximum value, the counter state will show the warning of “The
value exceeds the range!” and the count value will be fixed at the maximum counter value. When the count value is
below the minimum value, the counter state will show the warning of “The value exceeds the range!” and the count
value will be fixed at the minimum counter value.
When the count value is beyond the allowed range, the counting persists internally in the hardware. The counter
returns to normal and the count value is refreshed when the internal count value comes back within the valid range.
But when the internal count value in the hardware is beyond the valid range of -2,147,483,648 to 2,147,483,647, the
counter state shows linear counter overflow or linear counter underflow, the counting stops and the internal count
value stops at 2,147,483,647 or -2,147,483,648. The counting can not continue until the count value overflow state of
the counter is cleared.
The methods to clear the states include resetting the counter through phase-Z inputs, executing Reset/Preset via
DHCCNT instruction, disabling DHCCNT instruction or changing the CPU from RUN to STOP.
Parameter
Setting
Unit
Default
Max. counter value
(upper limit)
0 ~ 2147483647 - 2147483647
Min. counter value
(lower limit)
-2147483648 ~ 0 - -2147483648
