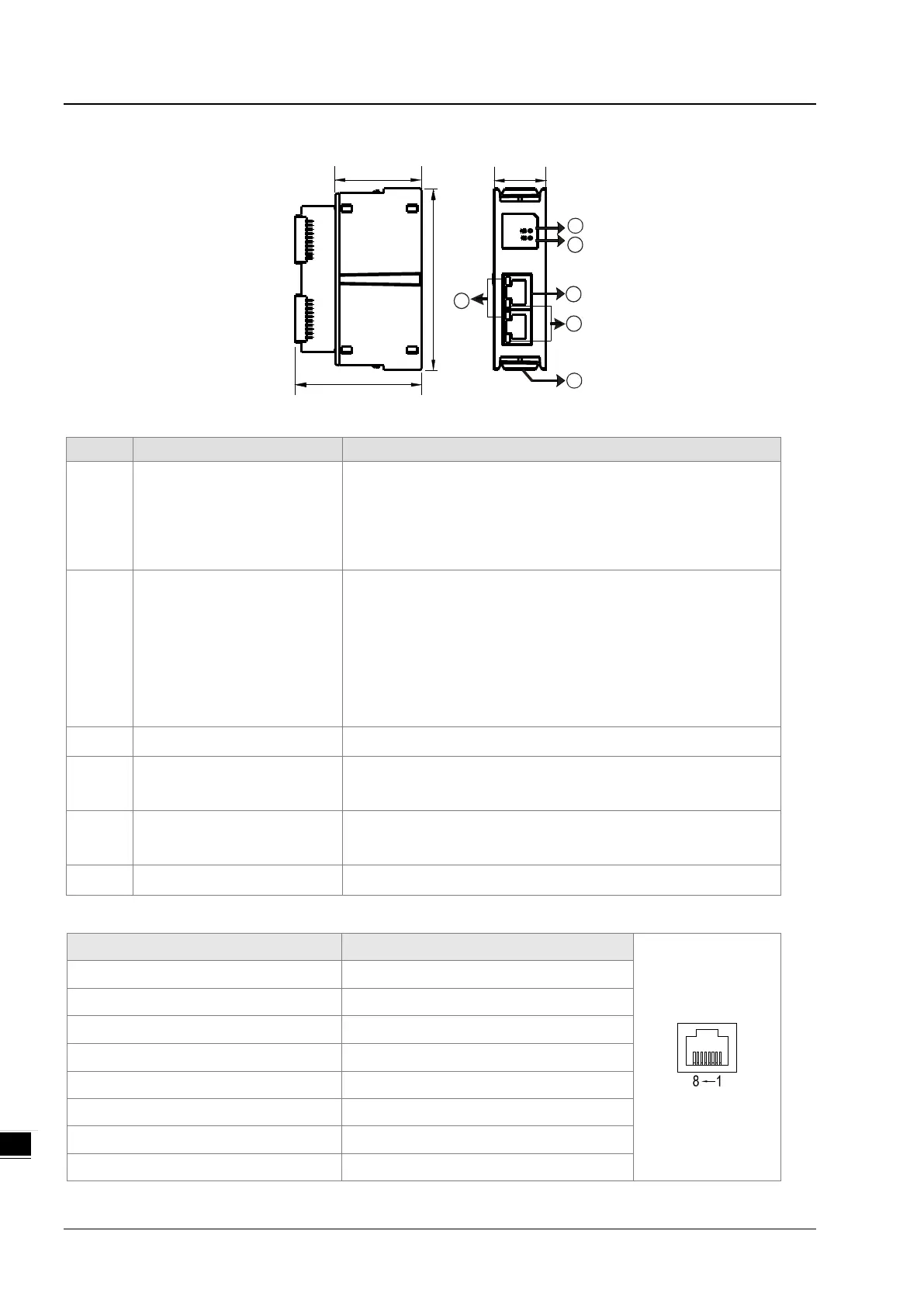

10.3.6 AS-FOPC02
1
88
42
61.5
25.2
2
3
4
5
6
Unit: mm
Number Name Description
1 MS indicator
Indicates the status of the communication card
Green light ON: the operation is working normal
Green light BLINKING: the setting is not complete
Red light ON: internal communication fail, can NOT be recovered
Red light BLINKING: internal communication timeout
OFF: no power
2 NS indicator
Indicates the status of Ethernet connection
Green light ON: a CIP / OPC-UA connection is established
Green light BLINKING: a CIP / OPC-UA
connection is not established
after power-on
Red light ON: duplicated IP address
Red light BLINKING: communication timeout (a CIP / OPC-UA
connection has been established after power-
on)
/ IP address change
OFF: no power / network cable is not connected
3 RJ-45 port X1/X2 For network connections
4 LINK indicator X1/X2
Indicate the status of Ethernet connection
Green light ON: a network connection is established
OFF: a network connection is not established
5 ACT indicator X1/X2
Indicate the status of Ethernet communication
Orange BLINKING: data transmission
OFF: no data transmission
6 Clip ring Secures AS series
RJ-45 Pin Definition
Pin No. RJ-45
1 TX+
2 TX-
3 RX+
4 N/C
5 N/C
6 RX-
7 N/C
8 N/C
