AS Series Module Manual
3- 24

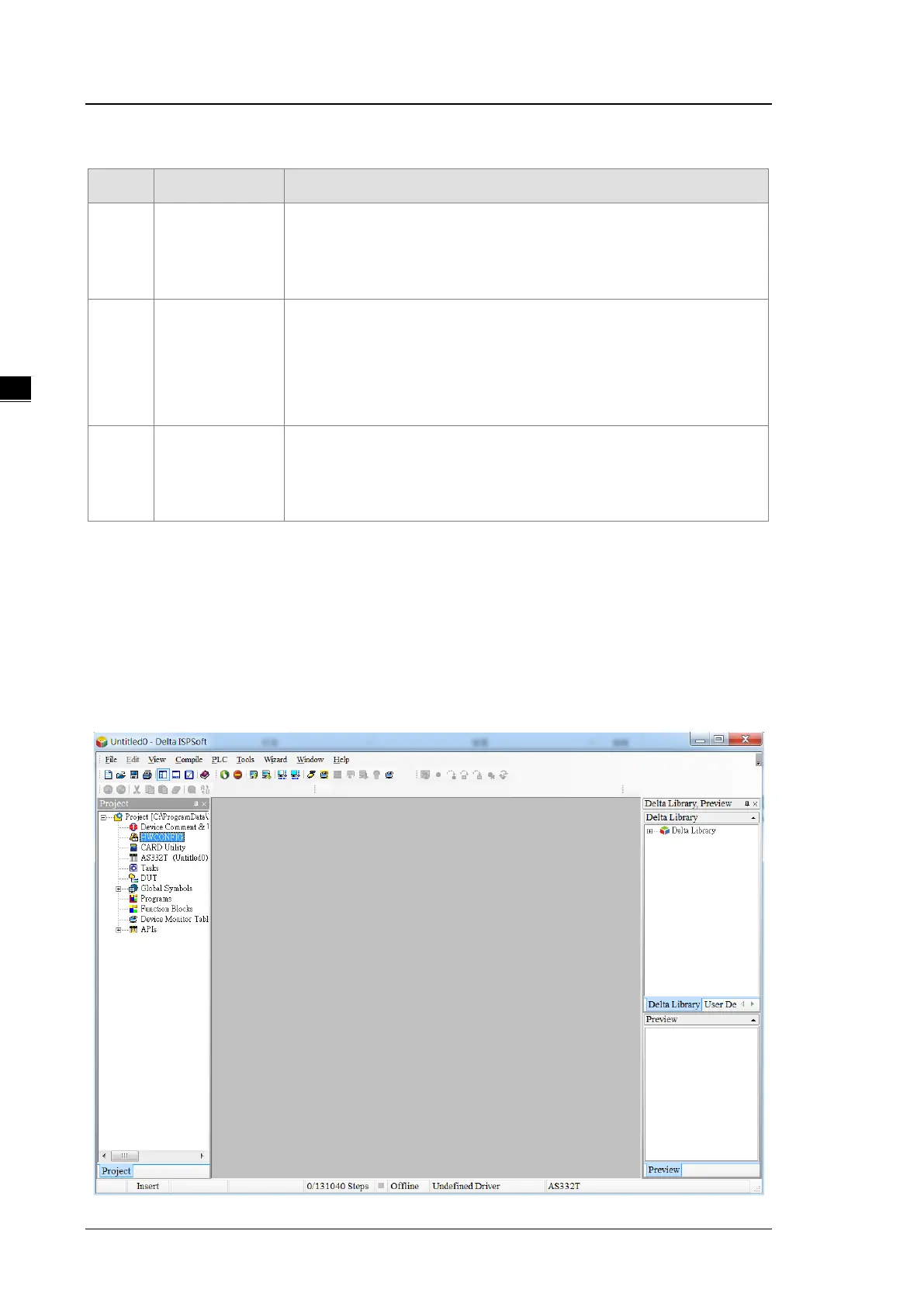

3.2.8 LED Indicators
Number Name Description
1 RUN LED Indicator
Operating status of the module
ON: the module is running.
OFF: the module is not running.
2
ERROR LED
Indicator
Error status of the module
ON: a serious error exists in the module.
OFF: the module is operating normally.
Blink: a minor error exists in the module.
3
Analog to Digital
Conversion
Indicator
Analog-to-digital conversion status
Blinking: conversion is in process.
OFF: conversion has stopped.
3.3 HWCONFIG in ISPSoft
The following example uses the AS04AD-A module.
3.3.1 Initial Setting
(1) Start ISPSoft and double-click HWCONFIG.
