9.6.2 UD Link
This section introduces how to use a non-Modbus RS485 communication port on the AS00SCM-A to connect to other
industrial products.
AS00 SCM COM1
Mas ter
9600, 7, E, 1
Slave
RS 485
Communication with a slave
Packet to Send
()
Packet to Receive
()
Description
POS, xxx, yyy POS, ACT xxx and yyy are coordinates (0–999)

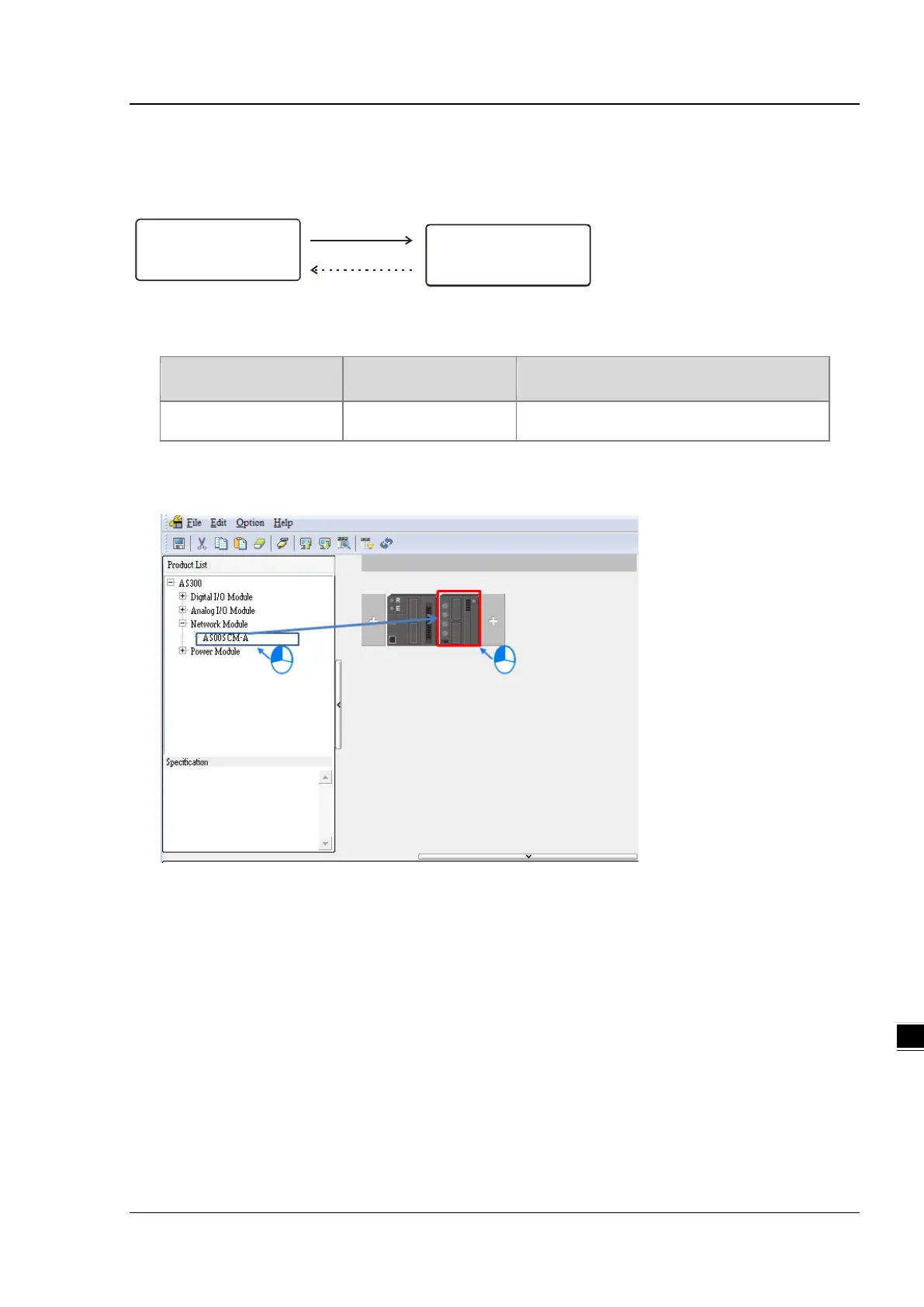

1) Drag to add AS00SCM-A in the system configuration area. Make sure the knob of AS00SCM-A is turned to COM
mode and no power connected to it.
