AS Series Module Manual
9- 42
_9
9.6.1.2 Modbus Master ─ Connection to Delta Products
This section introduces how to use COM2 to connect the AS00SCM-A to other Delta industrial products such as
programmable logic controllers, AC motor drives, and servo motors.
The structures:
Example of a master structure: AS-F485 + AS00SCM-A COM2 (master station)  VFD, ASDA, and DVP series PLC
Product
Slave
ID
Communication
protocol
Device from
which data is
read
Register in
the CPU
module
Device into
which data is
written
Register in
the CPU
module
VFD 10 38400, ASCII, 7, E, 1 16#2103 D26200
16#2000
16#2001
D26300-
D26301
ASDA
11
38400, ASCII, 7, E, 1
16#0101
D26210
16#0101
D26310
PLC 12 38400, ASCII, 7, E, 1
D100-D109
D26220-
D26229
D200-D204
D26320-
D26324
If the AS00SCM-A is functioning as a Modbus master, you need to set a slave ID and baud rate.

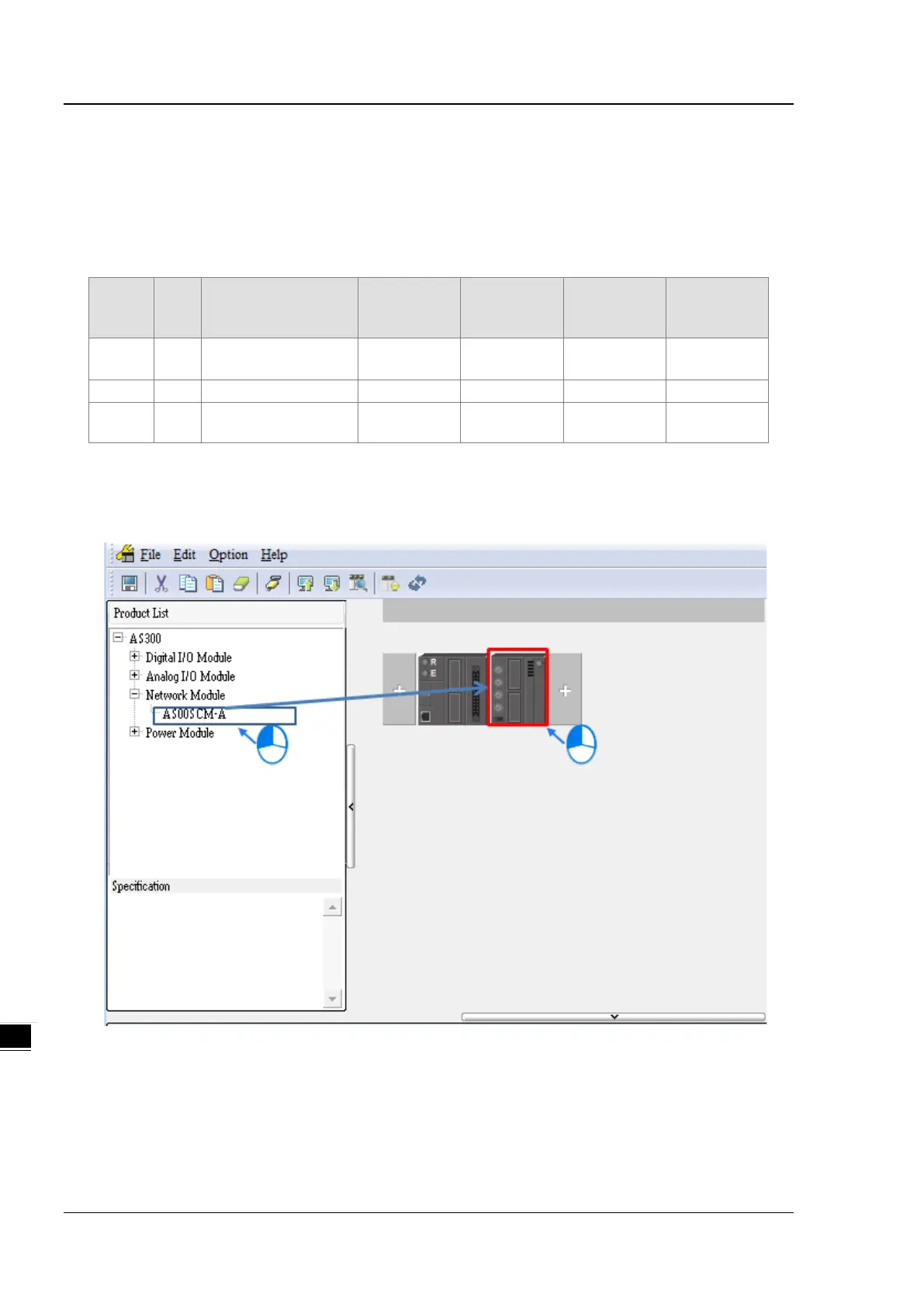

1) Drag to add AS00SCM-A in the system configuration area. Make sure the knob of AS00SCM-A is turned to COM
mode and no power connected to it.
