Chapter 11 DeviceNet Master Scanner Module AS01DNET-A
11-35
1
1

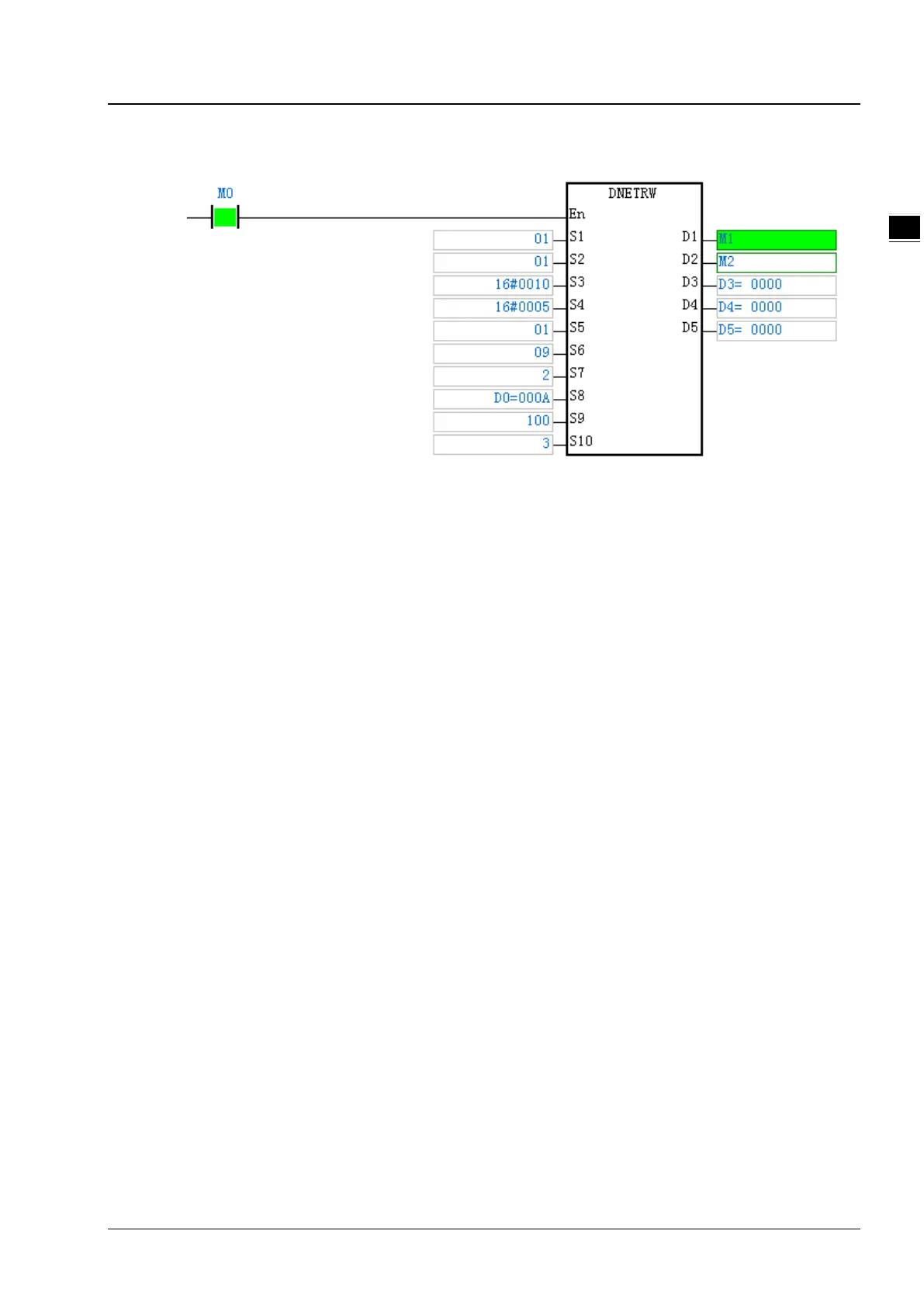

 PLC Program
 S1：The number of the module sending DeviceNet communication. The first one of the right side is 01.
 S2：DeviceNet node ID (MAC ID); Node ID of VFD-C2000: 00.
 S3：Service code; 0X10: read one single attribute content.
 S4：Class ID; Class ID of CMC-DN01: 05.
 S5：Instance ID; Instance ID of CMC-DN01: 01.
 S6：Attribute ID; Attribute ID of CMC-DN01: 09.
 S7：Write data size with the unit: Byte. The written-data size is 2 in this example.
 S8：The start device where the written data are stored.
 S9：Communication timeout time.
 S10：Times of re-transmission. Times of re-sending communication when communication timeout occurs.
 D1：Completion flag.
 D2：Error flag.
 D3：Error code.
 D4：Read data size. When DNETRW instruction is used to write data, the value in D4 can be set to any
data.
 D5：The start device where read data are stored. When DNETRW instruction is used to write data, the
value in D5 can be set to any data.
