Parameters ASDA-B2-F

7-16 September, 2015

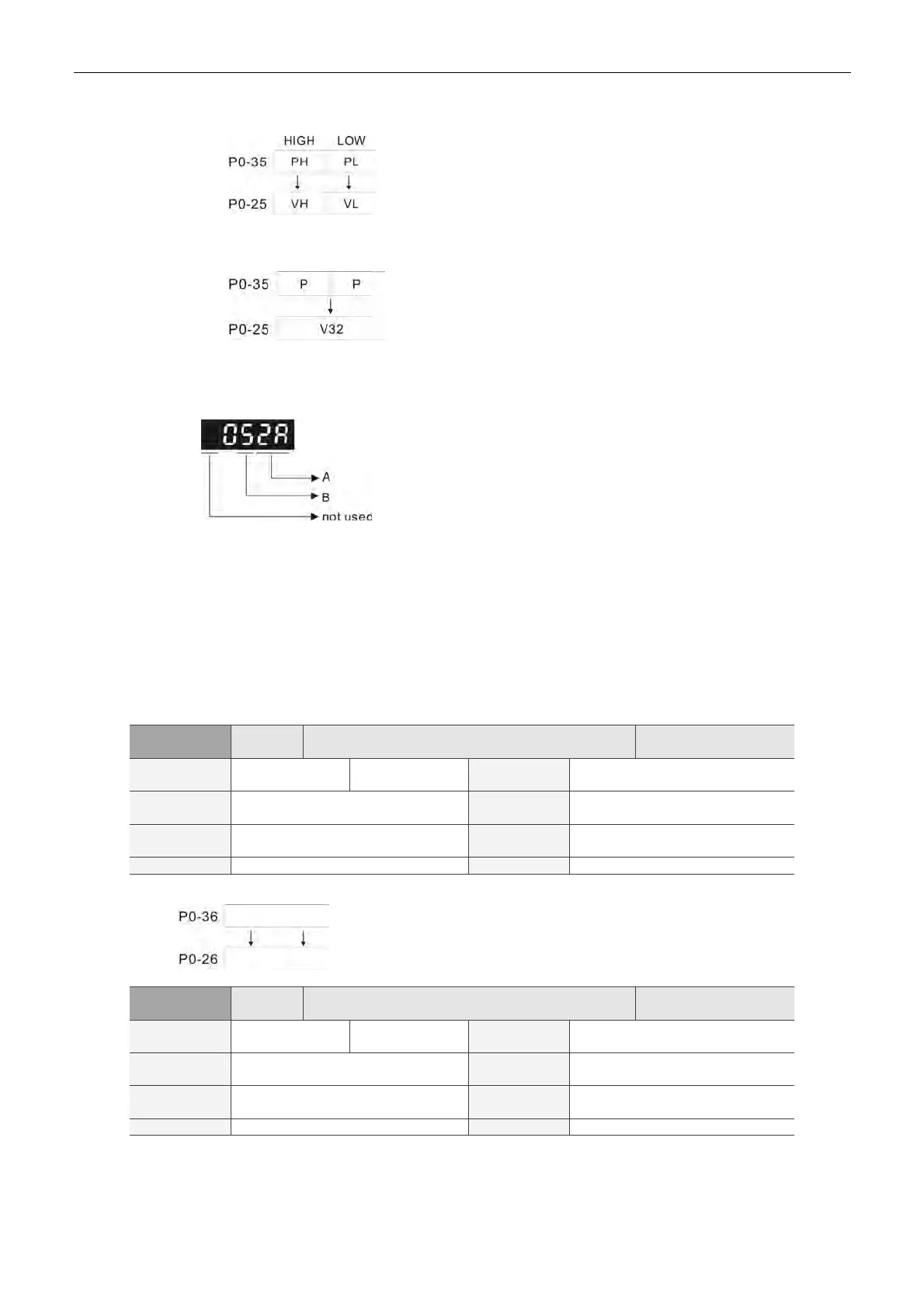

P0-35:

Mapping parameter: P0-35; Mapping content: P0-25

When PH≠PL, it means the content of P0-25 includes two 16-bit parameters.

VH=*(PH), VL=*(PL)

Mapping parameter: P0-35; Mapping content: P0-25

When PH=PL=P, it means the content of P0-25 includes one 32-bit parameter.

V32=*(P) If P=060Ah (P6-10), then V32 is P6-10.

The setting format of PH, PL is:

A: parameter indexing (hexadecimal)

B: parameter group (hexadecimal)

For example:

If the mapping target is P2-06, set P0-35 to 0206.

If the mapping target is P5-42, set P0-35 to 052A.

For example:

If users desire to read / write P1-44 (32-bit) through P0-25, set P0-35 to 0x012C012C via panel or

communication. Then, when reading / writing P0-25, it also reads / writes P1-44.

Moreover, users can also access the value of P2-02 and P2-04 through P0-25.

P2-02 Position feed forward gain (16-bit)

P2-04 Speed control gain (16-bit)

Users only need to set P0-35 to 0x02040202. Then, when reading / writing P0-25, it also reads /

writes the value of P2-02 and P2-04.

P0-36 MAP2A Target Setting of Mapping Parameter P0-26

ddress: 0048H

0049H

Operational

Interface:

Panel / Software Communication

Section:

4.3.5

Default: 0

Control

Mode:

ALL

Unit: - Range:

Determined by the communication

address of the parameter group

Format: HEX Data Size: 32-bit

Settings:

P0-37 MAP3A Target Setting of Mapping Parameter P0-27

ddress: 004AH

004BH
