Delta ASDA-B2-F Series User Manual

ASDA-B2-F Parameters
September, 2015 7-39
7
Settings:
When the environmental noise is big, increasing the setting value can enhance the control stability.
However, if the value is set to be too big, the response time will be influenced.

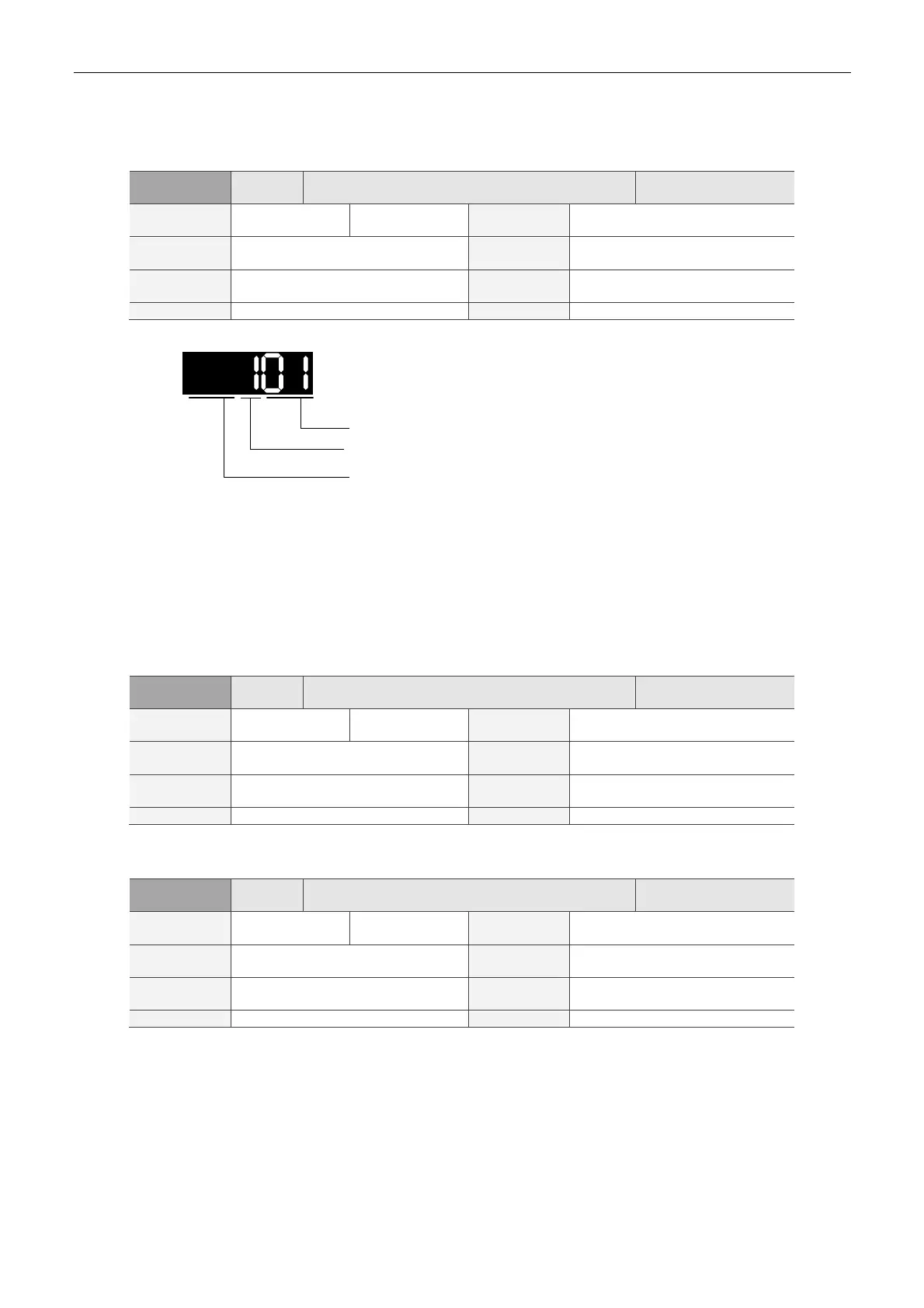

P2-10 DI1 DI1 Functional Planning
A
ddress: 0214H
0215H
Operational
Interface:
Panel / Software Communication
Related
Section:
Table 7.1
Default: 101
Control
Mode
ALL
Unit: - Range:
0 ~ 0x015F (The last two codes are
DI code)
Format: HEX Data Size: 16-bit
Settings:
Input function selection
Input contact
Not in use

Input function selection: Please refer to Table 7.1
 Input contact: a or b contact
0: Set the input contact as normally closed (b contact)
1: Set the input contact as normally opened (a contact)
(P2-10 ~ P2-17) The setting value of function programmed
When parameters are modified, please re-start the servo drive to ensure it can work normally.
Note: Parameter P3-06 is used to set how digital inputs (DI) accept commands, through external terminal or
communication determined by P4-07.
P2-11 DI2 DI2 Functional Planning
A
ddress: 0216H
0217H
Operaional
Interface:
Panel / Software Communication
Related
Section:
Table 7.1
Default: 104
Control
Mode:
ALL
Unit: - Range:
0 ~ 0x015F (The last two codes are
DI code)
Format: HEX Data Size: 16-bit
Settings:
Please refer to the description of P2-10.
P2-12 DI3 DI3 Functional Planning
A
ddress: 0218H
0219H
Operational
Interface:
Panel / Software Communication
Related
Section:
Table 7.1
Default:
022
Control
Mode:
ALL
Unit: - Range:
0 ~ 0x015F (The last two codes are
DI code)
Format: HEX Data Size: 16-bit
Settings:
Please refer to the description of P2-10.
