Parameters ASDA-B2-F
7-40 September, 2015
7

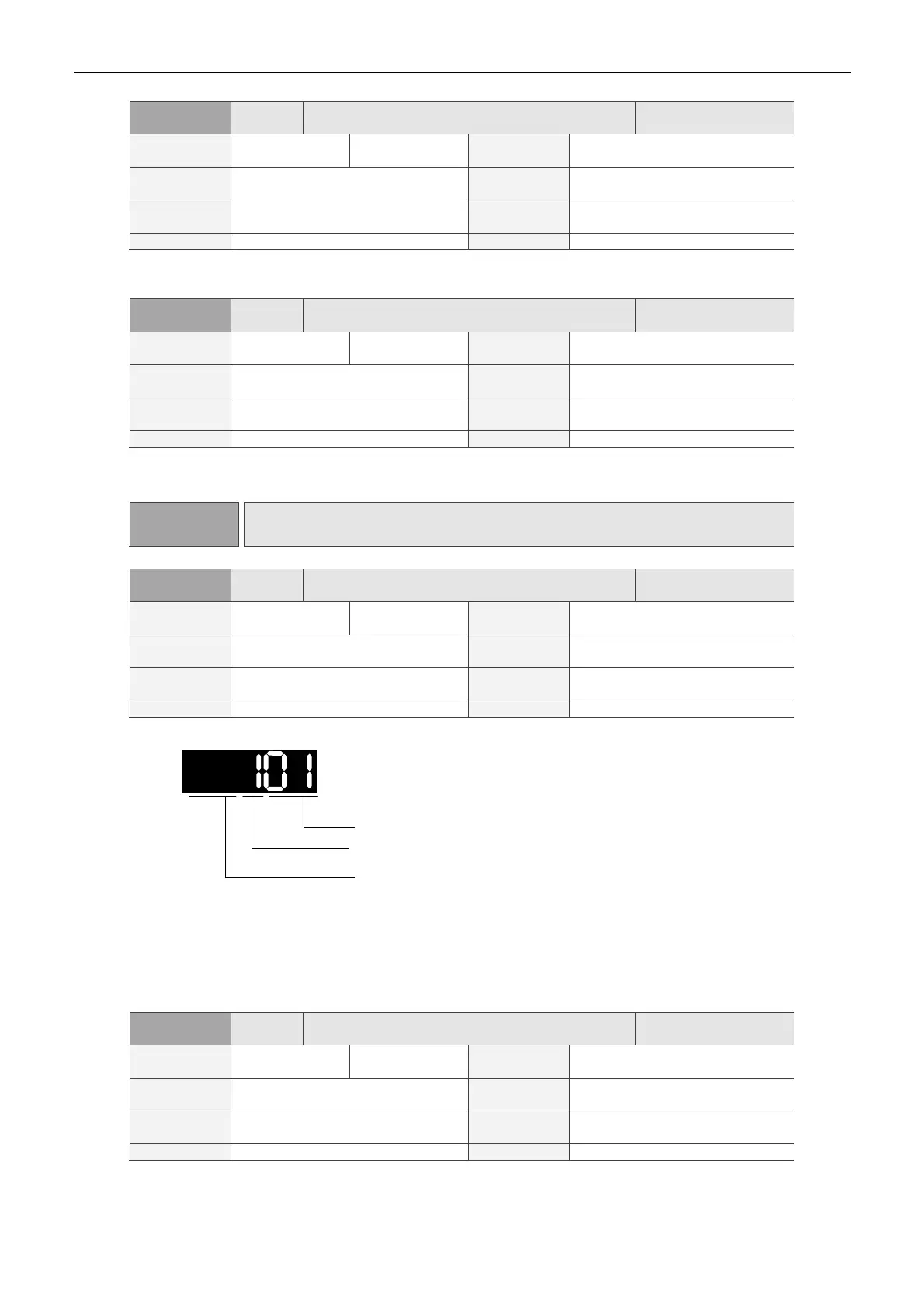

P2-13 DI4 DI4 Functional Planning
A
ddress: 021AH
021BH
Operational
Interface:
Panel / Software Communication
Related
Section:
Table 7.1
Default:
023
Control
Mode:
ALL
Unit: - Range:
0~ 0x15F (The last two codes are
DI code)
Format: HEX Data Size: 16-bit
Settings:
Please refer to the description of P2-10.
P2-14 DI5 DI5 Functional Planning
A
ddress: 021CH
021DH
Operational
Interface:
Panel / Software Communication
Related
Section:
Table 7.1
Default:
021
Control
Mode:
ALL
Unit: - Range:
0 ~ 0x015F (The last two codes are
DI code)
Format: HEX Data Size: 16-bit
Settings:
Please refer to the description of P2-10.
P2-15~P2-17 Reserved
P2-18 DO1 DO1 Functional Planning
A
ddress: 0224H
0225H
Operational
Interface:
Panel / Software Communication
Related
Section:
Table 7.2
Default: 101
Control
Mode:
ALL
Unit: - Range:
0 ~ 0x013F (The last two codes are
DO code)
Format: HEX Data 16-bit
Settings:
Output function selection
Output contact
Not in use
 Output function selection: Please refer to Table 7.2
 Output contact: a or b contact
0: Set the output contact as normally closed (b contact)
1: Set the output contact as normally opened (a contact)
(P2-18 ~ P2-22) The setting value of function programmed
When parameters are modified, please re-start the servo drive to ensure it can work normally.
P2-19 DO2 DO2 Functional Planning
A
ddress: 0226H
0227H
Operational
Interface:
Panel / Software Communication
Related
Section:
Table 7.2
Default: 103
Control
Mode:
ALL
Unit:- Range:
0 ~ 0x013F (The last two codes are
DO code)
Format: HEX Data Size: 16-bit
Settings:
Please refer to the description of P2-18
