Delta ASDA-B2-F Series User Manual

ASDA-B2-F Appendix A Specifications
September, 2015 A-23
A

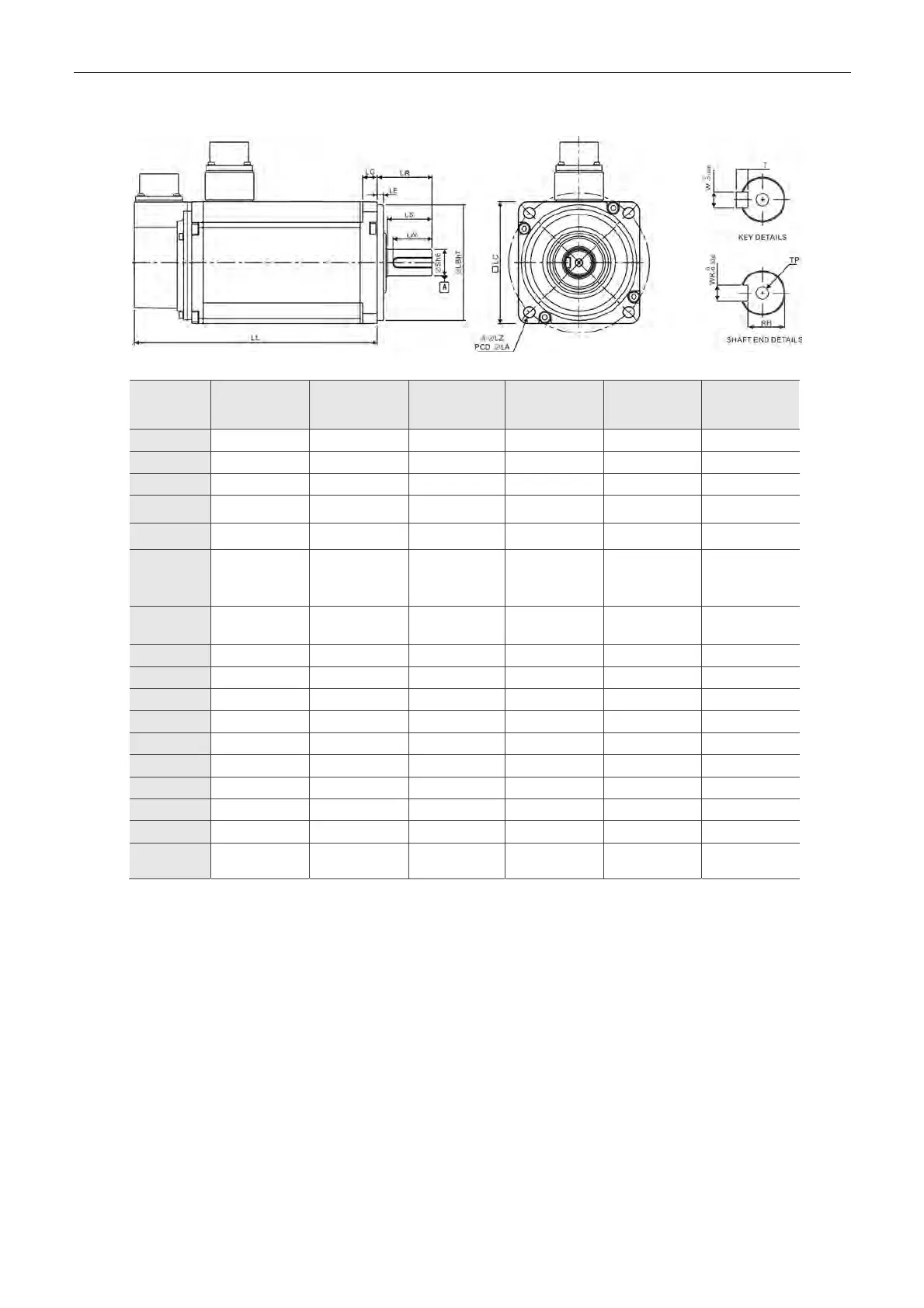

Motor Frame Size: 100 ~ 130 mm
Model
C△1010□S C△1020□S C△1330□4 E△1305□S E△1310□S E△1315□S
LC 100 100 130 130 130 130
LZ 9 9 9 9 9 9
LA 115 115 145 145 145 145
S
)
(
.
22
0
0130


)
(
.
22
0
0130


)
(24
0
013.0


)
(
.
22
0
0130


)
(
.
22
0
0130


)
(
.
22
0
0130


LB
)
(
.
95
0
0350


)
(
.
95
0
0350


)
(110
0
035.0


)
(
.
110
0
0350


)
(
.
110
0
0350


)
(
.
110
0
0350


LL
(without
brake)
153.3 199 187.5 147.5 147.5 167.5
LL (with
brake)
192.5 226 216.0 183.5 183.5 202
LS 37 37 47 47 47 47
LR 45 45 55 55 55 55
LE 5 5 6 6 6 6
LG 12 12 11.5 11.5 11.5 11.5
LW 32 32 36 36 36 36
RH 18 18 20 18 18 18
WK 8 8 8 8 8 8
W 8 8 8 8 8 8
T 7 7 7 7 7 7
TP
M6
Depth 20
M6
Depth 20
M6
Depth 20
M6
Depth 20
M6
Depth 20
M6
Depth 20
Note:
1. Dimensions are in millimeters.
2. Dimensions and weights of the servo drive may be changed without prior notice.
3. The boxes (□) in model stand for shaft end / brake or the number of oil seal.
4. The boxes (
ᇞ) in model stand for encoder type. Please refer to Chapter 1 for detailed description.
5. For motors with magnetic encoder, please refer to standard dimensions of servo motor.
