Delta ASDA-B2-F Series User Manual

ASDA-B2-F Appendix A Specifications
September, 2015 A-25
A

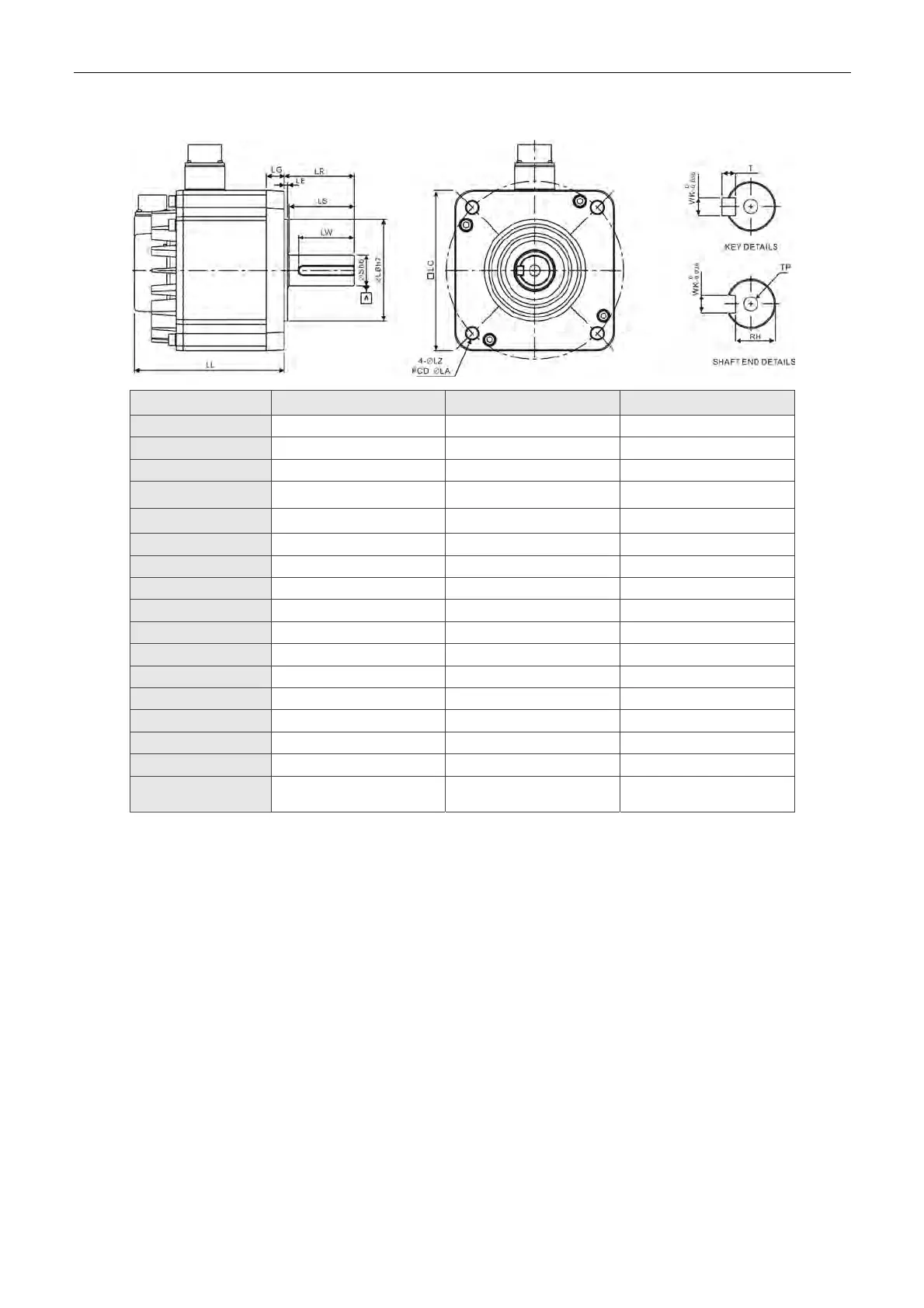

Motor Frame Size: 180 mm
Model
E△1820□ S E△1830□ S F△1830□ S
LC 180 180 180
LZ 13.5 13.5 13.5
LA 200 200 200
S
)
(
.
35
0
0160


)
(
.
35
0
0160


)
(
.
35
0
0160


LB
)
(.
.
3114
0
0350


)
(.
.
3114
0
0350


)
(.
.
3114
0
0350


LL (without brake) 169 202.1 202.1
LL (with brake) 203.1 235.3 235.3
LS 73 73 73
LR 79 79 79
LE 4 4 4
LG 20 20 20
LW 63 63 63
RH 30 30 30
WK 10 10 10
W 10 10 10
T 8 8 8
TP
M12
Depth 25
M12
Depth 25
M12
Depth 25
Note:
1. Dimensions are in millimeters.
2. Dimensions and weights of the servo drive may be changed without prior notice.
3. The boxes (□) in model stand for shaft end / brake or the number of oil seal.
4. The boxes (
ᇞ) in model stand for encoder type. Please refer to Chapter 1 for detailed description.
