Delta C2000 Series User Manual

Chapter 7 Optional AccessoriesC2000
7-32
Model
Output AC reactor
Delta part #

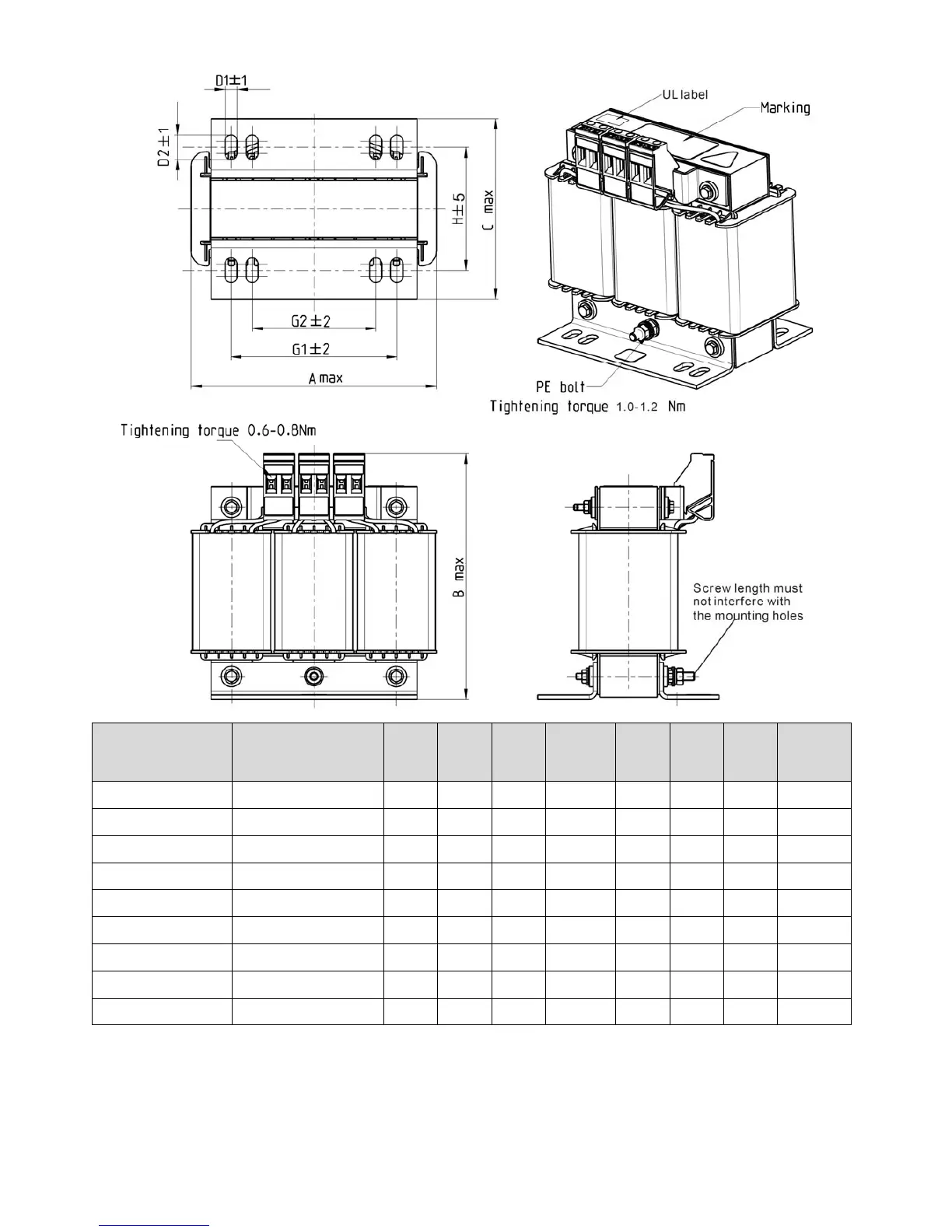

A B C D1*D2 H G1 G2 PE
VFD007C43A DR003A0810 96 115 60 6*9 42 60 40 M4
VFD015C43A DR004A0607 120 135 88 6*12 60 81 60 M4
VFD022C43A DR006A0405 120 135 88 6*12 60 81 60 M4
VFD037C43A DR009A0270 150 160 98 6*12 74 107 75 M4
VFD040C43A DR010A0231 150 160 112 6*12 88 107 75 M4
VFD055C43A DR012A0202 150 160 112 6*12 88 107 75 M4
VFD075C43A DR018A0117 150 160 112 6*12 88 107 75 M4
VFD110C43A DR024AP881 150 160 112 6*12 88 107 75 M4
VFD150C43A DR032AP660 180 190 138 6*12 114 122 85 M6
Table 7-40

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
