Delta C2000 Series User Manual

Chapter 8 Option CardsC2000
8-31
8-13 CMC-DN01 -- Communication card, DeviceNet
8-13-1 Functions
1. Based on the high-speed communication interface of Delta HSSP protocol, able to conduct
immediate control to AC motor drive.
2. Supports Group 2 only connection and polling I/O data exchange.
3. For I/O mapping, supports Max. 32 words of input and 32 words of output.
4. Supports EDS file configuration in DeviceNet configuration software.
5. Supports all baud rates on DeviceNet bus: 125Kbps, 250Kbps, 500Kbps and extendable serial
transmission speed mode.
6. Node address and serial transmission speed can be set up on AC motor drive.
7. Power supplied from AC motor drive.

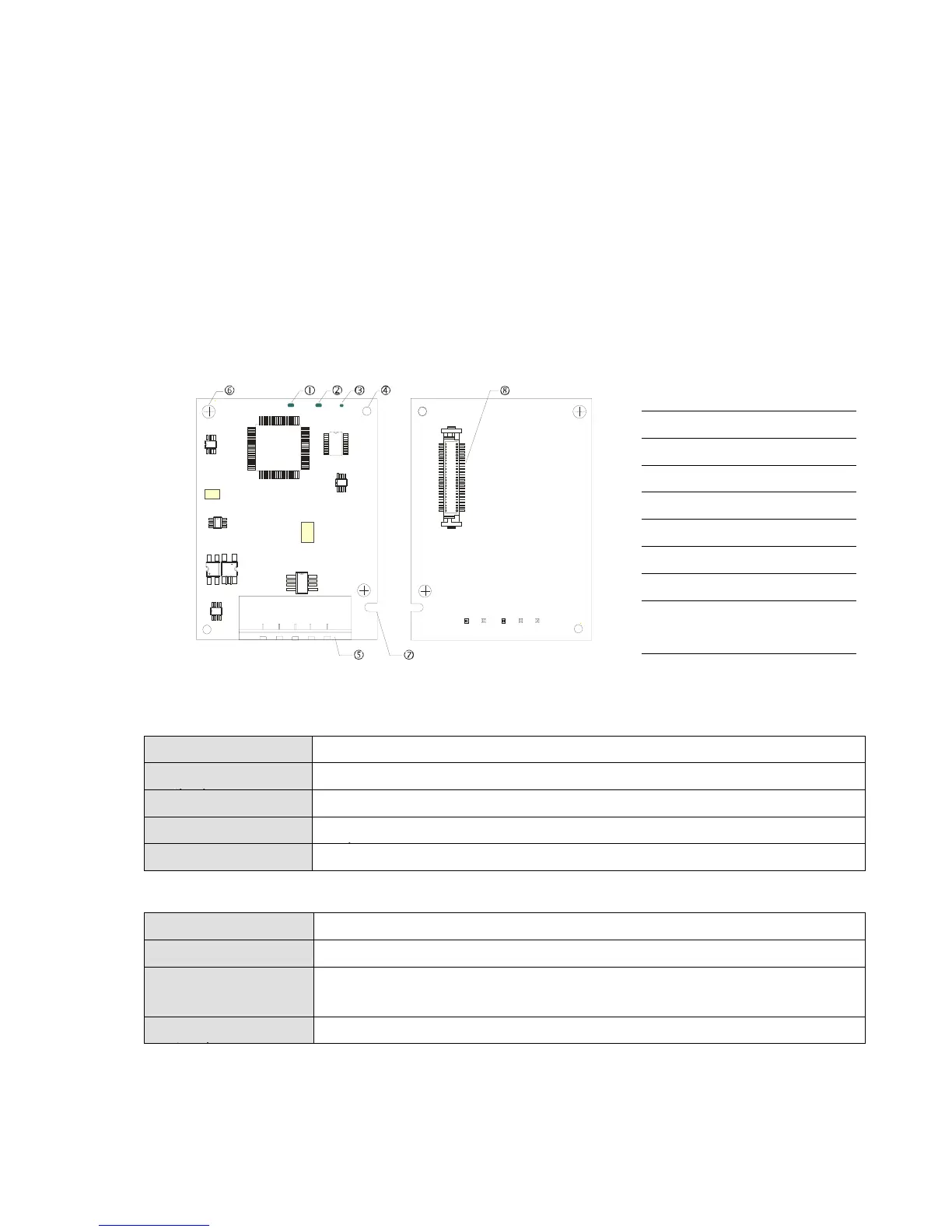

8-13-2 Product Profile
1. NS indicator
2. MS indicator
3. POWER indicator
4. Positioning hole
5. DeviceNet connection port
6. Screw fixing hole
7. Fool-proof groove
8. AC motor drive connection
port
8-13-3 Specifications
DeviceNet Connector
Interface 5-PIN open removable connector of 5.08mm PIN interval
Transmission
th d
CAN
Transmission cable Shielded twisted pair cable (with 2 power cables)
Transmission speed 125Kbps, 250Kbps, 500Kbps and extendable serial transmission speed
d
Network protocol DeviceNet protocol
AC Motor Drive Connection Port
Interface 50 PIN communication terminal
Transmission method SPI communication
Terminal function
1. Communicating with AC motor drive
2. Transmitting power supply from AC motor drive
Communication
tl
Delta HSSP protocol

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
