Delta C2000 Series User Manual

Chapter 8 Option CardsC2000
8-2
Please select applicable option cards for your drive or contact local distributor for suggestion.
To prevent drive damage during installation, please remove the digital keypad and the cover before wiring.
Refer to the following instruction.
8-1 Option Card Installation

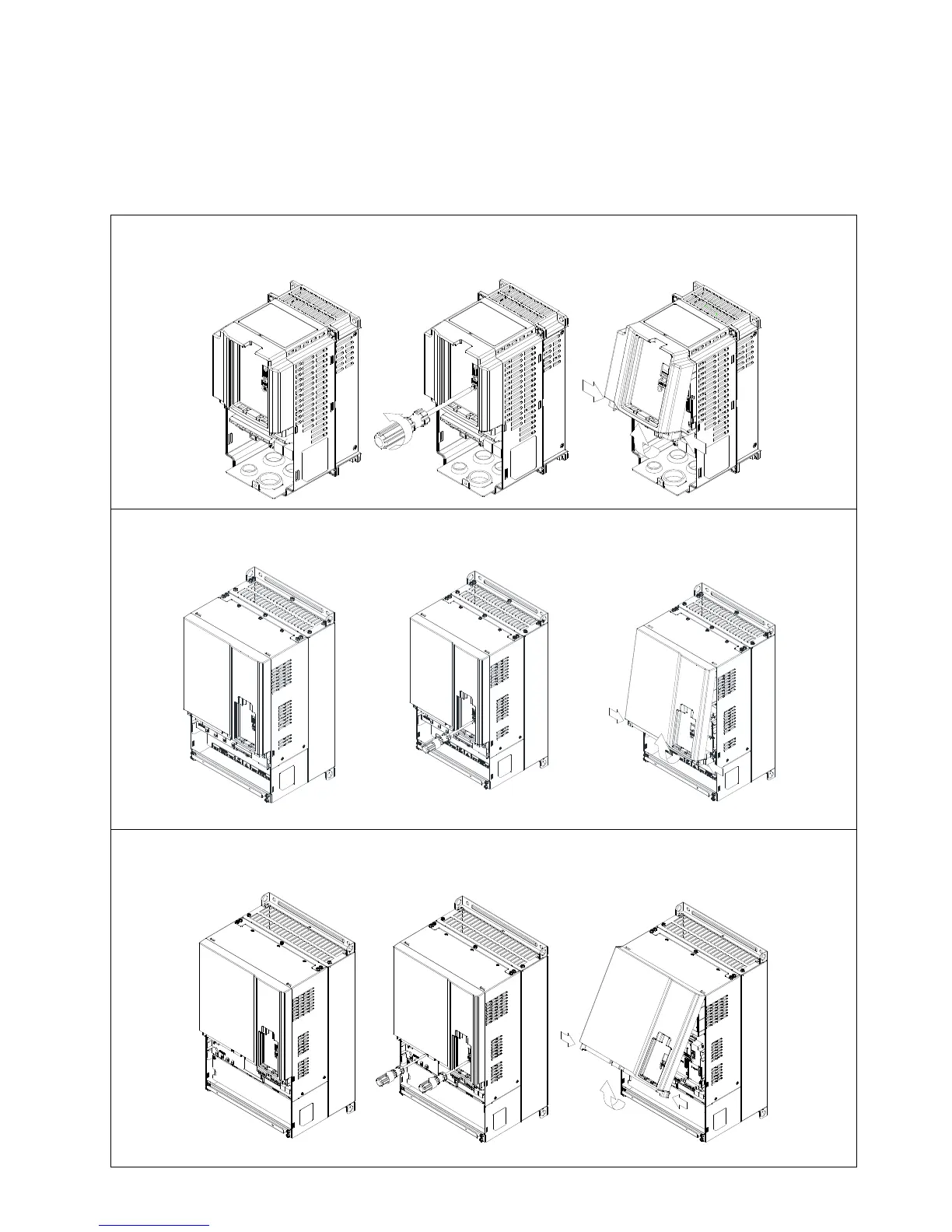

8-1-1 Remove covers
Frame A–C
Screw Torque: 8–10 kg-cm / [6.9–8.7 lb-in.] / [0.8–1.0 Nm]
Frame D0
Screw Torque: 8–10 kg-cm / [6.9–8.7 lb-in.] / [0.8–1.0 Nm]
Frame D
Screw Torque: 8–10 kg-cm / [6.9–8.7 lb-in.] / [0.8–1.0 Nm]

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
