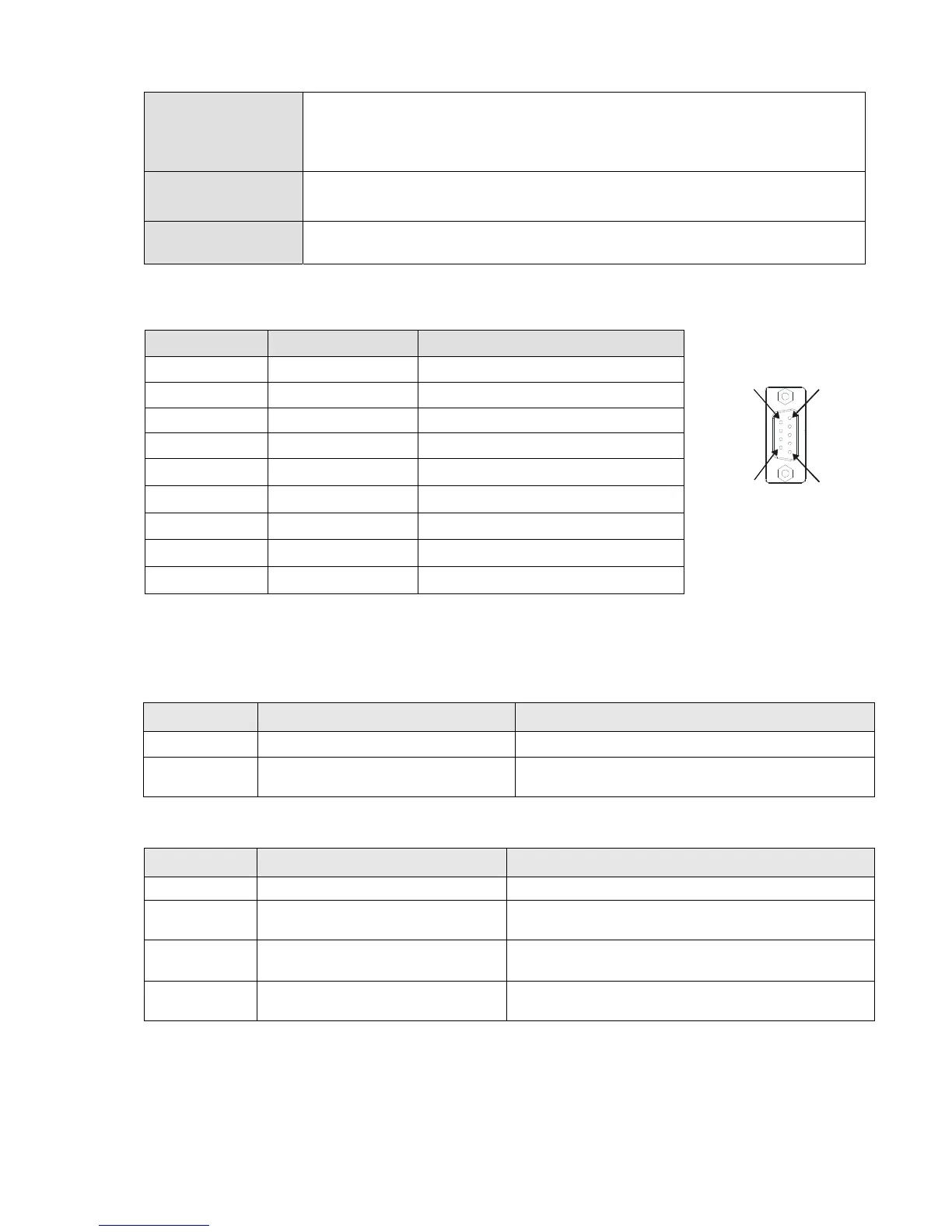

Chapter 8 Option CardsC2000
8-30
Environment
Noise immunity
ESD(IEC 61800-5-1, IEC 61000-4-2)
EFT(IEC 61800-5-1, IEC 61000-4-4)
Surge Teat(IEC 61800-5-1, IEC 61000-4-5)
Conducted Susceptibility Test(IEC 61800-5-1, IEC 61000-4-6)
Operation /storage
Operation: -10ºC
–50ºC (temperature), 90% (humidity)
Storage: -25ºC
–70ºC (temperature), 95% (humidity)
Shock / vibration
resistance
International standards: IEC61131-2, IEC60068-2-6 (TEST Fc) / IEC61131-2 & IEC
60068-2-27 (TEST Ea)
8-12-4 Installation
PROFIBUS DP Connector
PIN PIN name Definition
16
5
9
1 - Not defined
2 - Not defined
3 Rxd/Txd-P Sending / receiving data P(B)
4 - Not defined
5 DGND Data reference ground
6 VP Power voltage – positive
7 - Not defined
8 Rxd/Txd-N Sending/receiving data N(A)
9 - Not defined
8-12-5 LED Indicator & Troubleshooting
There are 2 LED indicators on CMC-PD01: POWER LED and NET LED. POWER LED displays the
status of the working power. NET LED displays the connection status of the communication.
POWER LED
LED status Indication
How to correct it?
Green light on Power supply in normal status. --
Off No power
Check if the connection between CMC-PD01 and AC
motor drive is normal.
NET LED
LED status Indication
How to correct it?
Green light on Normal status --
Red light on
CMC-PD01 is not connected to
PROFIBUS DP bus.
Connect CMC-PD01 to PROFIBUS DP bus.
Red light
flashes
Invalid PROFIBUS communication
address
Set the PROFIBUS address of CMC-PD01 between
1
– 125 (decimal)
Orange light
flashes
CMC-PD01 fails to communication
with AC motor drive.
Switch off the power and check whether CMC-PD01 is
correctly and normally connected to AC motor drive.
