Delta C2000 Series User Manual

Chapter 7 Optional AccessoriesC2000
7-47
A
D
C
B
E
G
F

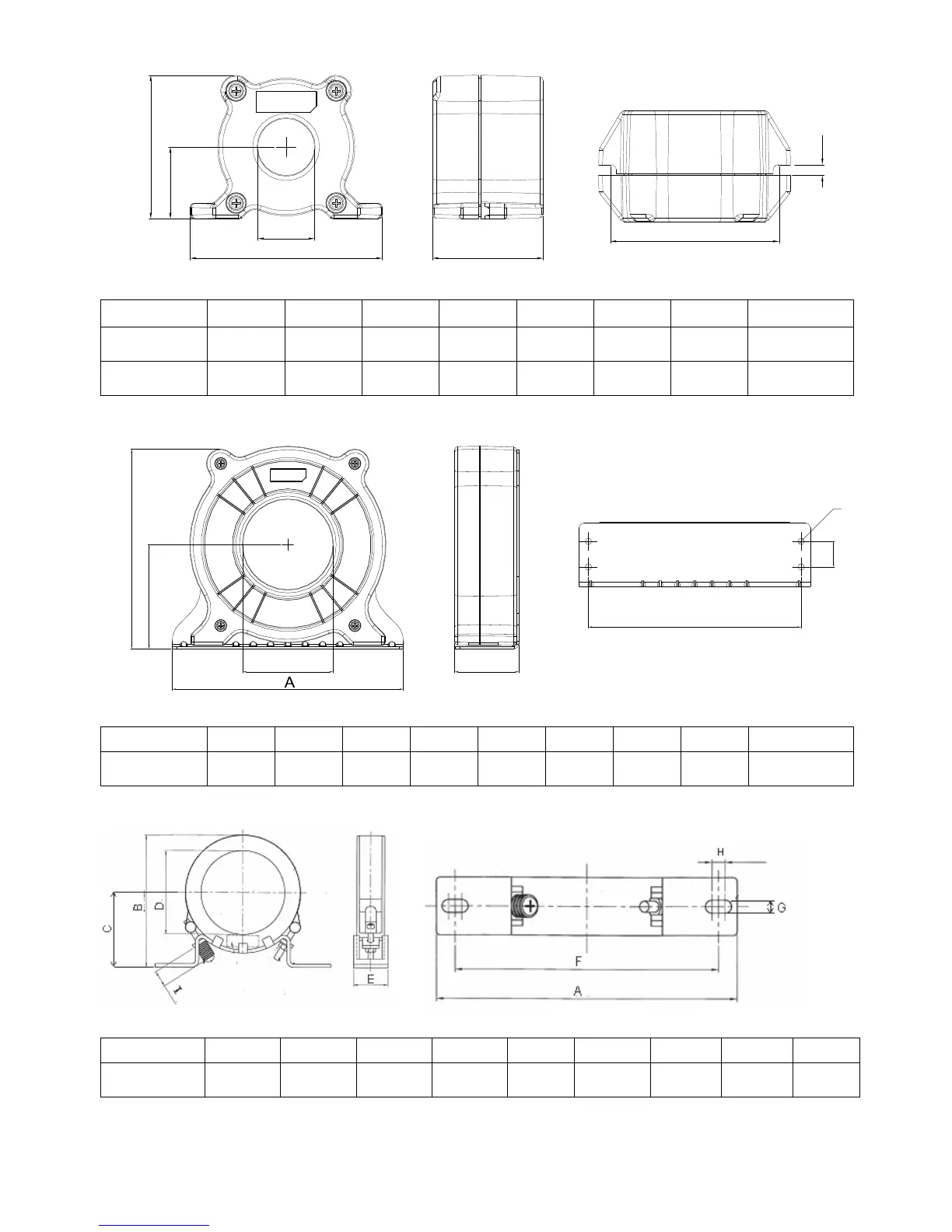

Unit: mm [inch]
Model A B C D E F
G(Ø) Torque
RF008X00A
98
[3.858]
73
[2.874]
36.5
[1.437]
29
[1.142]
56.5
[2.224]
86
[3.386]
5.5
[0.217]
< 10kgf/cm
2
RF004X00A
110
[4.331]
87.5
[3.445]
43.5
[1.713]
36
[1.417]
53
[2.087]
96
[3.780]
5.5
[0.217]
< 10kgf/cm
2
D
B
C
E
F
H
G
Unit: mm [inch]
Model A B C D E F G(Ø) H Torque
RF002X00A
200
[7.874]
172.5
[6.791]
90
[3.543]
78
[3.071]
55.5
[2.185]
184
[7.244]
5.5
[0.217]
22
[0.866]
<45kgf/cm
2
Unit: mm [inch]
Model A B C D E F G(Ø) H I
RF300X00A
241
[9.488]
217
[8.543]
114
[4.488]
155
[6.102]
42
[1.654]
220
[8.661]
6.5
[0.256]
7.0
[0.276]
20
[0.787]
Table 7-56
Table 7-57
Table 7-58

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
