Delta C2000 Series User Manual

Chapter 1 IntroductionC2000
1-12

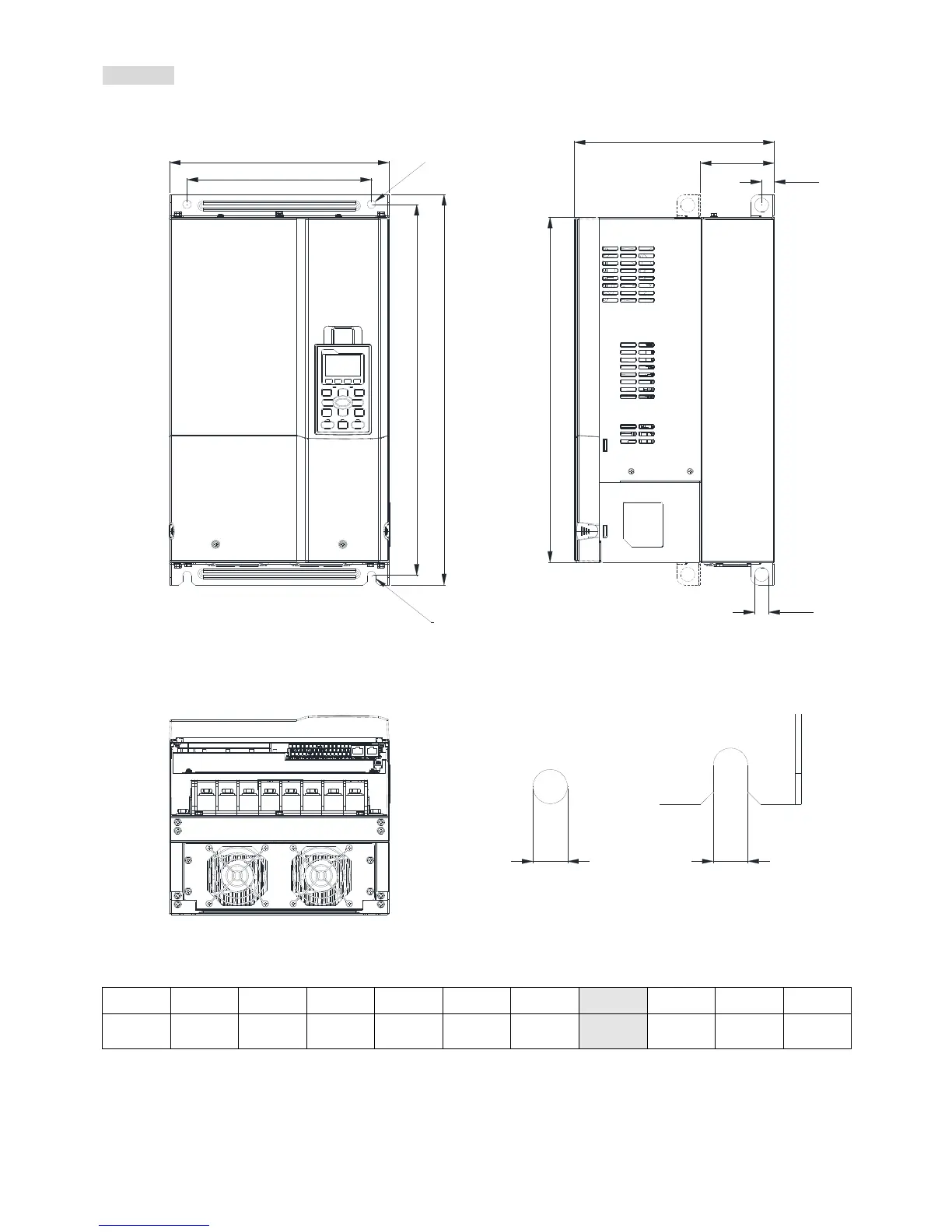

Frame D0
D0-1: VFD370C43S; VFD450C43S
SEE DETAIL B
DETAIL A
(MOUNTING HOLE)
D
H1
SEE DETAIL A
DETAIL B
(MOUNTING HOLE)
D1
S1
H2
W
S2
S1
H3
W1
D2
Figure 1-18
Unit: mm [inch]
Frame W H1 D W1 H2 H3 D1* D2 S1 S2
D0-1
280.0
[11.02]
500.0
[19.69]
255.0
[10.04]
235.0
[9.25]
475.0
[18.70]
442.0
[17.40]
94.2
[3.71]
16.0
[0.63]
11.0
[0.43]
18.0
[0.71]
D1*: Flange mounting
See Detail A
See Detail B
Detail A
(Mounting Hole)
Detail B
(Mounting Hole)
