Chapter 8 Option CardsC2000
8-25

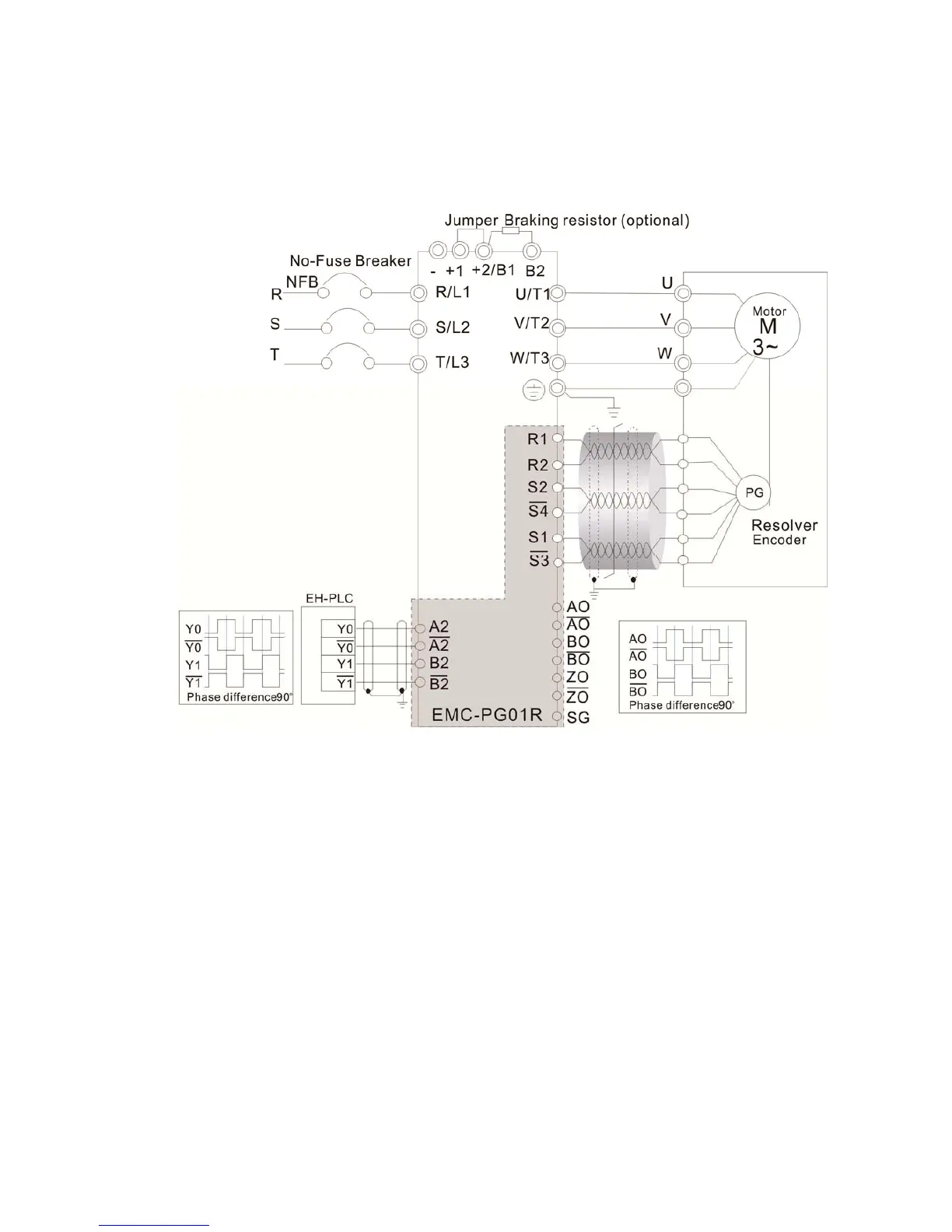

8-10-2 EMC-PG01R Wiring Diagram
Please use a shielded cable to prevent interference. Do not run control wires parallel to any
high voltage AC power line (200 V
AC
and above).
Recommended wire size 0.21–0.81mm
2
[AWG24–AWG18].
Cable length: PG1 input, less than 30m; PG2 single-phase input, less than 30m/ 2-phase input,
less than 100m
