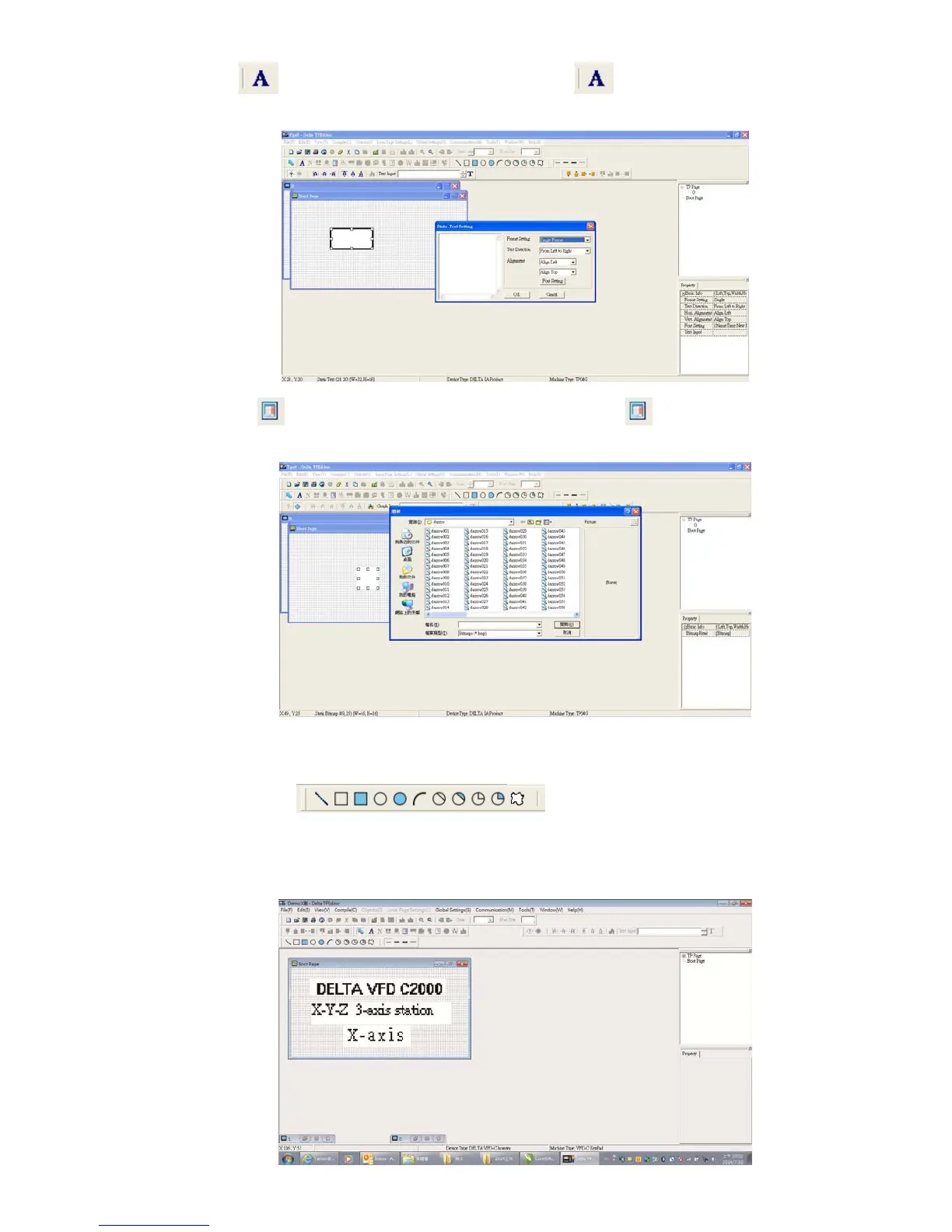

5. Static Text . Open a blank page, click once on this button , and then double click on that blank
page. The following window will pop up.
6. Static Bitmap
Open a blank page, then click once on this button and then double click on that
blank page. The following window will pop up.
Please note that Static Bitmap setting supports only images in BMP format. Now choose an image that
you need and click open, then that image will appear in the Static Bitmap window.
7. Geometric Bitmap
 As shown in the picture on the left, there are
11 kinds of geometric bitmap to choose. Open a new blank page then click once on a geometric bitmap
icon that you need. Then drag that icon and enlarge it to the size that you need on that blank page.
8. Finish editing the keypad starting screen and select Communication>Input User Defined Keypad
Starting Screen.
