Delta C2000 Series User Manual

Chapter 10 Digital KeypadC2000
10-29
2) Edit Main Page & Example of Download

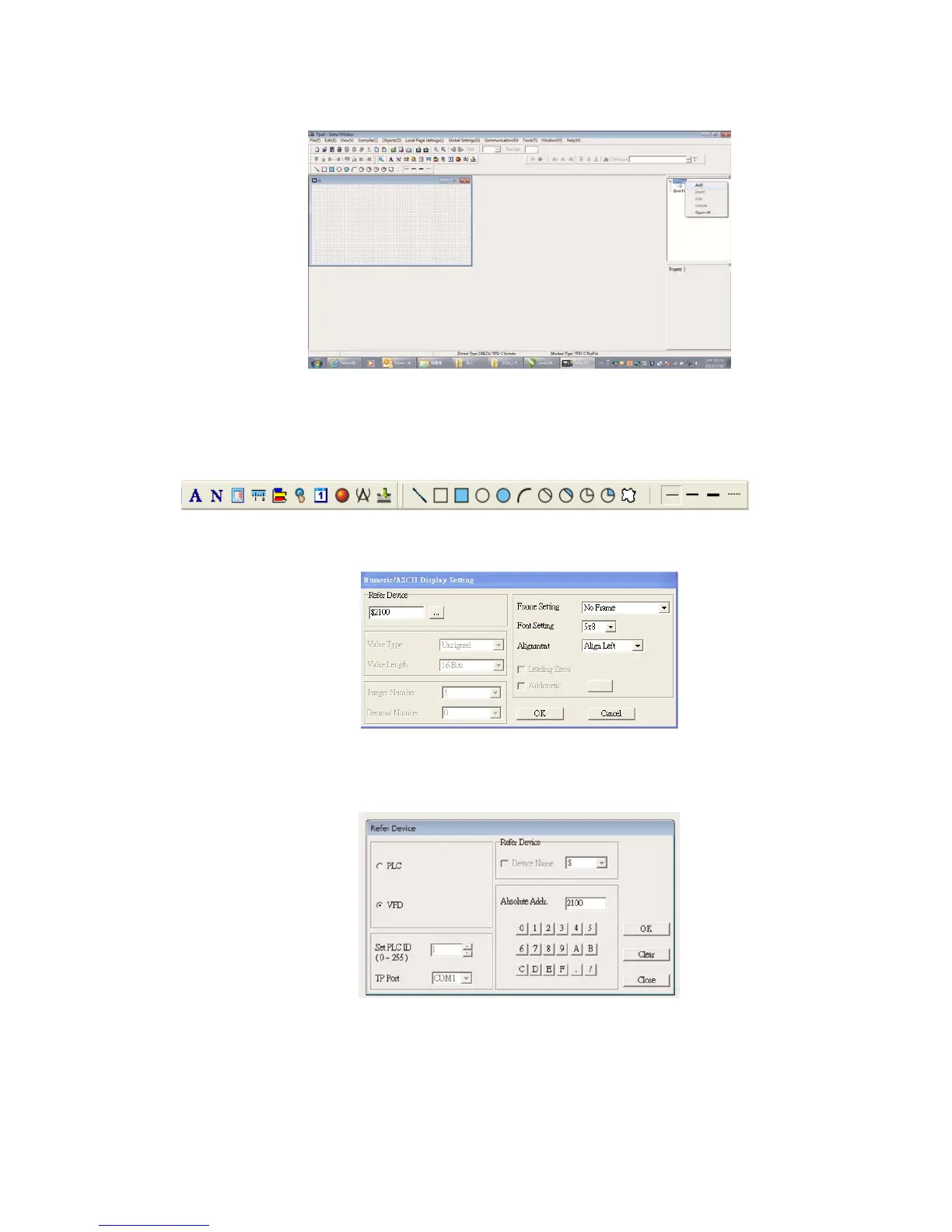

1. Go to editing page, select Edit > Add one page or press the button ADD on the right hand side of the HMI
page to increase number of pages to edit. This keypad currently supports up to 256 pages.
2. On the bottom right-hand corner of the HMI, click on a page number to edit or go to VIEW > HMI page to
start editing main page. As shown in the image, the following objects are available. From left to right:
Static Text, ASCII Display, Static Bitmap, Scale, Bar Graph, Button, Clock Display, Multi-state bit map,
Units, Numeric Input and 11 geometric bitmaps and lines of different width. The application of Static Text,
Static Bitmap, and geometric bitmap is the same as the editing startup page.
3. Numeric / ASCII Display: To add a Numeric / ASCII Display object to a screen, double click on the object
to set up Related Devices, Frame Setting, Fonts and Alignment.
Related Device: Choose the VFD Communication Port that you need, if you want to read output
frequency (H), set the VFD Communication Port to $2202. For other values, please refer to ACMD
ModBus Comm Address List.

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
