Delta C2000 Series User Manual

Chapter 10 Digital KeypadC2000
10-31
6. Button : Currently this function only allows the Keypad to switch pages, other functions are not yet
available. Text input function and Image inserted functions are not yet supported.
Double click on
to open set up window.

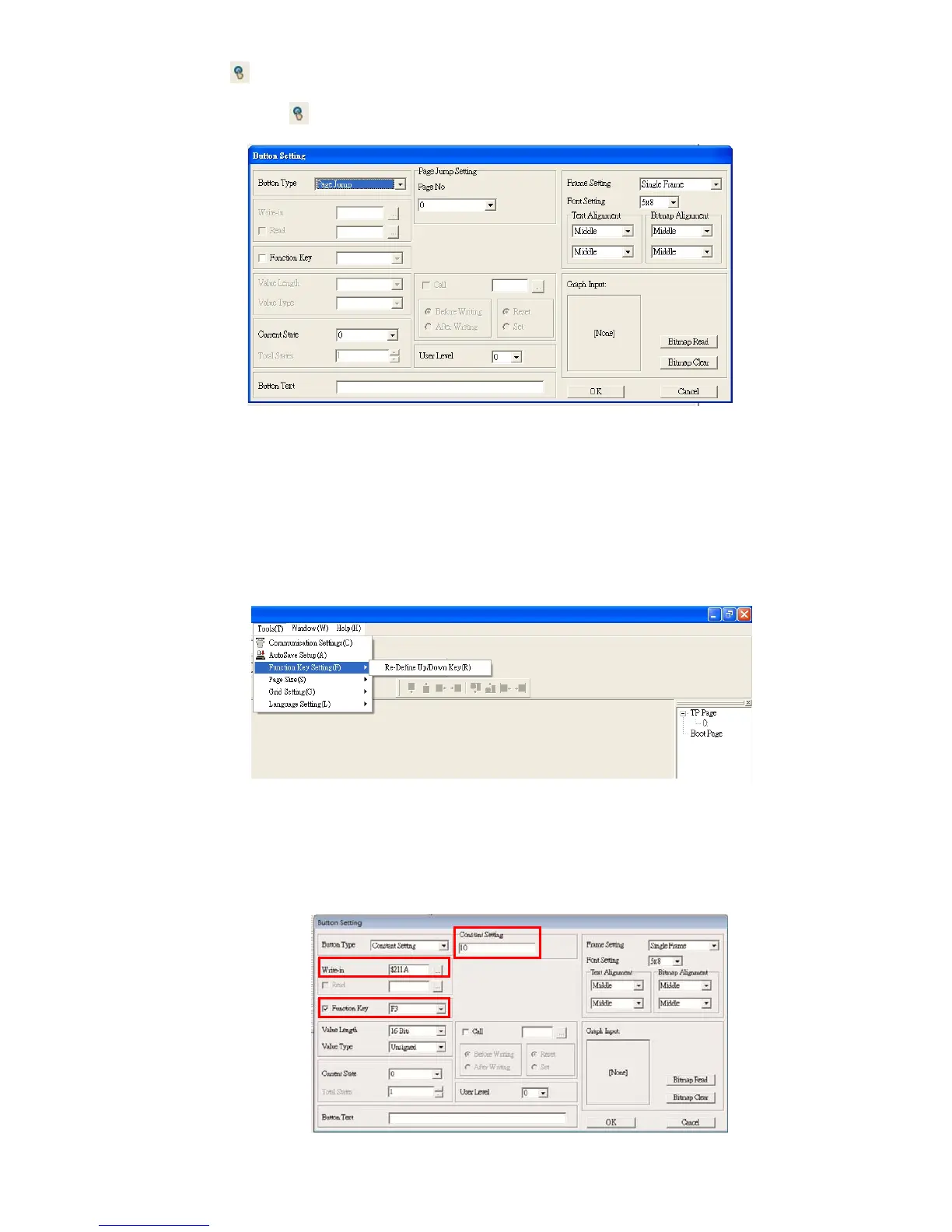

<Button Type> allows users set up buttons’ functions. <Page Jump> and <Constant Setting> are the only
two currently supported functions.
A. [Page Jump] function setting
 Page Jump setting: After you choose the Page Jump function in the drop down list, you will see this
Page Jump Setting Menu
 <Function Key> allows you to assign functions to the following keys on the KPC-CC01 keypad: F1,
F2, F3, F4, Up, Down, Left and Right. Please note that the Up and Down keys are locked by
TPEditor. These two keys cannot be programmed. If you want to program Up and Down keys, go to
ToolFunction Key Settings (F) Re-Define Up / Down Key (R).
 Button Text: This function allows user to name buttons. For example, key in <Next Page> in the
empty space, a button will have the wording <Next Page> displayed on it.
B. [Constant setting] function
This function is to set up the memory address’ value of the VFD or PLC. When pressing the <function
button> set up in before, a value will be written to the memory address of the <Constant Setting>. This
function can be used as initializing a variable.

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
