Delta C2000 Series User Manual

Chapter 3 UnpackingC2000
3-8
Frame F

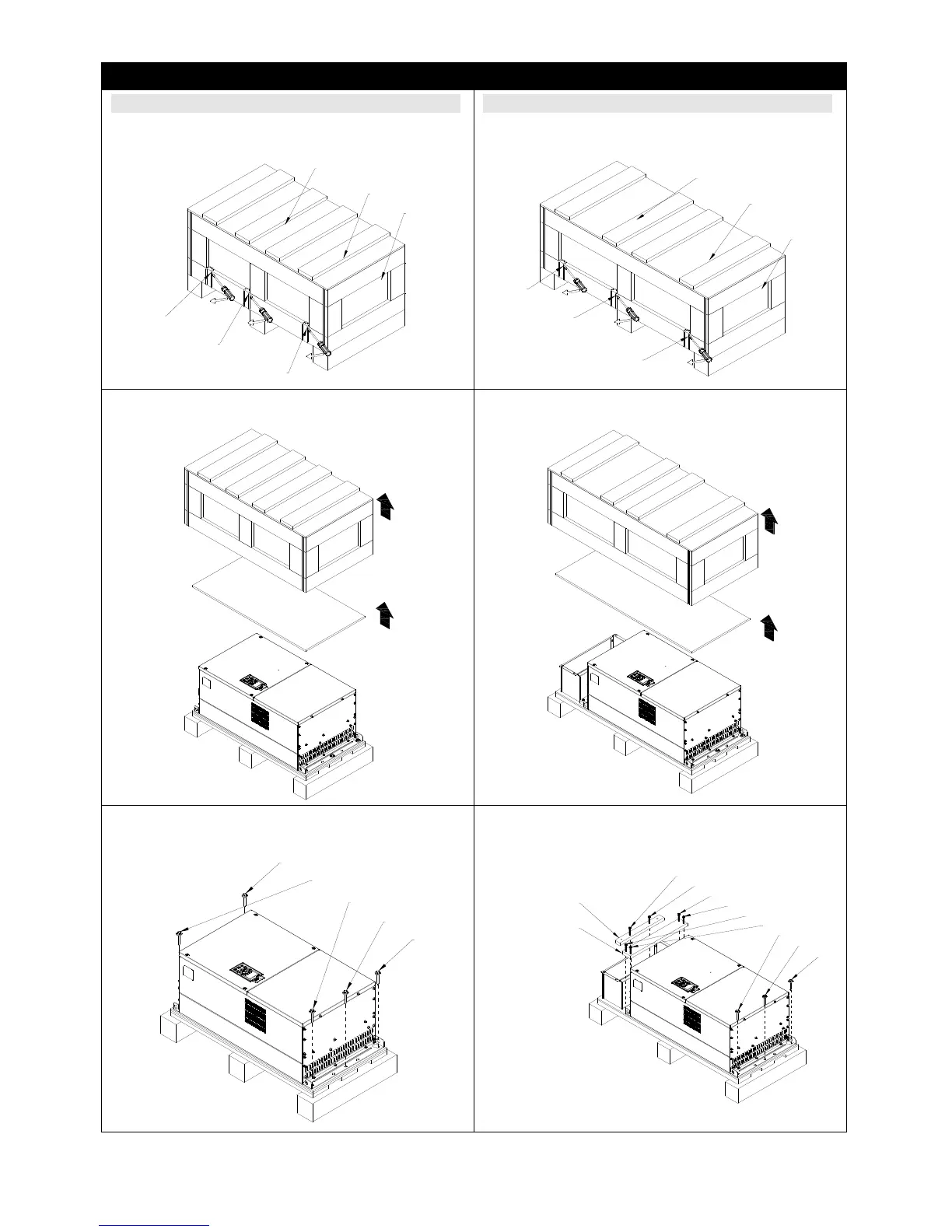

Unpacking 1 (VFDXXXCXXA, VFDXXXC63B-00) Unpacking 2 (VFDXXXCXXE, VFDXXXC63B-21)
Remove the six buckles fixed on the crate with a
flat-head screwdriver, see the figure below.
1
2
3
6
5
4
Remove the six buckles fixed on the crate with a
flat-head screwdriver, see the figure below.
6
5
4
1
2
3
Remove the top cover, take out the EPEs and the
manual.
Remove the top cover, take out the EPEs, rubber
and the manual.
Loosen the five screws fasten the drive on the
pallet, see the figure below.
1
2
3
4
5
Loosen the five screws fasten the drive on the
pallet, and then remove the wood plates.
1
2
3
4
5
6
7
8
9
wood plate1
wood plate2
Figure 3-23
Figure 3-24
Figure 3-25
Figure 3-27
Figure 3-28
Figure 3-29

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
