Delta C2000 Series User Manual

Chapter 5 Main Circuit TerminalsC2000
5-9

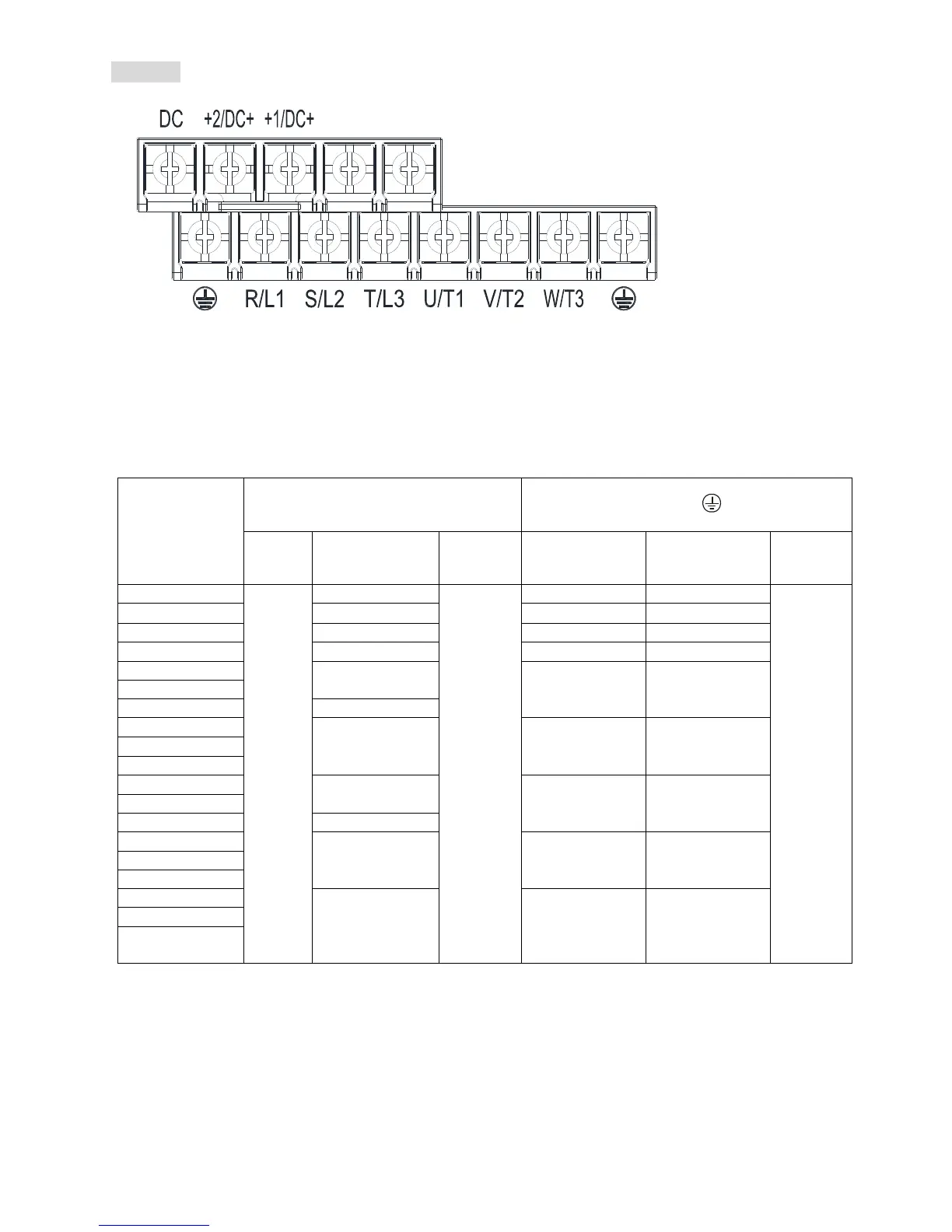

Frame A
B1
-
B2
 If you install at Ta 50°C environment, please select copper wire with voltage rating 600V and
temperature resistant 75°C or 90°C.
 If you install at Ta 50°C above environment, please select copper wire with voltage rating 600V and
temperature resistant at 90°C or above.
 For UL installation compliant, please use copper wires for installation, the wire gauge is based on
temperature resistant at 75°C which is requested and recommended from UL. Do not reduce the
wire gauge when using higher temperature wire.
Model Name
Main Circuit Terminals
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3, DC+, DC,
B1, B2
Terminal
Max. Wire
Gauge
Min. Wire Gauge
Screw Spec.
and Torque
(±10%)
Max. Wire Gauge Min. Wire Gauge
Screw Spec.
and Torque
(±10%)
VFD007C23A
10 mm
2
[8 AWG]
2.5 mm
2
[14 AWG]
M4
20kg-cm
[17.4 lb-in.]
[1.96Nm]
2.5 mm
2
[14 AWG] 2.5 mm
2
[14 AWG]
M4
20kg-cm
[17.4 lb-in.]
[1.96Nm]
VFD015C23A
4.0 mm
2
[12 AWG]
4.0 mm
2
[12 AWG] 4.0 mm
2
[12 AWG]
VFD022C23A
6.0 mm
2
[10 AWG]
6.0 mm
2
[10 AWG] 6.0 mm
2
[10 AWG]
VFD037C23A
10.0 mm
2
[8 AWG]
10.0 mm
2
[8 AWG] 10.0 mm
2
[8 AWG]
VFD007C43A
1.5 mm
2
[16 AWG]
2.5 mm
2
[14 AWG] 2.5 mm
2
[14 AWG]
VFD015C43A
VFD022C43A
2.5 mm
2
[14 AWG]
VFD037C43A
6.0 mm
2
[10 AWG] 6.0 mm
2
[10 AWG] 6.0 mm
2
[10 AWG]
VFD040C43A
VFD055C43A
VFD007C43E
1.5 mm
2
[16 AWG]
2.5 mm
2
[14 AWG] 2.5 mm
2
[14 AWG]
VFD015C43E
VFD022C43E
2.5 mm
2
[14 AWG]
VFD037C43E
6.0 mm
2
[10 AWG] 6.0 mm
2
[10 AWG] 6.0 mm
2
[10 AWG]
VFD040C43E
VFD055C43E
VFD015C53A-21
2.5 mm
2
[14 AWG] 2.5 mm
2
[14 AWG] 2.5 mm
2
[14 AWG]
VFD022C53A-21
VFD037C53A-21
-
/
