Delta C2000 Series User Manual

Chapter 16 PLC Function ApplicationsC2000
16-153
Special D
Description of Function
A
ttributes
bit Speed mode Location mode Torque mode Homing mode
D1126 + 10*N
0
Frequency command
arrival
Position command
attained
Torque command
attained
Zero command
completed
RO
1
Clockwise Clockwise Clockwise Clockwise
Counterclockwise: Counterclockwise: Counterclockwise: Counterclockwise:
2 Warning Warning Warning Warning
3 Error Error Error Error
5 JOG
6 Quick Stop Quick Stop Quick Stop Quick Stop
7 Servo ON Servo ON Servo ON Servo ON
D1127 + 10*N Actual frequency
Actual position
(with numbers)
Actual torque
(with numbers)
-
RO
D1128 + 10*N - - -
※ N = 0 – 7

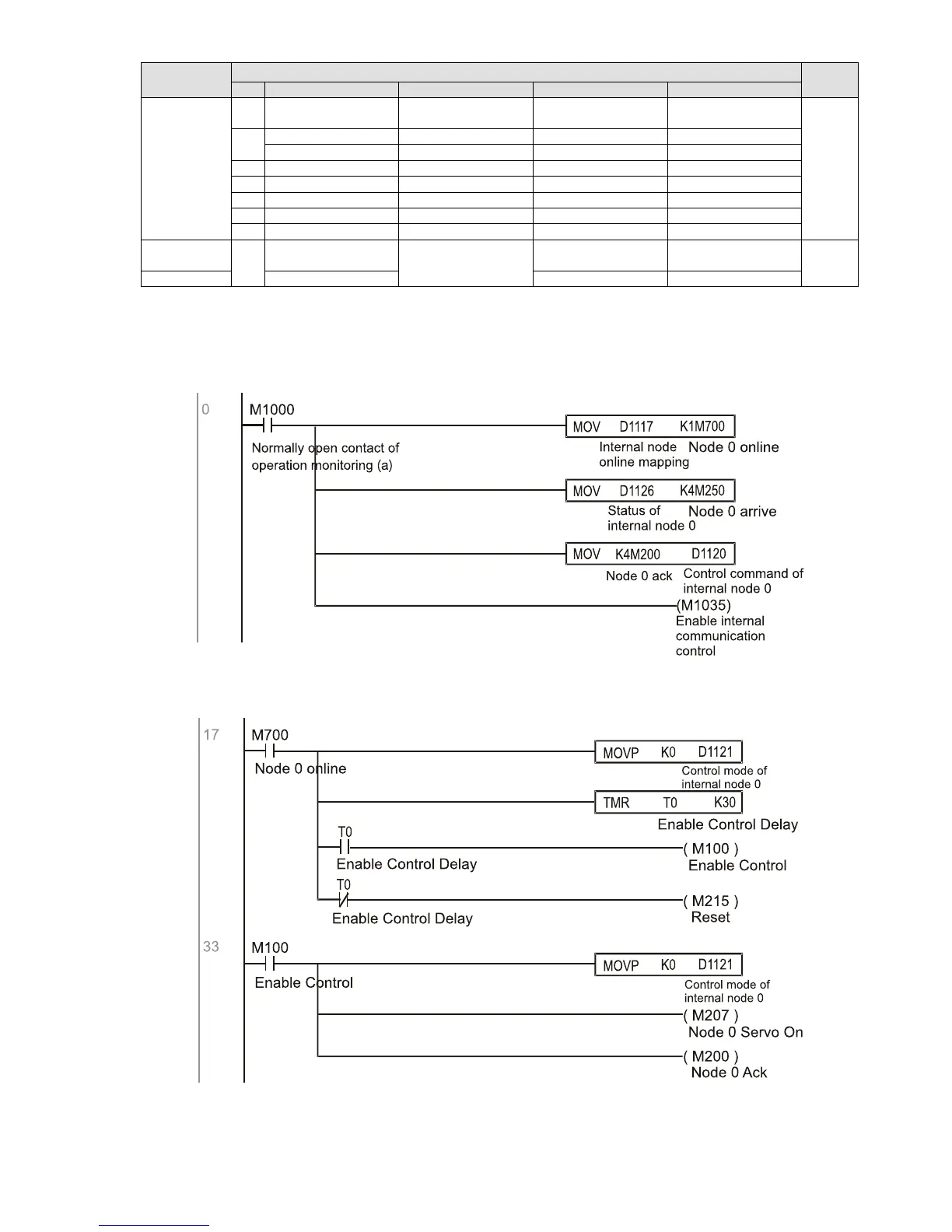

Example: Assume it is desired to control slave station 1 operation at frequencies of 30.00Hz and
60.00 Hz, status, and online node correspondences:
When it is judged that slave station 1 is online, delay 3 sec. and begin control

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
