Chapter 6 Control TerminalsC2000
6-2
Analog input terminals (AVI, ACI, AUI, ACM)
Analog input signals are easily affected by external noise. Use shielded wiring and
keep it as short as possible (<20m) with proper grounding. If the noise is inductive,
connecting the shield to terminal ACM can bring improvement.
When using analog input signal in the circuit, twisted pair is suggested to use for
dealing with weak signal.
If the analog input signals are affected by noise from the AC motor drive, please
connect a capacitor and ferrite core as indicated in the following diagram.
Wind each wires 3 times or more around the core
C
AVI/ACI/AUI
ACM
ferrite core
Figure 6-1

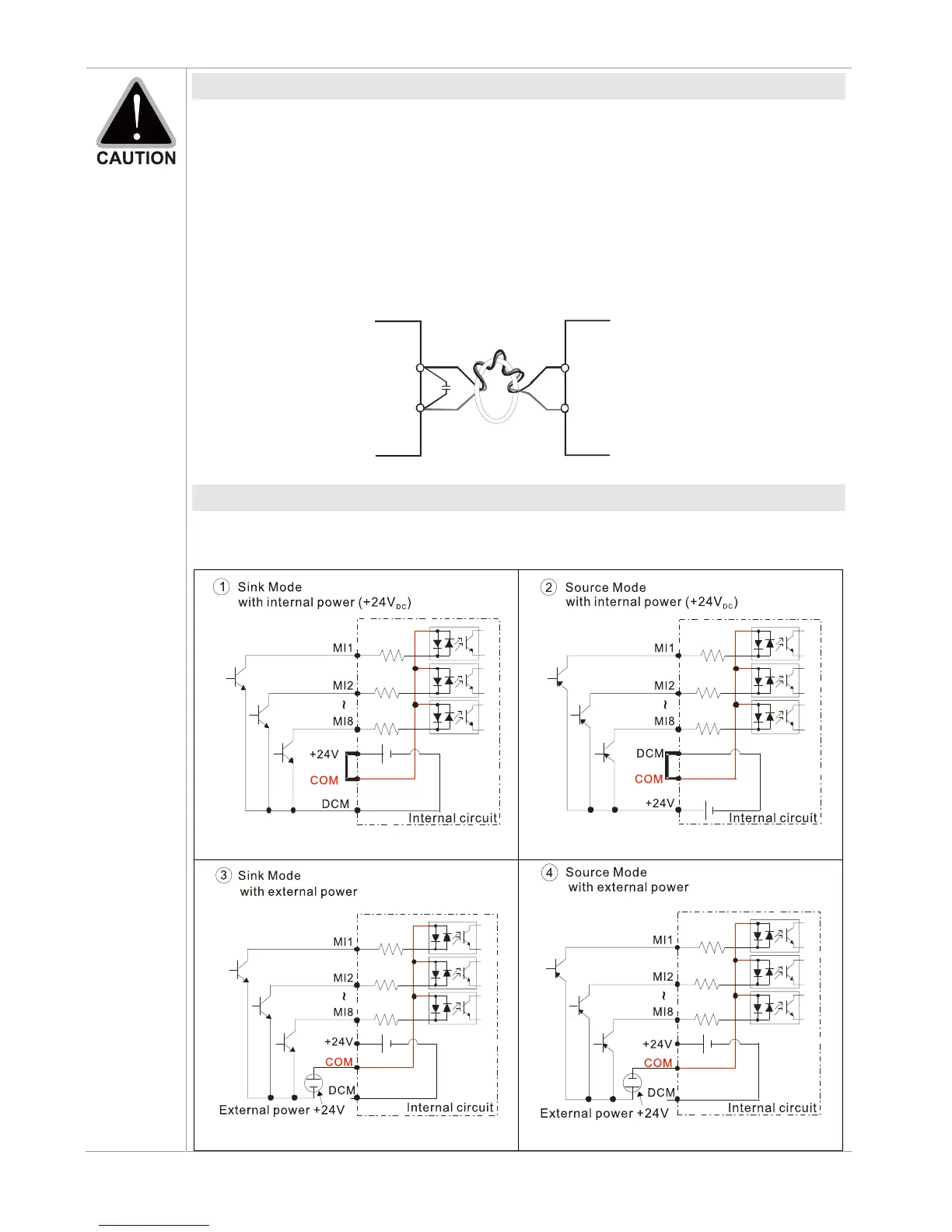

Digital inputs (FWD, REV, MI1–MI8, COM)
The “COM” terminal is the common side of the photo-coupler. Any of wiring method,
the “common point” of all photo-coupler must be the “COM”.
Figure 6-2 Figure 6-3
Figure 6-4 Figure 6-5
To Next Page
