Delta ME300 Series User Manual

Chapter 6 Control TerminalsME300
6-4

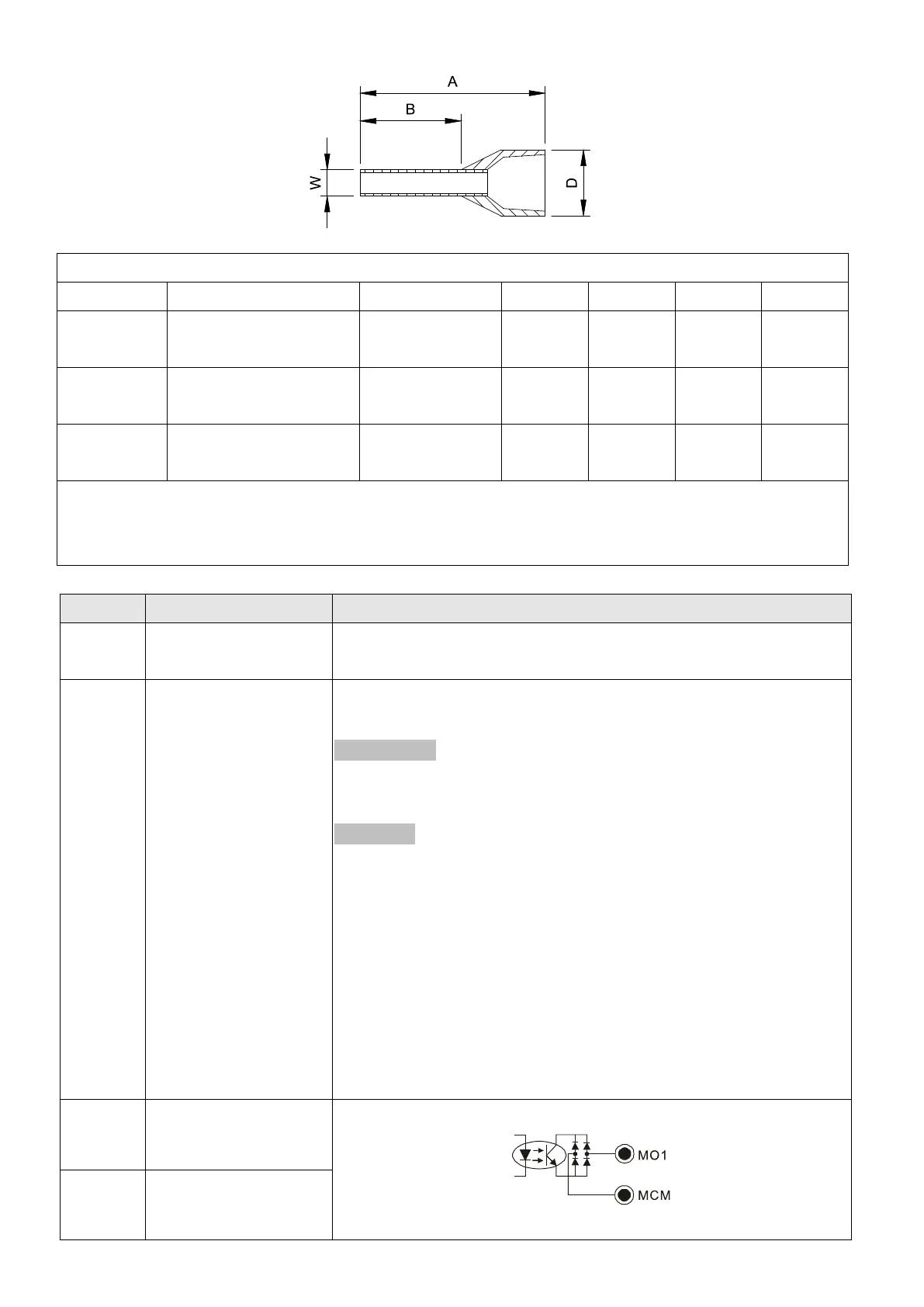

Unit: mm
Recommended model and size of crimp terminals
AWG VENDOR VENDOR P/N A (MAX) B (MAX) D (MAX) W (MAX)
0.25 mm
2
[24 AWG]
PHOENIX CONTACT AI 0,25- 8 YE 12.5 8 2.6 1.1
0.34 mm
2
[22 AWG]
PHOENIX CONTACT AI 0,34- 8 TQ 12.5 8 3.3 1.3
0.5 mm
2
[20 AWG]
PHOENIX CONTACT AI 0,5 - 8 WH 14 8 3.5 1.4
Recommended model and specifications of crimp tool:
CRIMPFOX 10S - 1212045, Manufacturer: PHOENIX CONTACT
DNT13-0101, Manufacturer: DINKLE
Terminals Terminal Function Description
+24 V
DC
Digital control signal
common (Source)
+24 V
DC
± 10% 100 mA
MI1
–
MI5
Multi-function input
1–5
Refer to Pr.02-01–Pr.02-05 to program the multi-function inputs
MI1–MI5.
Source Mode
ON: activation current is 3.3 mA, and breakover voltage
is
11 V
DC
OFF: cut-off voltage ≤ 5 V
DC
Sink Mode
ON: activation current is 3.3 mA, and breakover voltage
is
13 V
DC
OFF: cut-off voltage ≥ 19 V
DC

When Pr.02-00 = 0, MI1 and MI2 can be programmed.

When Pr.02-00 ≠ 0, the function of MI1 and MI2 is according to
Pr.02-00 setting.

When MI5 uses pulse input, the maximum input frequency = 10
kHz.

When MI5 uses PWM pulse input, the maximum input frequency
= 1 kHz.
MO1
Multi-function Output 1
(photo coupler)
Programmable open-collector outputs, see Pr.02-16.
Max 48 V
DC
50 mA
MCM
Multi-function Output
Common

Delta ME300 Series Specifications

General

Power Rating	0.4 kW ~ 110 kW
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Communication	RS-485
Storage Temperature	-20-60°C
Dimensions	Varies by model
Weight	Varies by model
Input Voltage	3-phase 220VAC
Humidity	90% RH, non-condensing
