Delta MS300 - Page 52

MS300/MH300 PROFINET Communication Card CMM-PN02
CMM-PN02 Operation Manual
52
 Non-Periodic Parameter Read/Write Setting of the Motor Drive
Non-Periodic writing:

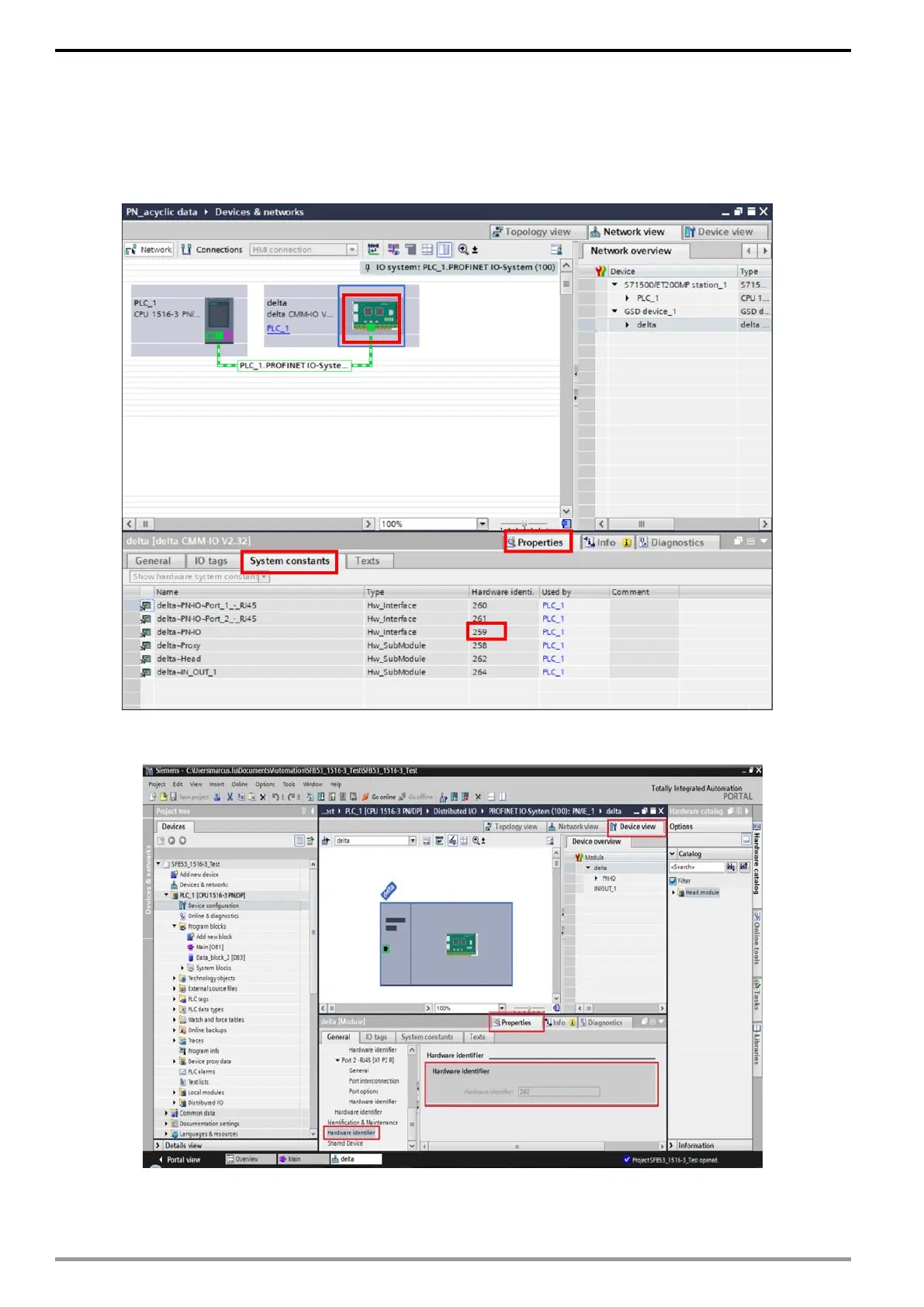

1. As shown in the figure below, first set up the corresponding connection configuration.
Left-click the red box in the figure from top to bottom and record the hardware identifier of the
PN-IO.
NOTE: In the older versions of TIA PORTAL, the ID values of the function blocks above can be read in the
following locations.
