5. Planning the installation
NOTE
This chapter is for illustration purposes only and
is not related to do any real actions.
Some of the actions can be dangerous. Chapter
“6. Installation”, p. 39 describes all actions and
the potential risks in detail.

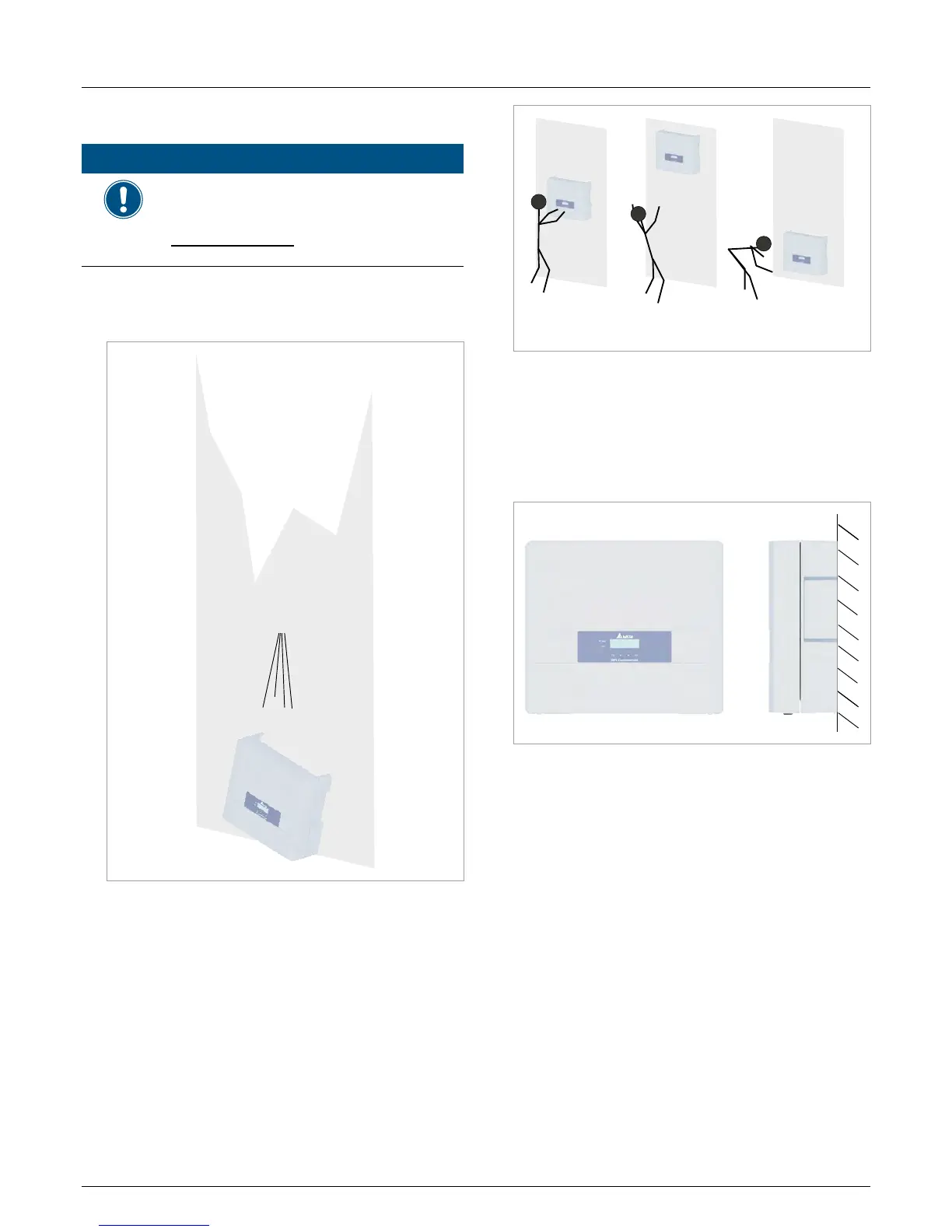

5.1 Where to mount the inverter
Fig. 5.1.: Where to mount the inverter 1
► The inverter is very heavy. The inverter must be lifted and
carried by at least two people.
► Always use the mounting plate supplied with the inverter.
► Check that the wall is capable of bearing the heavy load of
the device.
► Mount the inverter on a reproof wall.
► Use dowels and screws that are suitable for the wall material
and the heavy weight.
► Mount the inverter on a vibration-free wall to avoid disruptive
vibrations.
► Possible noise emissions can be disruptive when the device
is used in living areas or in buildings with animals. Therefore,
choose your installation location carefully.
Fig. 5.2.: Where to mount the inverter 2
► Mount the inverter so that the LEDs and display can be eas-
ily seen and that the buttons can be operated. Make sure the
reading angle and installation height are sufcient.
5.2 Mounting orientation
Fig. 5.3.: Mounting orientation
► Mount the inverter vertically.
