5.8.4 Connecting DC strings to the DC terminals
Check the polarity of the DC voltage before you connect the solar
modules. The negative DC pole of the string is connected to the
DC– connector; the positive DC pole to the DC+ connector.
Check Maximum Reverse Current Capability of your modules
for required safety equipment like fuses.
OFF
ON
DISCONN.
AC/DC
AC OUTPUT DC INPUT
DC 1
+
–
+
–
+
–
+
–
(1)

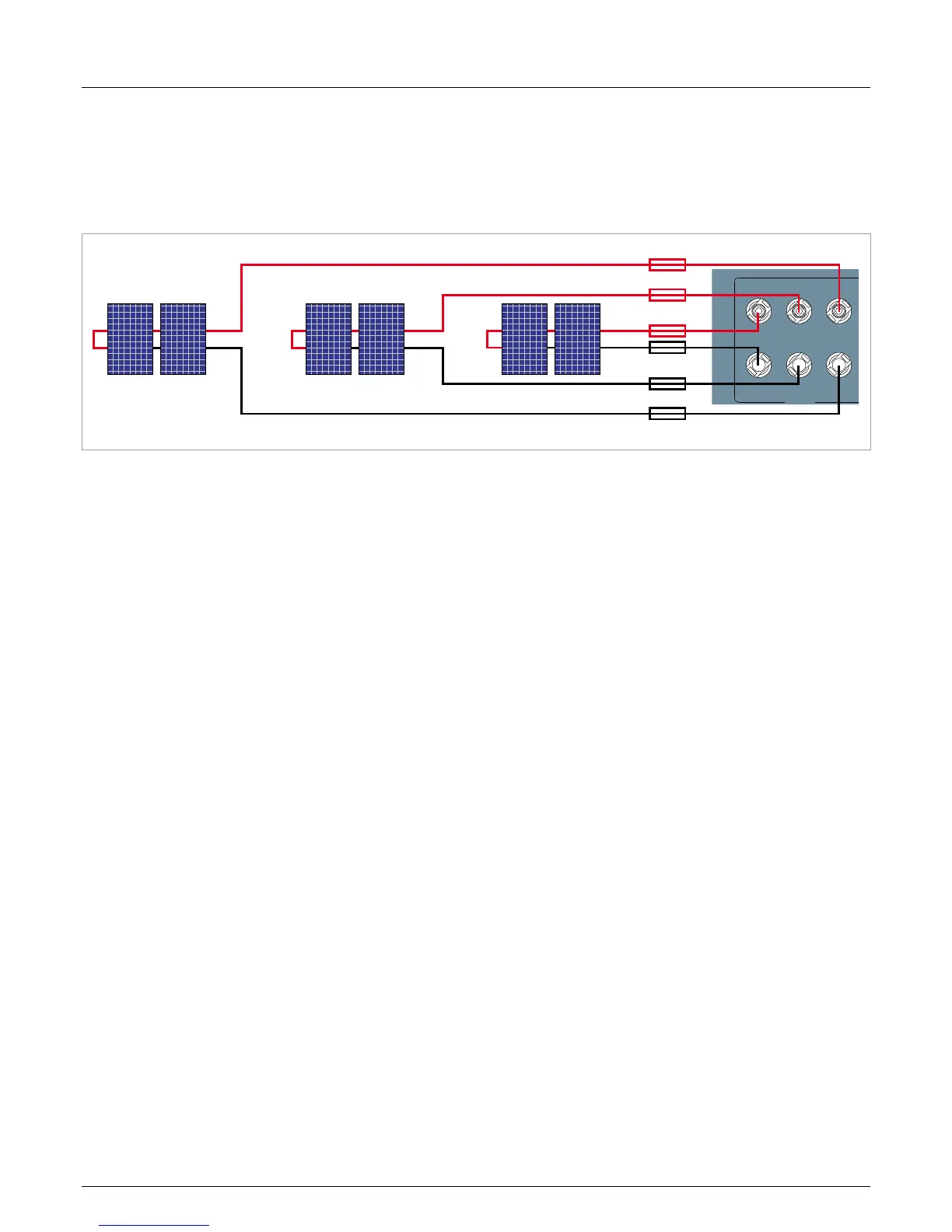

Fig. 5.16: Connecting a single string to each DC terminal
