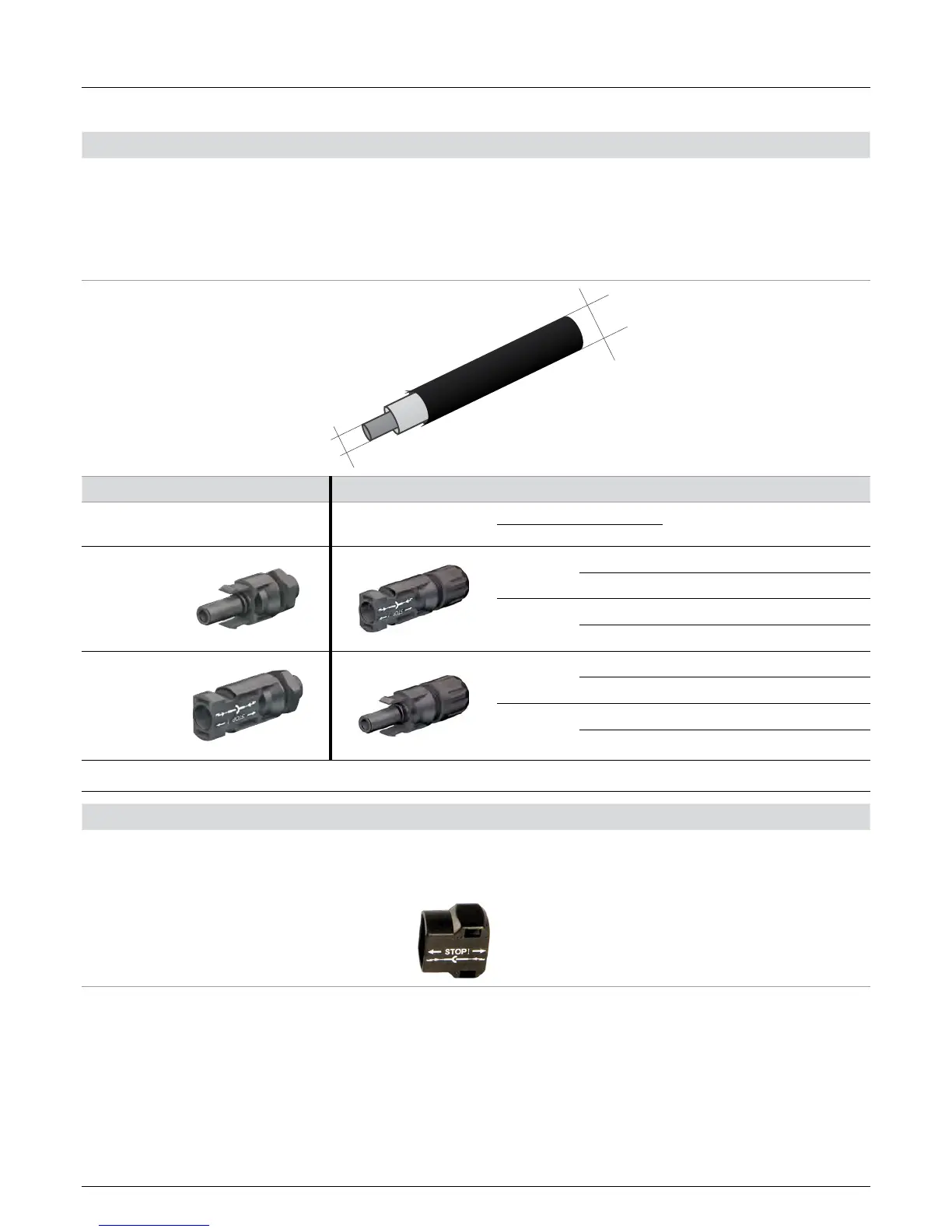

5 Planning the installation
Installation and Operation Manual for RPI M6A M8A M10A inverters V1.0 2016-02-03
36
5.14.3 For connecting the inverter to the solar modules
Part name Quantity Description
DC plugs
M6A/M8A:
2 x female
2 x male
M10A:
3 x female
3 x male
The MC4 plugs are delivered with the inverter. In case you need to choose
different MC4 plugs, follow the description below to select the correct size.
a
b
DC connectors on the inverter Plugs for DC cable
a b
MultiContact
mm
2
mm
DC–
^
1,5 / 2,5
3-6 32.0010P0001-UR
1)
5,5-9 32.0012P0001-UR
4 / 6
3–6 32.0014P0001-UR
5,5-9 32.0016P0001-UR
2)
DC+
1,5 / 2,5
3-6 32.0011P0001-UR
1)
5,5-9 32.0013P0001-UR
4 / 6
3-6 32.0015P0001-UR
5,5-9 32.0017P0001-UR
2)
1)
Delivered with M6A/M8A
2)
Delivered with M10A
Part name Quantity Description
Safety caps
M6A/M8A:
up to 4
M10A:
up to 6
Safety caps secure the DC cables to the DC inputs so that they cannot be
removed without a special tool, an open end spanner.
Safety caps must be used in France. Please check local regulations whether
you have to use safety caps.
