Installation and Operation Manual for RPI M6A M8A M10A inverters V1.0 2016-02-03
6 Installation
6.6 Mounting the inverter
WARNING
Heavy weight
The inverter is heavy, see “13. Technical data”,
p. 113.
► The inverter must be lifted and carried by at
least two people or with an appropriate lifting
equipment.
► Always use the mounting plate delivered with
the inverter.
Read chapter “5. Planning the installation”,
p. 19 before you start installation.

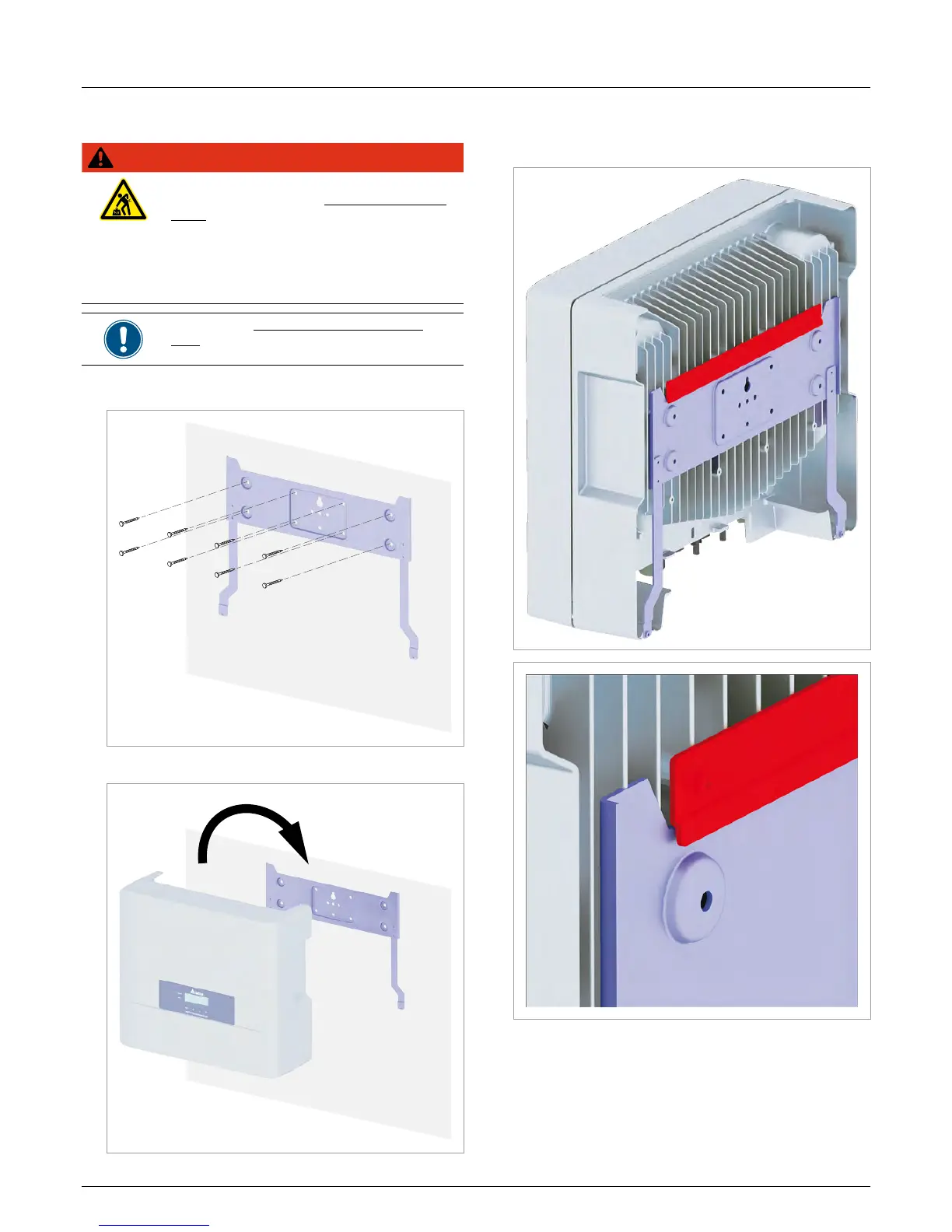

1. Attach the mounting plate with 8 M6 screws to the wall or to
your mounting system.
2. Hang the inverter onto the mounting plate.
3. Check that the rail of the inverter hangs correctly in the
mounting plate.
